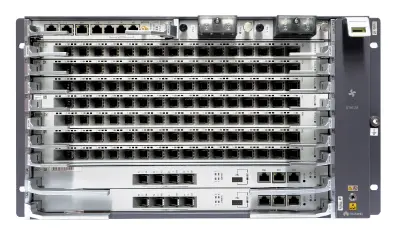

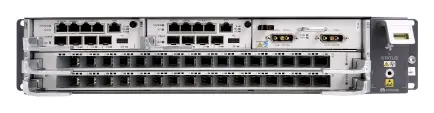

Huawei MA5800-X2 OLT
Model
MA5800-X2Huawei MA5800-X2 OLT: Distributed architecture, Any Port Any Service Flex-PON Solution, Multi-media Gigabit Aggregation, Green and Energy-saving.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Distributed architecture
- Any Port Any Service Flex-PON Solution
- Multi-media Gigabit Aggregation
- Green and Energy-saving
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 34 satır
| Supported cabinet | N63E-22 |
|---|---|
| Board configuration | Control board slots: 3,4; Service board or upstream interface board slots: 1–2; Does not support the universal interface board.; Power board slot: 0 |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 268.7 x 88.1; Including IEC mounting ears: 482.6 x 268.7 x 88.1; Including ETSI mounting ears: 535 x 268.7 x 88.1 |
| Maximum weight (including mounting brackets) | 9.4 kg |
| Maximum input current | DC power supply: 20 A; AC power supply: 8 A |
| Güç Besleme Modu | DC power support (dual backup); AC power supply + battery for backup |
| Working voltage range | DC power supply: –38.4 V to –72 V; AC power supply: 100–240 V |
| Rated voltage | DC power supply: –48 V/–60 V; AC power supply: 110 V/220 V |
| Ortam Sıcaklığı | –40°C to +65°C; The MA5800 can start up at a lowest temperature of –25°C.; NOTE: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
| Altitude | < 4000 m. The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the MA5800 varies with the altitude. |
| Payload switching capacity of the control board (load sharing mode) | MPSA/MPSG: 248 Gbit/s; MPSD: 560 Gbit/s |
| Maximum payload bandwidth per service slot (load sharing mode) | MPSA/MPSG: 248 Gbit/s; MPSD: 560 Gbit/s |
| Maximum payload bandwidth per service slot (load sharing mode) | MPSA/MPSG: 40 Gbit/s; MPSD: 100 Gbit/s |
| Access ONTs | 4096 |
| Multicast users | 4096 |
| Maximum number of MAC addresses | 262143 |
| Maximum number of IPv4 routing tables | 65536 |
| Maximum number of IPv6 routing tables | 16384 |
| Maximum number of ARP tables | 32768 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| System reliability specifications | System availability for the typical configuration: > 99.999%; Mean time between failures (MTBF): about 45 years; NOTE: Due to different network environments and different boards used by devices, the preceding MTBF (45 years) of the MA5800 is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. |
| Upstream ports (dual control boards for upstream transmission) | MPSA/MPSG: 4 x 10GE/GE + 4 x GE; MPSD-G: 8×10GE/GE |
| GPON ports | 32 |
| XG-PON ports | 32 |
| XGS-PON ports | 32 |
| XG-PON & GPON Comboports | 32 |
| XGS-PON & GPON Combo ports | 32 |
| Symmetric 50G-PON & XGS-PON Combo ports | N/A |
| Symmetric 50G-PON & XGS-PON & GPON Combo ports | N/A |
| GE/FE ports | 96 |
| 10GE/2.5GE/GE ports | N/A |
| 10GE/GE ports | 16 |
Genel bakış
Huawei MA5800-X2 kullanım alanları ve özellikleri.
The MA5800 multi-service access device is a 4K/8K/VR-ready OLT in the gigabit ultra-broadband era. It supports the PON/10G PON/50G PON/GE/10GE shared platform. The MA5800 adopts the distributed architecture and supports multi-media gigabit aggregation, optimal 4K/8K/VR video experience, multi-service virtualization sharing platform, and smooth evolution to 50G PON.
Distributed architecture
Industry's first distributed architecture OLT with separated control and forwarding • High service throughput, 200Gbps per slot • ISSU without service interruption
Any Port Any Service Flex-PON Solution
Smoothly upgrade and evolution from GPON to XG(S)-PON • Upgrade on demand to save costs
Multi-media Gigabit Aggregation
Unified access and aggregation of optical fibers, copper lines, and cable media • Simplified network architecture and O&M
Green and Energy-saving
Six-level dynamic energy saving • Smart meters, energy consumption visualization, manageability and optimization • CoC V8 Certification
Nerelerde kullanılır?
FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.
