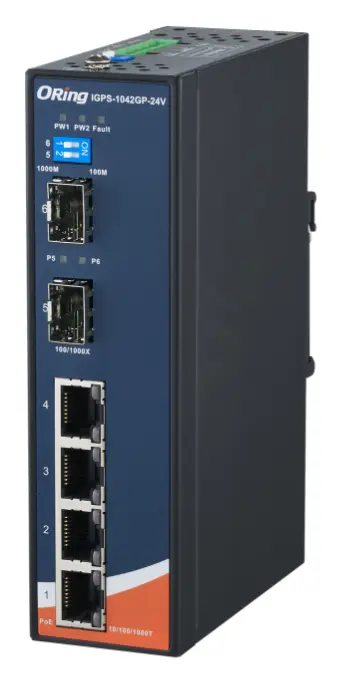

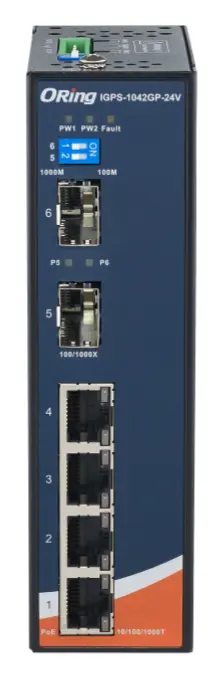

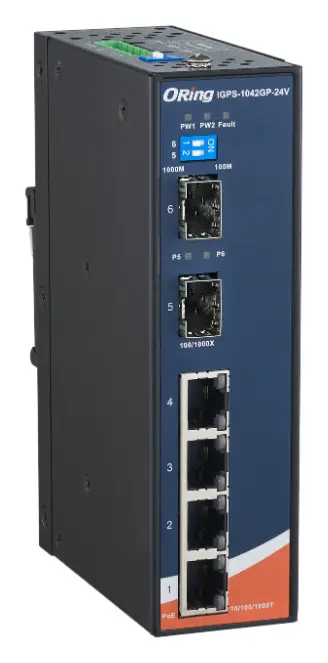

ORing IGPS-1042GP-24V 4GE PoE + 2G SFP Ethernet Switch, IEEE 802.3af/at, 24VDC Endüstriyel Yönetilemez PoE Switch

ORing IGPS-1042GP-24V – 4GE PoE + 2G SFP Unmanaged Ethernet Switch, IEEE 802.3af/at, 24VDC. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilemez PoE Switch ailesinde yer alır.

Temel Özellikler (Features)

• 4 x Gigabit PoE+ Ports: IEEE 802.3at compliant, delivering up to 30W per port
• 120W Total PoE Power Budget: 120W at 24–57VDC or 60W at 12VDC
• 2 x 100/1000Base-X SFP Slots: DIP switch-selectable 100Mbps or 1000Mbps fiber connections
• PoE Power Boost Technology: Supports PoE operation with 24VDC industrial power inputs
• Dual Redundant Power Inputs: Wide 12–57VDC input range with power failure warning and relay output
• Reliable Ethernet Performance: Supports auto-negotiation, auto-MDI/MDI-X, store-and-forward switching, and flow control
• Jumbo Frame Support: Up to 10K bytes
• Industrial-Grade Design: IP30 metal housing with DIN-rail and wall-mounting options
• Wide Operating Temperature: -40°C to 75°C

Genel Bakış (Description)

The IGPS-1042GP-24V is a 6-port unmanaged industrial Gigabit PoE switch featuring 4 x 10/100/1000Base-T(X) PoE+ ports and 2 x 100/1000Base-X SFP slots for flexible fiber connectivity. Compliant with IEEE 802.3at, it delivers up to 30W per PoE port with a total power budget of 120W. Featuring PoE power boost technology , the switch supports dual 12–57VDC power inputs, enabling PoE operation in 24VDC industrial power systems. Dual redundant power inputs and a relay fault output enhance network reliability, while DIP switch-selectable 100/1000Mbps SFP speeds provide flexible fiber connections. Designed for harsh industrial environments, the IGPS-1042GP-24V features an IP30 metal housing, DIN-rail or wall mounting, and a wide operating temperature range of -40°C to 75°C. It is well suited for industrial surveillance, factory automation, and other applications requiring reliable PoE connectivity.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

• 4 x Gigabit PoE+ Ports: IEEE 802.3at compliant, delivering up to 30W per port
• 120W Total PoE Power Budget: 120W at 24–57VDC or 60W at 12VDC
• 2 x 100/1000Base-X SFP Slots: DIP switch-selectable 100Mbps or 1000Mbps fiber connections
• PoE Power Boost Technology: Supports PoE operation with 24VDC industrial power inputs
• Dual Redundant Power Inputs: Wide 12–57VDC input range with power failure warning and relay output
• Reliable Ethernet Performance: Supports auto-negotiation, auto-MDI/MDI-X, store-and-forward switching, and flow control
• Jumbo Frame Support: Up to 10K bytes
• Industrial-Grade Design: IP30 metal housing with DIN-rail and wall-mounting options
• Wide Operating Temperature: -40°C to 75°C
