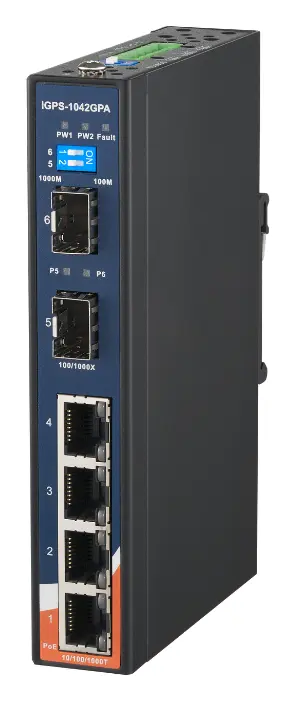

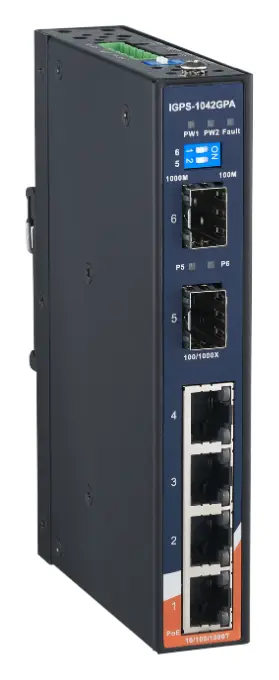

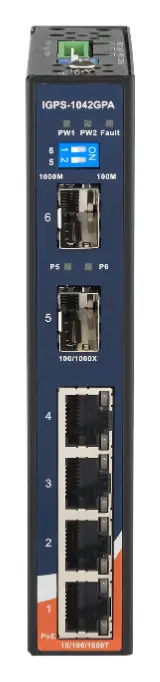

ORing IGPS-1042GPA 4GE PoE + 2G SFP Ethernet Switch, IEEE 802.3af/at Endüstriyel Yönetilemez PoE Switch

ORing IGPS-1042GPA – 4GE PoE + 2G SFP Unmanaged Ethernet Switch, IEEE 802.3af/at. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilemez PoE Switch ailesinde yer alır.

Temel Özellikler (Features)

• 4x 10/100/1000Base-T(X) PoE ports and 2x 100/1000Base-X SFP socket
• Supports P.S.E. based on IEEE 802.3at standard
• Supports store and forward transmission
• Supports flow control
• Rigid IP-30 housing design
• DIN-Rail and wall mounting enabled
• Supports Jumbo Frame up to 10K Bytes

Genel Bakış (Description)

IGPS-1042GPA is a slim type unmanaged PoE switch with P.S.E. function. IGPS-1042GPA supports Power over Ethernet, a system to transmit electrical power, along with data, to remote devices over standard twisted-pair cable in an Ethernet network. IGPS-1042GPA has 4x 10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports, and 2x 100/1000Base-X SFP port. The SFP port optical network speed can be set by changing the settings of the DIP-Switch below. IGPS-1042GPA supports wide range 50~57VDC power inputs and generates 50VDC P.S.E. power output per port. P.S.E. is a device (switch or hub for instance) that will provide power in a PoE setup. The wide operating temperature range from -40°C to 75°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for PoE Ethernet application.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.
