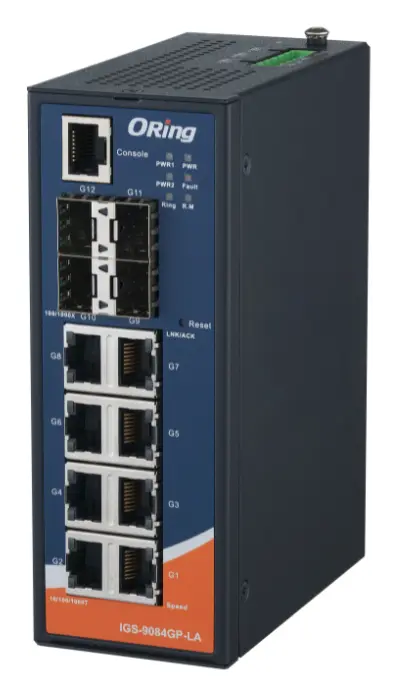

ORing IGS-9084GP-LA 8GE + 4G SFP Cyber-hardened L2 Endüstriyel Yönetilebilir Switch — görsel 3

1 / 3

Endüstriyel Switch IGS-9084 Serisi

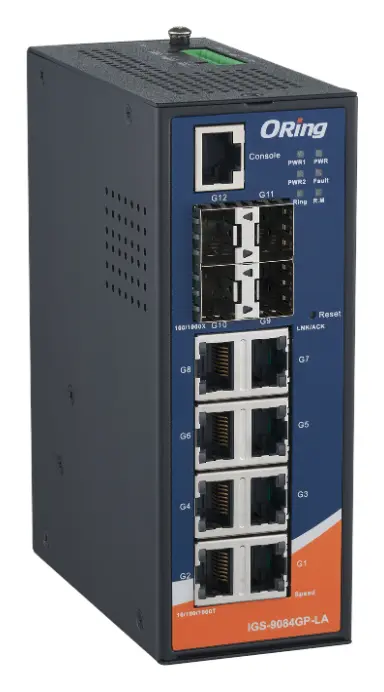

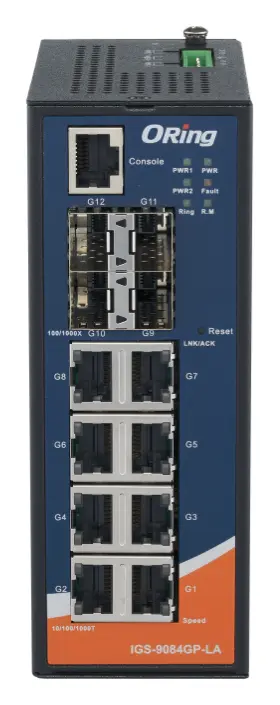

ORing IGS-9084GP-LA 8GE + 4G SFP Cyber-hardened L2 Endüstriyel Yönetilebilir Switch

Q: IGS-9084GP-LA fiyatı ne kadar?

IGS-9084GP-LA için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelIGS-9084GP-LA

ORing IGS-9084GP-LA gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 2 satır

10/100/1000Base-T(X) ports in RJ45	8
100/1000Base-X with SFP port	4

LED Göstergeler 4 satır

Power Indicator (Power)	Green : Power LED x 3
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken.
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred

Güç 4 satır

Güç Tüketimi (Tipik)	13 Watts
Yedekli Güç Girişi	Dual DC inputs. 12~48VDC on 6-pin terminal block
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	54.3 (W) x 108.3 (D) x 145.1 (H) mm (2.13 x 4.26 x 5.71 inches)
Ağırlık (g)	740 g

Teknoloji 9 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.3z for 1000Base-X; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1D for STP (Spanning Tree Protocol); IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link
MAC Adres Tablosu	8k
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 24Gbps; Throughput (packet per second) : 8.928Mpps@64Bytes packet; Max. Number of Available VLANs: 4096; VLAN ID Range : VID 0 to 4095; IGMP multicast groups: 256 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 9.6K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security
Software Features	STP/RSTP/MSTP (IEEE 802.1D/w/s); Redundant Ring (O-Ring) with recovery time less than 20ms over 250 units; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; IGMP Snooping; IP-based bandwidth management; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, security; DHCP Server/Client/Relay; SMTP Client; Modbus TCP; NTP server
Network Redundancy	O-Ring; Open-Ring; O-Chain; MRP; MSTP (RSTP/STP compatible)

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output to carry capacity of 1A at 24VDC

Reset Function 1 satır

Reset Butonu	5 sec: Factory default

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85°C (-40 to 185°F)
Çalışma Sıcaklığı	-40 to 75°C (-40 to 167°F)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5 years

Sertifikalar ve Onaylar 7 satır

EMC	CE EMC (EN 55025, EN 55032), FCC Part 15 B
EMI	EN 55032, CISPR32, EN 61000-3-2, EN 61000-3-3, FCC Part 15 B class A
EMS	IEC/EN 61000-4-2 (ESD); IEC/EN 61000-4-3 (RS); IEC/EN 61000-4-4 (EFT); IEC/EN 61000-4-5 (Surge); IEC/EN 61000-4-6 (CS); IEC/EN 61000-4-8(PFMF)
Darbe Dayanımı	IEC60068-2-27
Serbest Düşme	IEC60068-2-31
Titreşim	IEC60068-2-6
Güvenlik Standardı	UL61010-1

Genel bakış

ORing IGS-9084GP-LA kullanım alanları ve özellikleri.

ORing IGS-9084GP-LA – 8GE + 4G SFP Cyber-hardened Managed L2 Ethernet Switch. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 13 Watts
Yedekli Güç Girişi: Dual DC inputs. 12~48VDC on 6-pin terminal block
Kasa: IP-30
MAC Adres Tablosu: 8k
Jumbo Frame: Up to 9.6K Bytes
Çalışma Sıcaklığı: -40 to 75°C (-40 to 167°F)
Garanti: 5 years

Temel Özellikler (Features)

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Support 9.6K Bytes Jumbo Frame
Syslog/SNMP Trap notification for warning of unexpected event

Genel Bakış (Description)

IGS-9084GP-LA is a managed cyber security switch with 8x 10/100/1000Base-T(X) ports and 4x 100/1000Base-X SFP ports. Developed according to IEC 62443-4-1 and certified compliant with the IEC 62443-4-2 industrial cybersecurity standards. These standards cover product security and secure development life-cycle requirements, enabling our customers to meet compliance requirements for secure industrial network design. With complete support for Ethernet Redundancy protocols such as O-Ring (recovery time < 30ms over 250 units of connection), MSTP (RSTP/STP compatible), G.8032 ERPS, and MRP, it can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. The switch also supports a wide operating temperature range from -40°C to 75°C. In addition to web-based interface, Telnet, and console (CLI) configuration, IGS-9084GP-LA can be centrally managed conveniently via Open-Vision.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Developed according to IEC 62443-4-1 and certified compliant with IEC 62443-4-2
Support O-Ring, O-Chain, ERPS and MRP for Ethernet redundancy
Support Modbus TCP and Ethernet/IP protocol
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support application-based QoS management
Support Device Binding
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Support 9.6K Bytes Jumbo Frame
Syslog/SNMP Trap notification for warning of unexpected event
Support DBU-01 backup unit device to quickly backup/restore configuration
Web-based ,SNMP v1/v2c/v3, Telnet, Console (CLI), and Windows utility (Open-Vision) configuration
Support LLDP Protocol
Robust EMS design, provide 8K ESD and 4KV Surge protection
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled
