RUIJIE · RG-AP680(CD)
Ruijie RG-AP680(CD) Wi-Fi 6 Çift Bant Dış Ortam Access Point
Model
RG-AP680(CD)Ruijie RG-AP680(CD) access point: Industrial-rated design, IP68 rating, 9 kV surge protection, and a wide operating temperature range (–40°C to +65°C), Optical port and electrical port for flexible networking, 2.402 Gbps ultra-fast speed with Wi-Fi 6, Ruijie cloud management, intelligent optim.
- Kablosuz standart
- Wi-Fi 6
- Industrial-rated design, IP68 rating, 9 kV surge protection, and a wide operating temperature range (–40°C to +65°C)
- Optical port and electrical port for flexible networking
- 2.402 Gbps ultra-fast speed with Wi-Fi 6
- Ruijie cloud management, intelligent optimization
Genel bakış
Ruijie RG-AP680(CD) özellikleri ve kullanım alanları.
Recommended for outdoor scenarios such as higher education, wireless city, energy sector, and commercial complexes, delivering good connectivity in the extreme-weather environments at longer distances.

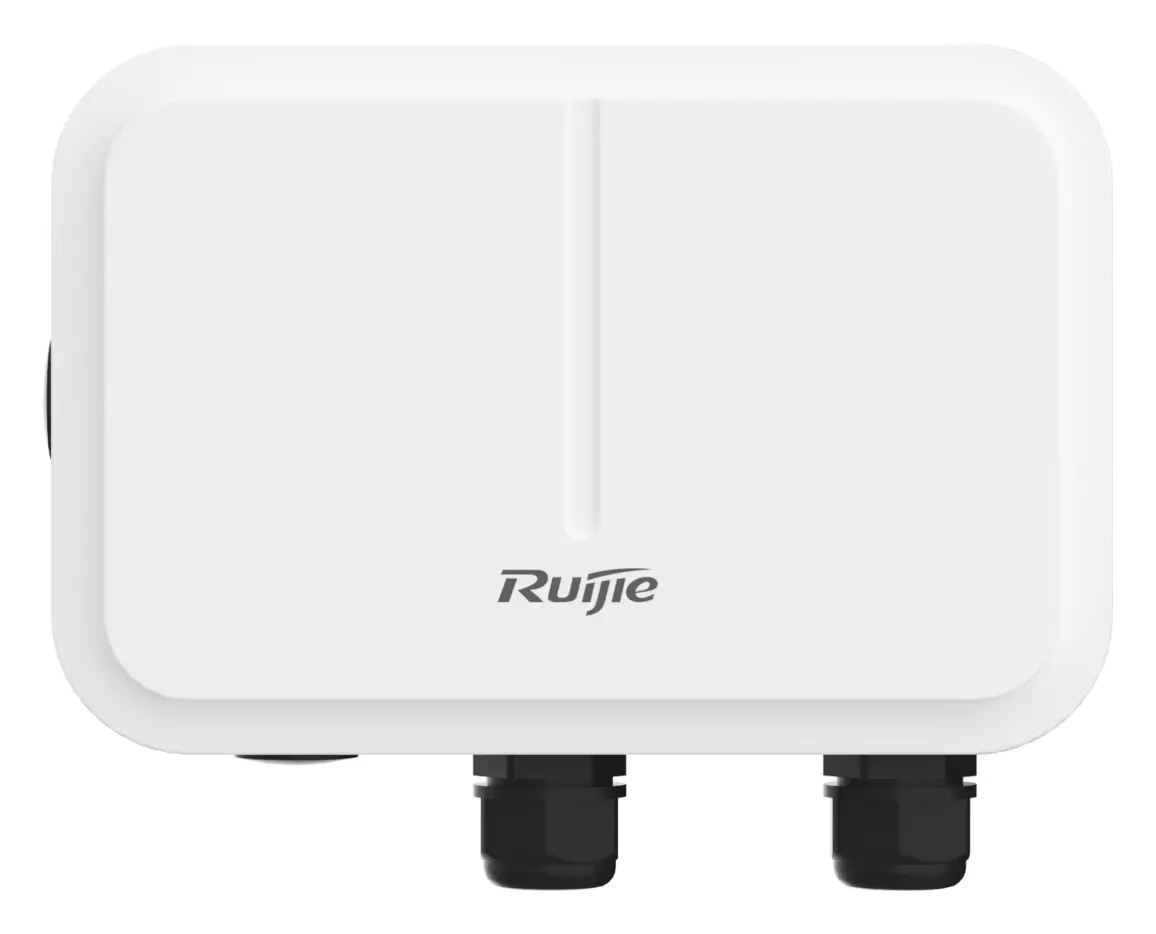

RG-AP680(CD) Outdoor Wireless Access Point
Ports
Dimensions
2.4 GHz/5 GHz and 5 GHz/5 GHz dual-radio design
Max. frame rate 2.402 Gbps
IP68 rating
Bluetooth 5.0
DC and PoE power input

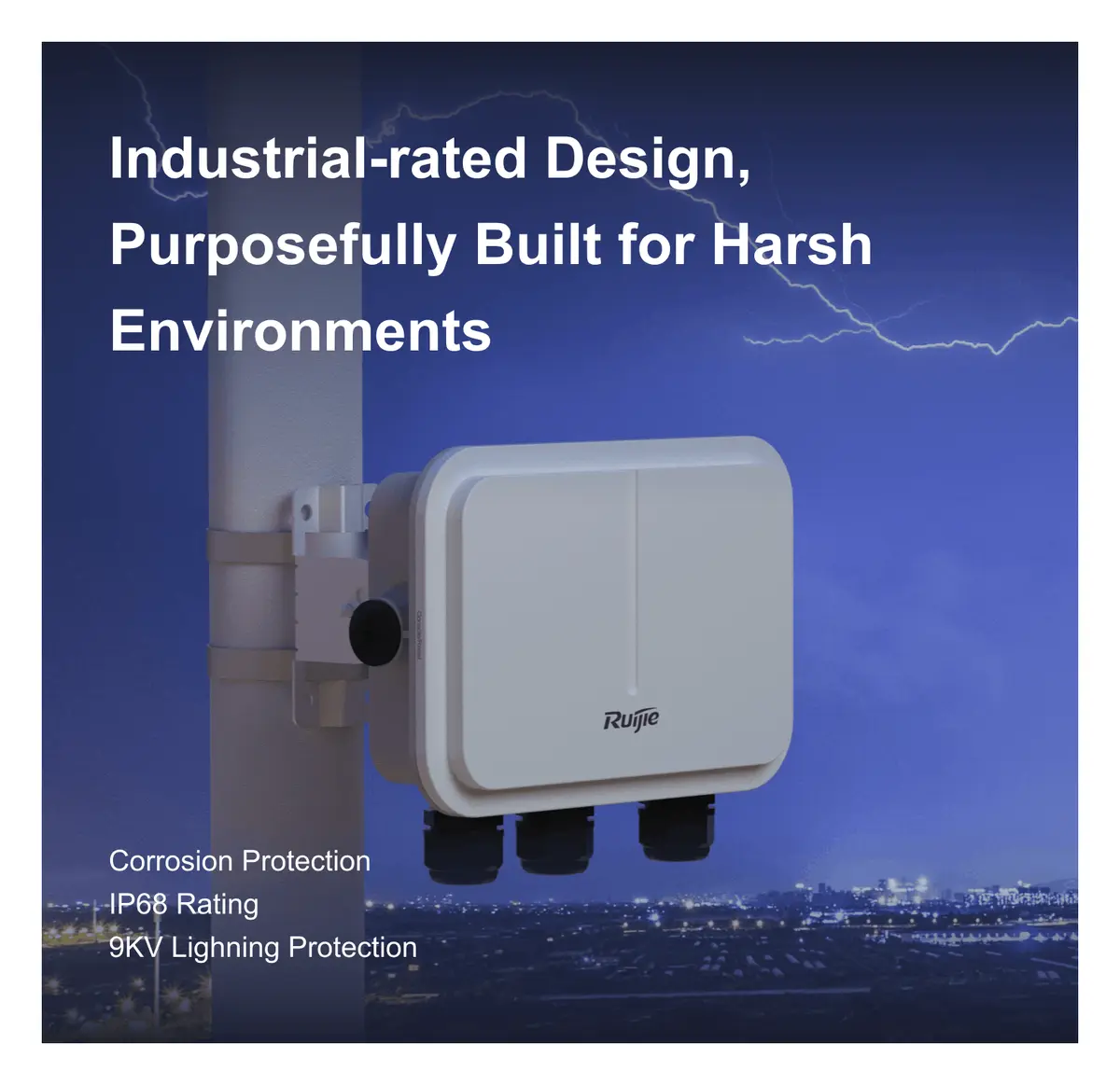

Industrial-rated Design, Purposefully Built for Outdoor Harsh Environments
IP68 Rating
Surge Protection
Wide Operating Temperature Range
The highest protection against solid ingress and water ingress, resisting water, dust and sand.
Built-in high-grade surge protection component that can withstand 9KV surge voltage, ensuring stable operation in thunderstorms.
Withstand extreme variations in temperature from –40℃ to +65℃, ideal for outdoor environments in different regions.

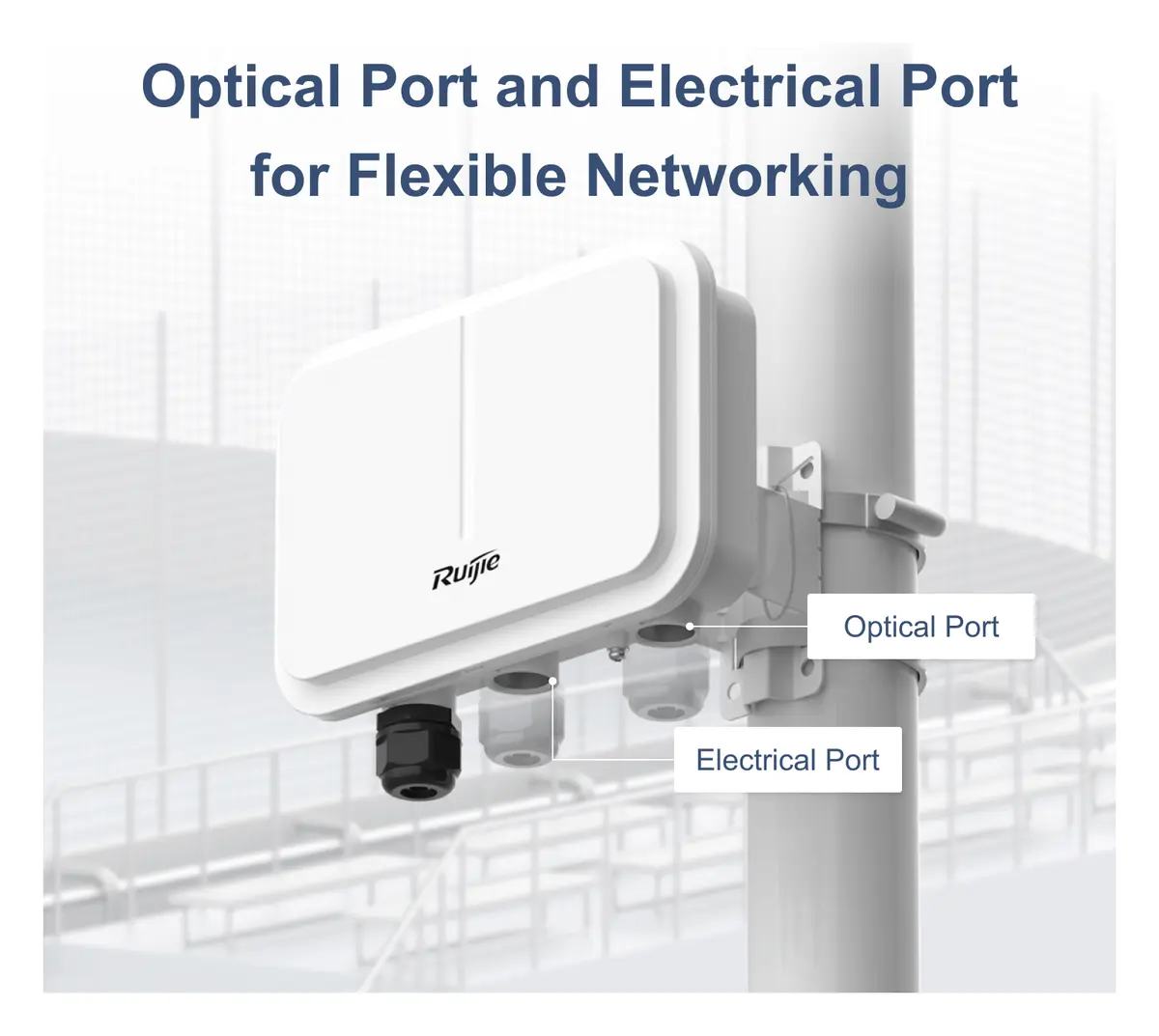

1 Gbps Optical Port and 1 Gbps Electrical Port Deliver Maximum Networking Flexibility
1 Gbps Optical Port
It supports i-Share+ Solution, covering a range of over one kilometer for AP deployment.
1 Gbps Electrical Port
Network cable connection is supported, meeting existing networking requirements.
Ultra-Fast Speed and Capacity with Wi-Fi 6
Hight Concurrency
OFDMA and MU-MIMO technologies are introduced for multi-STA stable connection.
Low Latency
OFDMA supports concurrent data transfer to multiple STAs at a latency as low as 20 ms.
High security
WPA3 is used to dramatically increase wireless security.
High Speed
1024QAM modulation delivers a 25% increase in data rate compared with IEEE 802.11ac.
Cloud, Make Your Business Easy
- Cloud portal authentication
- Remote Wi-Fi management
- Wireless intelligent optimization
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Unit dimensions(W x D x H) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
|---|---|
| Shipping dimensions(W x D x H) | 451 mm x 242 mm x 337 mm (17.76 in. x 9.53 in. x 13.27 in.) |
| Cihaz Ağırlığı | Main unit: 1.17 kg (2.58 lbs); Mounting bracket: 0.2 kg (0.44 lbs) |
| Shipment weight | 5.84 kg (12.87 lbs) |
| Montaj | Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
| Radyo Tasarımı | Dual-radio and up to four spatial streams:; Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2 MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO |
| Çalışma Frekansları | Radio 1: 802.11b/g/n/ax; 2.400 GHz to 2.4835 GHz, channels 1 to 13; Radio 2: 802.11a/n/ac/ax; 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48; 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64; 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140; 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165; Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency |
| Data rates | Combined peak date rate for 2.4 GHz and 5 GHz radios: 1.775 Gbps; Combined peak date rate for 5 GHz and 5 GHz radios: 2.402 Gbps; Radio 1:; 2.4 GHz: 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); 5 GHz: 1.201 Gbps; Two spatial stream Single User (SU) MIMO for up |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 802.11ax: 8.6 to 1,200 (MCS0 to MCS11, |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Anten Tipi | Built-in intelligent antennas |
| Anten Kazancı | 2.4 GHz: 9 dBi; 5 GHz: 9 dBi |
| Maks. Yayın Gücü | 2.4 GHz radio: 28 dBm (25 dBm per chain); 5 GHz radio: 28 dBm (25 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz: 20 dBm; 5.470 GHz to 5.725 GHz: 30 dBm; 5.725 GHz to 5.825 GHz: 30 dBm; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5250-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm; 5725-5850 MHz, EIRP ≤ 30 dBm |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| Modulation types | 802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE80) | MCS0; MCS11 |
| Bluetooth | Bluetooth 5.0 |
|---|---|
| Anten Tipi | Integrated omnidirectional antenna |
| Maks. Anten Kazancı | 4.5 dBi |
| Maks. Yayın Gücü | 10 dBm |
| Alıcı Hassasiyeti | -88 dBm (@BLE) |

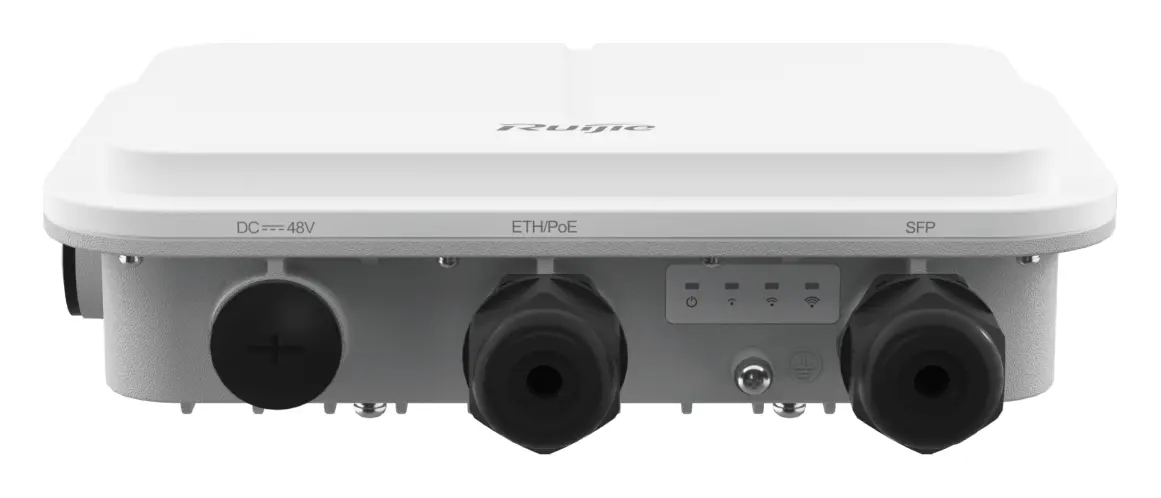

| Sabit Servis Portları | 1 x 10/100/1000BASE-T port, supporting PoE input; 1 x 1GE SFP port |
|---|---|
| Sabit Yönetim Portu | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED; 3 x single-color RSSI LEDs |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Input power supply | The AP supports the following two power supply modes:; 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power adapter needs to be purchased independently.; PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).; Note:; If both DC power and PoE are available, DC power is preferred. |
|---|---|
| Overall power consumption | Maximum power consumption: 12.95 W; DC powered: 12.95 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 12.95 W; PoE++ powered (802.3bt): 12.95 W; Idle mode: 6.0 W |
| Sıcaklık | Operating temperature: –40°C to +65°C (–40°F to +149°F); Storage temperature: –40°C to +85°C (–40°F to +185°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Nem | Operating humidity: 0% RH to 100% RH (non-condensing); Storage humidity: 0% RH to 100% RH (non-condensing) |
| IP Koruma Sınıfı | IP68 |
| MTBF | > 250,000 hours |
| Security standards | IEC 62368-1; EN 62368-1; EN 60950-22 |
|---|---|
| Cyber security standards | EN 18031-1; EN 18031-2 |
| EMC Standartları | EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301489-3; EN 301489-17 |
| Radio frequency standards | EN 300 328; EN 301 893; EN 300 440; EN 62311; EN IEC 62311; EN 50665; FCC Part 15 |
| Applicable software version | RGOS11.9(6)W1B1 or later |
|---|---|
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 1024; Note; The number of associated clients varies according to the environment. |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless Distribution System (WDS) | Destekleniyor |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2/WPA3(AES), WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Destekleniyor |
| NFPP | Destekleniyor |
| IP Servisleri | Static IPv4 address; IPv4 DHCP client; NAT FTP ALG and NAT DNS ALG |
|---|---|
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client |
| IP Yönlendirme | IPv4/IPv6 static routing |
| VPN | PPPoE client; IPsec VPN, up to four IPsec tunnels |
| Ağ Yönetimi | Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client |
|---|---|
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Veri Hızı | Combined peak data rate: 2.4 GHz +5 GHz, 1.775 Gbps, 5 GHz +5 GHz, 2.402 Gbps |
| Maks. Güç Tüketimi | 12.95 W |
| External Power Supply | Hayır |
| Çalışma Sıcaklığı | –40°C to +65°C (–40°F to +149°F) |
| Boyutlar (G x D x Y) | 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.) |
| Garanti | 3 Years |
