Kablosuz Access Point Cloud-managed indoor APs

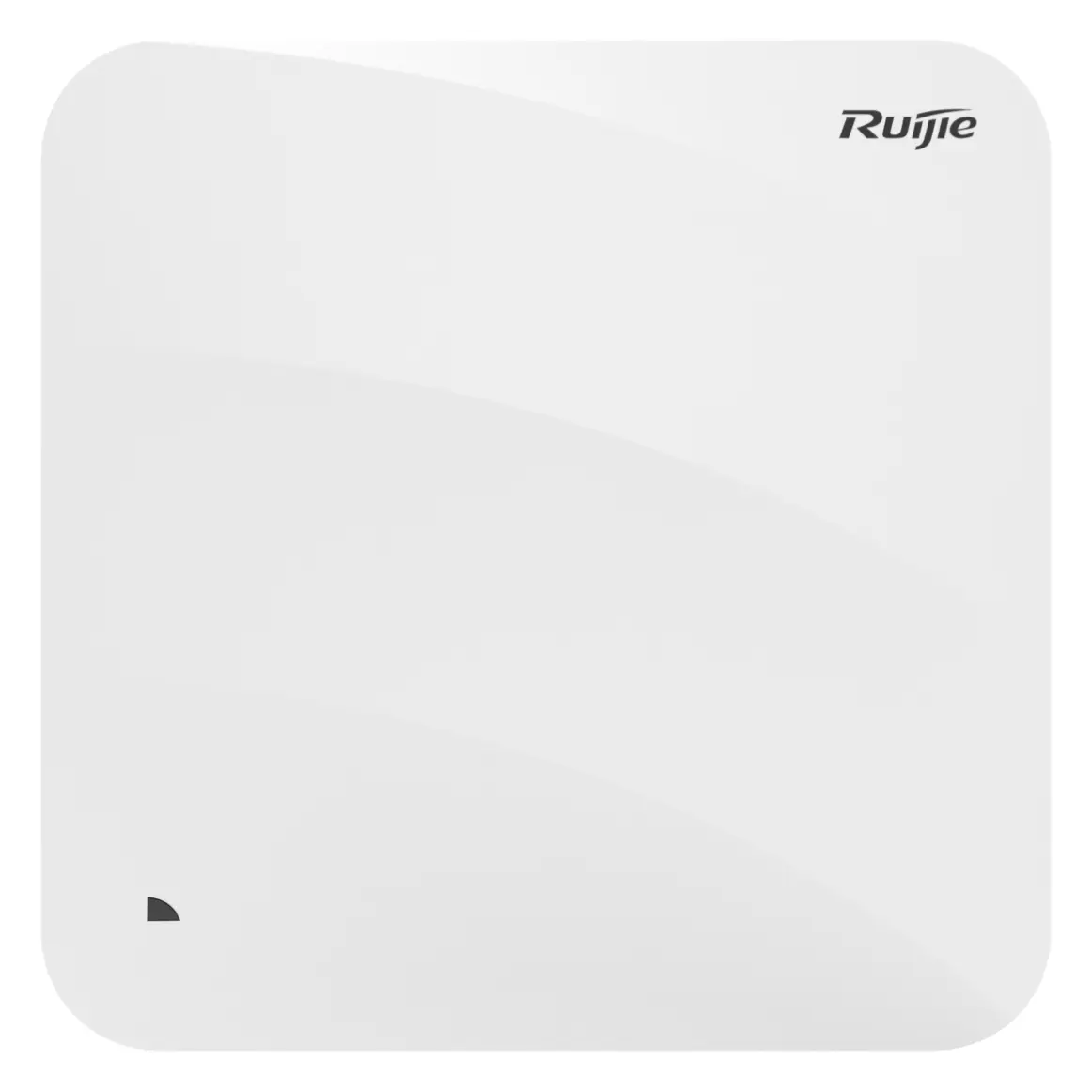

Ruijie RG-AP810-L Wi-Fi 6 Çift Bant Tavan Tipi Access Point

ModelRG-AP810-L

Ruijie RG-AP810-L access point: Next-gen Wi-Fi 6 technology, high concurrency, ultra-fast speed, Intelligent roaming with 802.11k/v/r protocols, smooth roaming experience, PoE and DC power supply, flexible deployment, Ruijie cloud management, intelligent optimization.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Next-gen Wi-Fi 6 technology, high concurrency, ultra-fast speed
Intelligent roaming with 802.11k/v/r protocols, smooth roaming experience
PoE and DC power supply, flexible deployment
Ruijie cloud management, intelligent optimization

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 17 satır

Unit dimensions(W x D x H)	220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)
Shipping dimensions(W x D x H)	514 mm x 326 mm x 294 mm (20.24 in. x 12.83 in. x 11.57 in.)
Cihaz Ağırlığı	Device: 0.6 kg (1.33 lbs); Mounting bracket: 0.2 kg (0.44 lbs)
Kutulu Ağırlık	8.45 kg (18.63 lbs)
Montaj	Wall/Ceiling-mount (A mounting bracket is delivered with the main unit)
Lock option	Kensington lock and securing latch
Radyo Tasarımı	Dual-radio; Radio 1: 2.4 GHz, two spatial streams, 2x2 MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MIMO
Çalışma Frekansları	Radio 1, 802.11b/g/n/ax:; 2.400 GHz to 2.4835 GHz, ISM; Radio 2, 802.11a/n/ac/ax:; 5.150 GHz to 5.250 GHz, U-NII-1; 5.250 GHz to 5.350 GHz, U-NII-2A; 5.470 GHz to 5.725 GHz, U-NII-2C; 5.725 GHz to 5.850 GHz, U-NII-3/ISM; Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.
Data rates	Combined peak data rate: 1.775 Gbps; 2.4 GHz radio, 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); 5 GHz radio, 1.201 Gbps; Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to 2SS HE80 802.11ax client devices (typical)
Data rate set	The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24 ,36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT80); 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80)
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Anten Tipi	Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Anten Kazancı	2.4 GHz: 2 dBi; 5 GHz: 4 dBi
Maks. Yayın Gücü	2.4 GHz radio: 26 dBm (23 dBm per chain); 5 GHz radio: 26 dBm (23 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm; 5725-58
Power increment	Configurable based on requirement
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance 16 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS11

Bluetooth Radio 5 satır

Bluetooth	Bluetooth 5.1
Anten Tipi	1 x onboard built-in omnidirectional antenna
Maks. Anten Kazancı	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maks. Yayın Gücü	17 dBm (GFSK); 14 dBm (π/4-DQPSK, 8-DPSK)
Alıcı Hassasiyeti	–95.5 dBm (DH5); –95 dBm (π/4-DQPSK); –87.5 dBm (8-DPSK)

Ports Specifications 4 satır

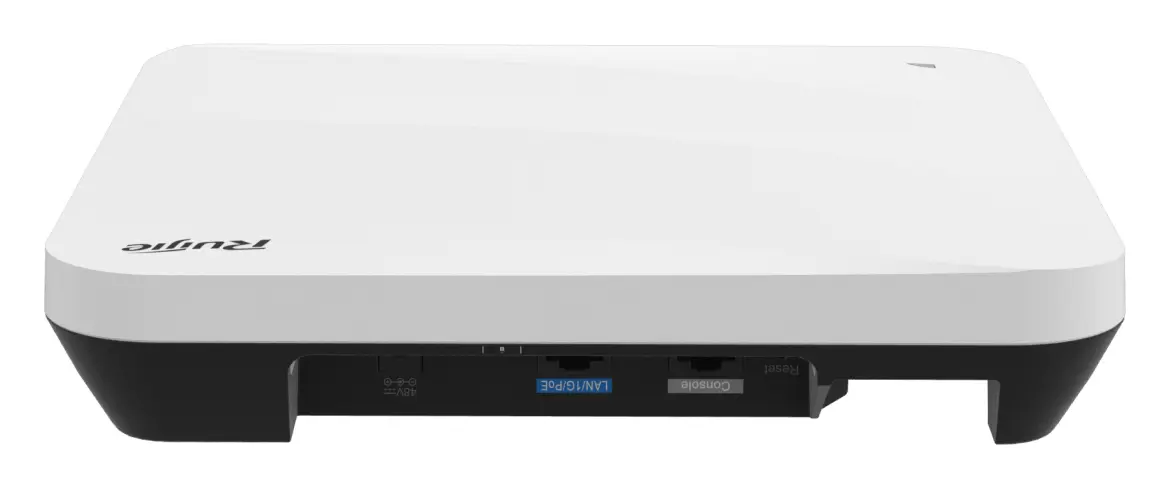

Sabit Servis Portları	1 x 10/100/1000BASE-T port; In compliance with IEEE 802.3af standard (PoE); Auto MDI/MDIX crossover; PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher); 802.3az EEE
Sabit Yönetim Portu	1 x RJ45 console port (serial console port)
Status LED	1 x multi-color system status LED
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.

Güç Kaynağı ve Tüketim 2 satır

Input power supply	The AP supports the following two power supply modes:; 48 V DC/0.3 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.; PoE input over PoE-in port: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).; Note:; If both DC power and PoE are available, DC power is preferred.
Overall power consumption	Maximum power consumption: 12.95 W; DC powered: 12.95 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 12.95 W; PoE++ powered (802.3bt): 12.95 W; Idle mode: 6 W

Ortam ve Güvenilirlik 3 satır

Sıcaklık	Operating temperature: –10°C to +50°C (14°F to 122°F); Storage Temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 5% RH to 95% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Uyumluluk 4 satır

Security standards	IEC 62368-1; EN 62368-1
Cyber security standards	EN 18031-1; EN 18031-2
EMC Standartları	EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radio frequency standards	EN 300 328; EN 301 893; EN 300 440; EN IEC 62311; FCC Part 15

Yazılım Özellikleri 14 satır

Applicable software version	AP_RGOS 11.9(6)W1B4 or higher
Recommended maximum number of active devices per AP	64 (for HD Video)/120 (for general usage)
Maximum number of associated clients	256; Note; The number of associated clients varies according to the environment.
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
STA management	SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless Distribution System (WDS)	Destekleniyor
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, PEAP, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2/WPA3(AES), WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment; ACL assignment based on time spans; ACL assignment (complete entry) based on MAC addresses; Execution of pre-configured ACLs (entry index) based on MAC addresses
CPP	Destekleniyor
NFPP	Destekleniyor

Routing and Switching 5 satır

IP Servisleri	Static IPv4 address and DHCP-assigned IPv4 address; DHCP Snooping, Option 82, DHCP Server, DHCP Client
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping; IPv6 DHCP Client
IP Yönlendirme	IPv4/IPv6 static routing
VPN	PPPoE Client; IPsec VPN, up to five IPsec tunnels

Yönetim 4 satır

Ağ Yönetimi	Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client
Network management platform	Ruijie Cloud; Web-based management (Eweb)
User access management	Console, Telnet, SSH, SNMP and TFTP-based management
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Temel Özellikler 8 satır

Wireless Protocols	802.11a/b/g/n/ac/ax
Veri Hızı	Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps
Maks. Güç Tüketimi	12.95 W
External Power Supply	Hayır
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F)
IP Koruma Sınıfı	-
Boyutlar (G x D x Y)	220 mm x 220 mm x 49 mm (8.66 in x 8.66 in x 1.93 in)
Garanti	3 Years

Genel bakış

Ruijie RG-AP810-L kullanım alanları ve özellikleri.

Recommended for indoor scenarios covering hotels, businesses, and governments

Building a High-Speed and Efficient Network with Wi-Fi 6

Indoor Access Point RG-AP810-L

Wi-Fi 6

1.775 Gbps wireless throughput

PoE and DC power supply

Free cloud management

1.775 Gbps High Speed with Wi-Fi 6

High speed:

1024QAM modulation, 25% higher data transfer rate than 802.11ac

High concurrency:

OFDMA transfer technologies, 4x more concurrent users than Wi-Fi 5

High security:

Next-gen wireless encryption protocol WPA3 significantly enhances wireless security

Low latency:

OFDMA technology reduces the delay to as low as 20 ms, improving UX in video and audio services

Intelligent Roaming Technologies, Full Wi-Fi Coverage

Intelligent roaming with 802.11k/v/r protocols, enabling clients to seamlessly access APs with stronger signals, and achieving low roaming delay and zero stalling during roaming.

PoE and DC Power Supply, Flexible Deployment

With PoE in, a single network cable can transmit both data and power without external power supply. With a 48V DC power supply, there's no need for PoE switches, reducing networking costs.

* Power adapters need to be purchased independently.

Cloud, Make Your Business Easy

Cloud portal authentication
Remote Wi-Fi management
Wireless intelligent optimization

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP810-L Compliance DocumentPDF · RG-AP810-L

Sık sorulanlar

RG-AP810-L hakkında kısa yanıtlar.

RG-AP810-L fiyatı ne kadar?

RG-AP810-L için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
