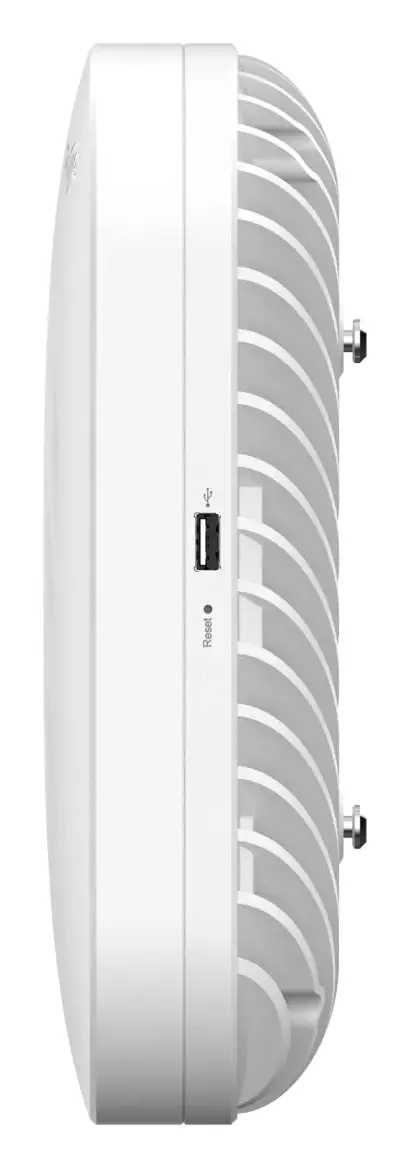

Ruijie RG-AP9861-R Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 3

Ruijie RG-AP9861-R Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 4

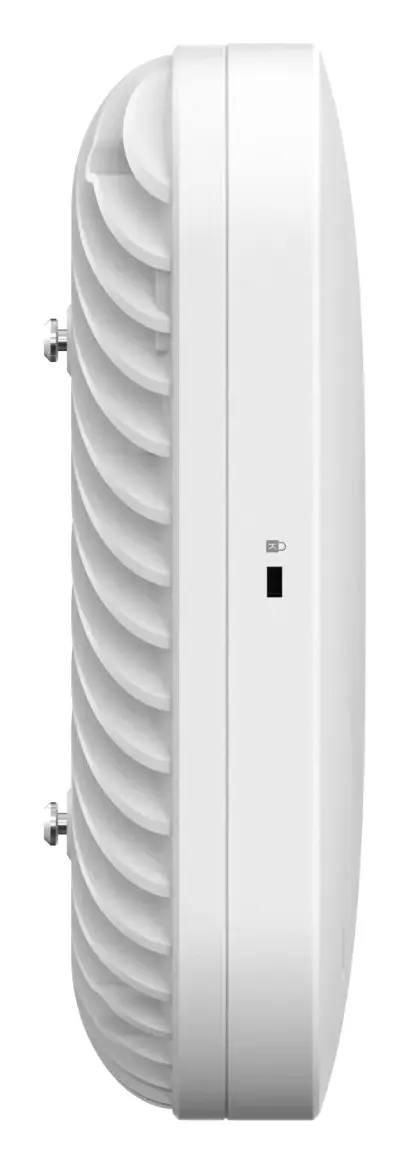

Ruijie RG-AP9861-R Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 5

1 / 5

Kablosuz Access Point Wi-Fi 7 indoor APs

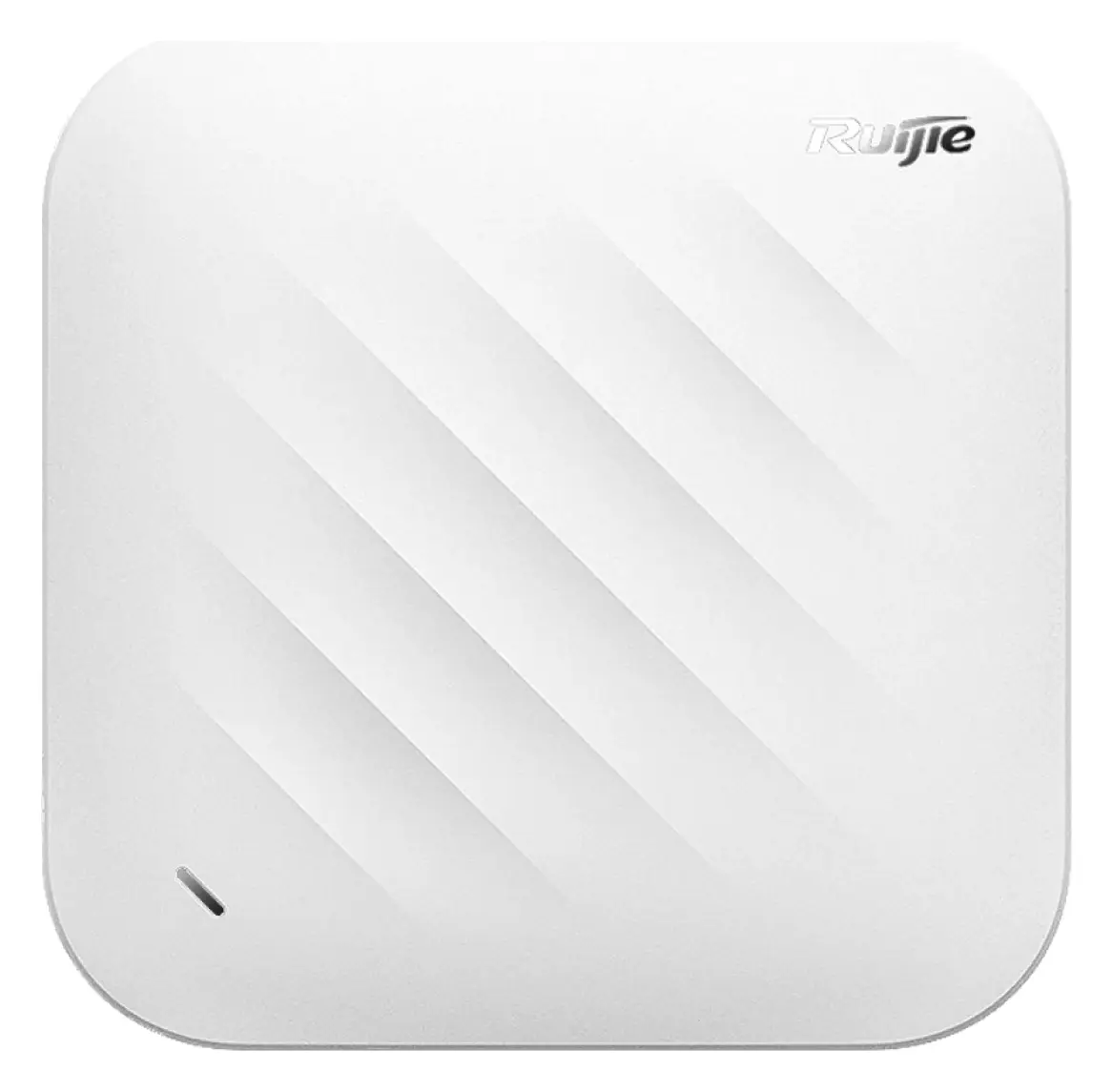

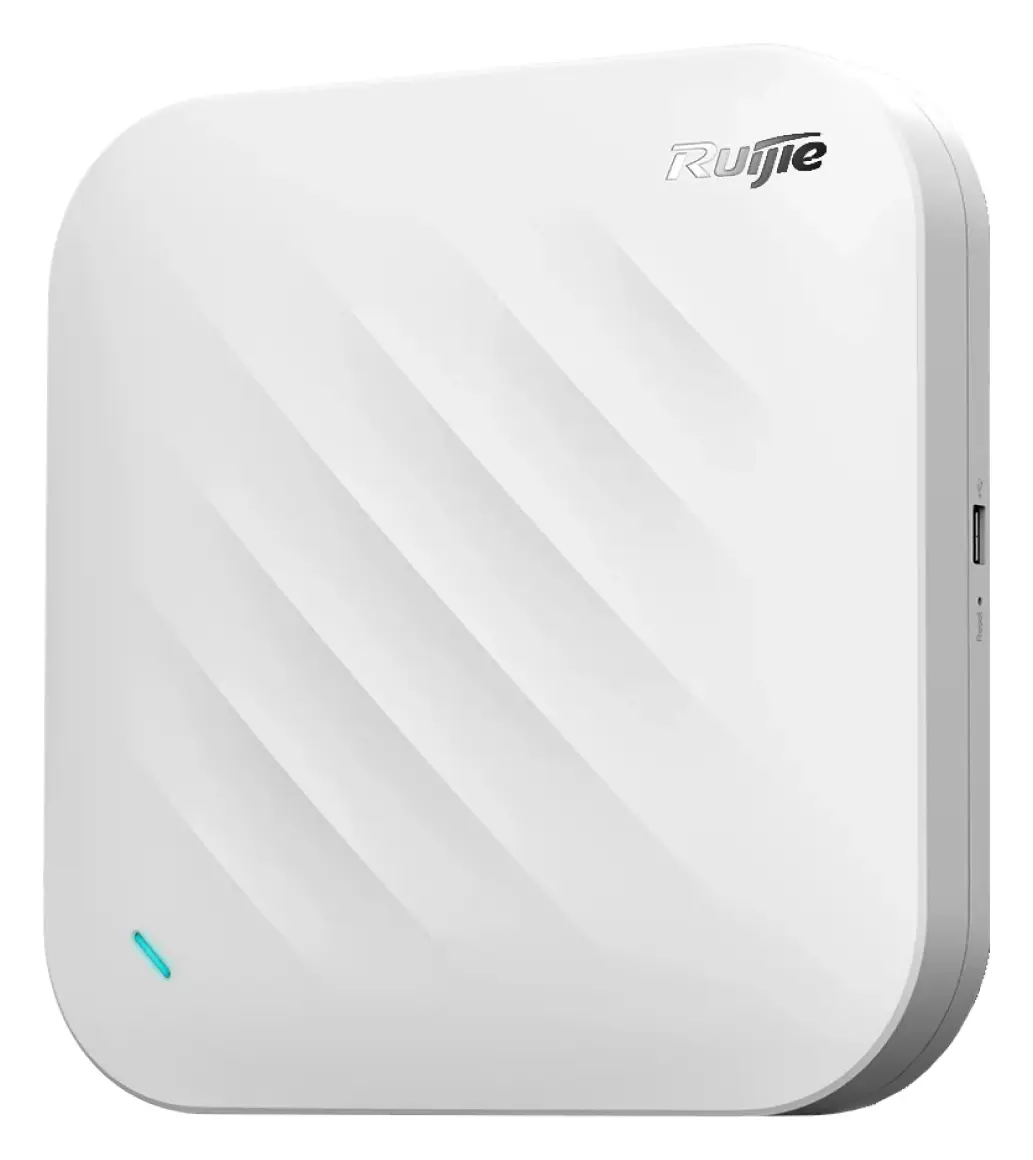

Ruijie RG-AP9861-R Wi-Fi 7 Çift Bant Tavan Tipi Access Point

ModelRG-AP9861-R

Ruijie RG-AP9861-R access point: Enterprise-class Wi-Fi 7 revolution, delivering a data rate of up to 24.436 Gbps, 10GE SFP+/RJ45 combo port for flexible networking, empowering future applications, Ruijie Simplified Optical Ethernet Solution, guaranteeing worry-free network running in the nex.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Enterprise-class Wi-Fi 7 revolution, delivering a data rate of up to 24.436 Gbps
10GE SFP+/RJ45 combo port for flexible networking, empowering future applications
Ruijie Simplified Optical Ethernet Solution, guaranteeing worry-free network running in the next decade
Self-developed AI radio technology, enabling real-time, full-band scanning and seamless roaming
Digital twin network, improving network O&M efficiency by 30%

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 20 satır

802.11n	14 spatial streams; Radio 1 – 2.4 GHz: 4x4 MIMO, four spatial streams; Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 5 – AI Radio, 2.4 GHz/5 GHz: 2x2 MIMO, two spatial streams; Channel:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Radio 3 – 5 GHz: 20 MHz and 40 MHz; Radio 5 – AI Radio, 2.4 GHz/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 1.800 Gbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS31
802.11ac	10 spatial streams; Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 5 – AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channel:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 5 – AI Radio, 5GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 6.934 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); Radio 3 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); Rad
802.11ax	16 spatial streams; Radio 1 – 2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 2 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 4 – 6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channel:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 4 – 6 GHz: 20 MHz, 40 MHz, 80 MHz and 160 MH
802.11be	16 spatial streams; Radio 1 – 2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 2 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 4 – 6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channel:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 4 – 6 GHz: 20 MHz, 40 MHz, 80 MHz, 160 MHz,
Anten	Wi-Fi; 2.4 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; 5 GHz: eight built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; 6 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; Bluetooth; One built-in omnidirectional antenna, with peak antenna gain of 3 dBi
Port	1 x 100/1000/2.5G/5G/10GBASE-T port (10G/PoE IN port on the AP); 1 x 1000/2.5G/5G/10GBASE-T port (10G/WAN2 port on the AP), shared with one 10GE SFP+ port; 1 x 10GE SFP+ port, compatibility with 1GE/2.5GE/10GE modules, shared with one 10GE RJ45 port (10G/WAN2 port on the AP); 1 x 10/100/1000BASE-T port; 1 x RJ45 console port (serial console port); 1 x USB 3.0 (Type-A connector); 1 x Bluetooth 5.3
GPS positioning	Destekleniyor
Status LED	1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x D x Y)	Main unit: 245 mm x 245 mm x 67 mm (9.65 in. x 9.65 in. x 2.64 in.); Shipping: 485 mm x 346 mm x 340 mm (19.09 in. x 13.62 in. x 13.39 in.)
Ağırlık	Main unit: 2.0 kg (4.41 lbs); Mounting bracket: 0.2 kg (0.44 lbs); Shipping weight: 2.76 kg (6.08 lbs)
Montaj	Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
Lock option	Securing latch and Kensington lock
Input power supply	The AC supports the following two power supply modes:; 54 V DC/1.25 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.5 mm (0.10 in.) or outer diameter of 5.5 mm (0.22 in.) and the length of 9.5 mm (0.37 in.). A DC power supply needs to be purchased independently.; PoE input over WAN 1: The power sourcing equipment (PSE) complies with IEEE 802.3at/bt standard (PoE+/PoE++); Note: if both DC power and PoE are available, DC powe
Maks. Güç Tüketimi	Maximum power consumption: 60 W; DC power: 60 W, Radio 1 (2.4 GHz) 4x4, Radio 2 (5 GHz) 4x4, Radio 3 (5 GHz) 4x4, Radio 4 (6 GHz) 4x4, Radio 5 (AI Radio) 2x2, LAN1 for PoE power supply (48 V/12.95 W), USB port for external power supply (5 V/5 W); 802.3bt (PoE++): 60 W, Radio 1 (2.4 GHz) 4x4, Radio 2 (5 GHz) 4x4, Radio 3 (5 GHz) 4x4, Radio 4 (6 GHz) 4x4, Radio 5 (AI Radio) 2x2, LAN1 for PoE power supply (48 V/12.95 W), USB port for external power supply (5 V/5 W); 802.3at (PoE+): 25 W, Radio 1 (2
External power supply	When powered by 802.3bt (PoE++), the AP can supply power to an external device.; The USB port can source 5 V/5 W power to an attached device.; The LAN 1 port can source 48 V/12.95 W power to an IoT unit.
Ortam Koşulları	Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.); Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 220 m (721.78 ft.), the ma
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	SDRAM: 8 GB; NAND: 2 GB; SPI: 32 MB
Yayın Gücü	2.4 GHz; Maximum transmit power: 30 dBm (1000 mw); Minimum transmit power: 10 dBm (10 mw); 5 GHz; 6 GHz; Maximum transmit power : 30 dBm (1000 mw); Minimum transmit power : 10 dBm (10 mw); Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Radio Frequency Performance 28 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ac (VHT160)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS9; MCS11
5 GHz, 802.11ax (HE160)	MCS0; MCS9; MCS11
5 GHz, 802.11be (EHT80)	MCS0; MCS9; MCS11; MCS13
5 GHz, 802.11be (EHT160)	MCS0; MCS9; MCS11; MCS13
6 GHz, 802.11ax (HE20)	MCS0; MCS11
6 GHz, 802.11ax (HE40)	MCS0; MCS11
6 GHz, 802.11ax (HE80)	MCS0; MCS9; MCS11; MCS13
6 GHz, 802.11ax (HE160)	MCS0; MCS9; MCS11; MCS13
6 GHz, 802.11be (EHT20)	MCS0; MCS11
6 GHz, 802.11be (EHT40)	MCS0; MCS11
6 GHz, 802.11be (EHT80)	MCS0; MCS9; MCS11; MCS13
6 GHz, 802.11be (EHT160)	MCS0; MCS9; MCS11; MCS13
6 GHz, 802.11be (EHT320)	MCS0; MCS9; MCS11; MCS13

Basic Functions 1 satır

Applicable software version	RGOS11.9(6)W3B17 or later

WLAN 10 satır

Maximum number of associated STAs	2,048 (up to 512 STAs per radio)
Maximum number of BSSIDs	64 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs	16
STA management	SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT; MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data channels; Encryption over CAPWAP control channels
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Application management	Application identification

Security and Authentication 6 satır

Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server; PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; QR code-based guest authentication, SMS-based authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE,
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	Wireless Intrusion Detection System (WIDS); User isolation; Rogue AP detection and containment
Dynamic Policy	IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC)
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP)

Routing and Switching 9 satır

MAC	Static MAC address, MAC address filtering, MAC address limiting; MAC address table size: 4,096; Maximum number of static MAC addresses: 2,048; Maximum number of filtered MAC addresses: 2,048
Ethernet	Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE 802.1p and IEEE 802.1Q
VLAN	Interface-based VLAN assignment; Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094
ARP	ARP entry aging, gratuitous ARP learning, and ARP proxy; Maximum number of ARP entries: 2,048; ARP check
IPv4 services	Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG, and DNS ALG
IPv6 services	IPv6 SAVI; IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, IPv6 ping; IPv6 DHCP client
IP Yönlendirme	IPv4/ IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast-to-unicast conversion
VPN	PPPoE client; IPsec VPN

Network Management and Monitoring 4 satır

Ağ Yönetimi	NTP server and NTP client; SNTP client; SNMP v1/v2c/v3; Fault detection and alarming; Information statistics collection and logging
Network management platform	Web management (Eweb)
User access management	Console, Telnet, SSH, FTP client, FTP server, and TFTP client
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through WIS Cloud.

Intelligent O&M 6 satır

Experience	Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimization	Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions
Big data	Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history
Regional analysis	Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions
One-click report	One-click health report – generating a report on the overall operation of a network
Security radar	Unauthorized Wi-Fi signal location, presentation by category, and containment

Bulut Yönetimi 1 satır

Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation

Cloud Authentication 3 satır

Authentication mode	SMS-based authentication, built-in account authentication, one-click authentication, Facebook authentication, Instagram authentication, Voucher authentication, and other authentication modes; Authentication implemented on the cloud, eliminating the need to deploy the local authentication server
Customized portal	Customized Portal authentication page for mobile phones and PCs
SMS gateway	Interconnection with SMS gateways of GUODULINK and Alibaba Cloud

Platform Capabilities 3 satır

Big data capabilities	Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions
Hierarchy and decentralization	Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System management	Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions

Uyumluluk 1 satır

Uyumluluk	EN 55032; EN 55035; EN 61000-3-3; EN IEC 61000-3-2; EN 301 489-1; EN 301 489-3; EN 301 489-17; EN 301 489-19; EN 300 328; EN 301 893; EN 300 440; EN 303 413; EN 303 687; FCC Part 15; EN IEC 62311; IEC 62368-1; EN 62368-1; EN 18031-1; EN 18031-2

Temel Özellikler 9 satır

Wireless protocol	802.11a/b/g/n/ac/ax/be
Radyo Tasarımı	Five-radio: 2.4 GHz (4x4), 5 GHz 1 (4x4), 5 GHz 2 (4x4), 6 GHz (4x4), 2.4 GHz/5 GHz (2x2), up to 18 spatial streams
Max. data transmission rate	24.436 Gbps
Wi-Fi antenna	Built-in omnidirectional smart antennas
Sabit Servis Portları	1 x 100/1000/2.5G/5G/10GBASE-T port 1 x 10GE SFP+/RJ45 combo port 1 x 10/100/1000BASE-T
Bluetooth	Bluetooth 5.3
Max. number of associated STAs	2,048 (512 STAs per radio)
Maks. Güç Tüketimi	60 W
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F)

Genel bakış

Ruijie RG-AP9861-R kullanım alanları ve özellikleri.

Applicable to Ruijie Simplified Optical Ethernet Solution and ideal for high-density indoor scenarios in the sectors covering higher education, government, general education, finance, and business.

AR Series High-Density Indoor Wi-Fi 7 Access Point RG-AP9861-R

18 spatial streams

Up to 24.436 Gbps data rate

Five radios (including one AI radio)

PoE/DC power supply

IoT expansion and Bluetooth 5.3

Enterprise-Class Wi-Fi 7 Revolution, Delivering a Data Rate of Up to 24.436 Gbps

4096-QAM for High Data Rate

The next-generation IEEE 802.11be standard uses 4096-QAM, achieving a data rate of up to 24.436 Gbps.

Multiple Wi-Fi Technologies for High-Density User Access

Multiple Wi-Fi technologies are integrated to increase the average rate per user to up to 2.4 times that of 802.11ax in high-density deployment and access scenarios.

Fifth-Generation Smart Antennas for Wide Signal Coverage

Fifth-generation smart antennas and dual-antenna mode are adopted to provide uninterrupted signals when clients move, enabling wide signal coverage.

Ruijie SOE Solution, Guaranteeing Worry-Free Network Running in the Next Decade

The RG-AP9861-R supports the all-optical architecture. Working with the optical i-Share master AP and hybrid cable, the RG-AP9861-R can achieve long-distance data and power transmission over 1,100 meters indoors, delivering an indoor bandwidth of up to 10 Gbps. This AP enables flat network architecture and elastic upgrade, and simplifies deployment and cabling while reducing costs.

Self-Developed AI Radio Technology

Real-Time, Full-Band Scanning for a Secure Network

Seamless Roaming for Service Continuity

Al Radio enables real-time, full-band scanning to eliminate coverage holes caused by traditional timeframe-based, single-band scanning, ensuring a robust network. Security scanning does not consume radio resources for communication, ensuring superior network experience and security without compromising wireless performance.

Al Radio Safeguarding

Traditional AP Safeguarding

24/7 real-time scanning 5 GHz/2.4 GHz full-band scanning

Timeframe-based, single-band scanning Consuming radio resources for communication

The built-in AI Radio can independently scan and transmit client status information to the AC, which steers clients to quickly associate with the optimal AP based on the scanning results of neighboring APs. This guarantees good signal strength, low roaming latency, zero network freeze, and service continuity during roaming.

Average roaming latency: < 30 ms;

Packet loss rate: < 0.5%;

Traditional Settled AP

Average roaming latency: 300 ms;

Packet loss rate: 2%

Digital Twin Network, Improving Network O&M Efficiency by 30%

Intelligent O&M functions are supported, including visualized fault locating, local network optimization, service network optimization, and VIP area network optimization. This greatly improves the O&M efficiency and experience for wireless networks.

Second-Level Detection of Numerous APs

Network-Wide Client Diagnosis

One-Click Precise Optimization

Go to WIS Digital Twin Network->

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP9861-R

Sık sorulanlar

RG-AP9861-R hakkında kısa yanıtlar.

RG-AP9861-R fiyatı ne kadar?

RG-AP9861-R için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
