RUIJIE · RG-CAP62-WP Ruijie RG-CAP62-WP Wi-Fi 6 AX3000 Çift Bant Duvar Tipi Access Point

Ruijie RG-CAP62-WP Wi-Fi 6 AX3000 Çift Bant Duvar Tipi Access Point

ModelRG-CAP62-WP

Ruijie RG-CAP62-WP access point: AX3000 Wi-Fi 6 speed for basic office and guestroom connectivity., 2.5G uplink port for high-speed Internet access., 4 LAN ports with PoE Out for IP phones or cameras., Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, and a Kensington lock slot., Sta.

Kablosuz standart: Wi-Fi 6

AX3000 Wi-Fi 6 speed for basic office and guestroom connectivity.
2.5G uplink port for high-speed Internet access.
4 LAN ports with PoE Out for IP phones or cameras.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, and a Kensington lock slot.
Standard wall-box mounting for quick upgrades.

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-CAP62-WP özellikleri ve kullanım alanları.

Offices, hotels, warehouses, hospitals, and schools.

RG-CAP62-WP Ruijie Cybrey Wi-Fi 6 AX3000 Wall-Plate Access Point

AX3000 Wi‑Fi 6 Speed

Provides reliable connectivity for hotel rooms, office cubicles, and clinic environments.

Features a multi‑gigabit port for high‑speed Internet access and large file transfers.

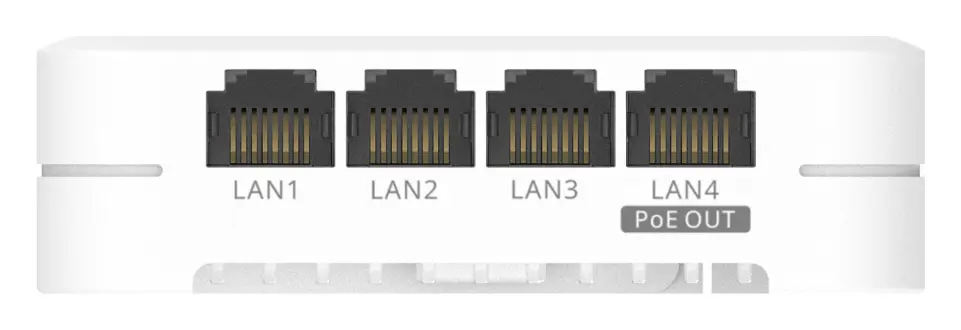

4 LAN Ports (One PoE Out)

Features 4 LAN ports for wired devices, with one PoE Out port that powers an IP phone or camera directly.

Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a securing latch.

Responsive Roaming Experience

The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.

Fits standard junction boxes, enabling quick upgrade for hotel rooms and office spaces.

Cloud-Edge Collaborative Wireless Network

Provides IP68-rated dust and water protection, and features F2-grade UV-resistant materials.

In the Box

ST4.2 x 25 mm Phillips tapping screws

φ6.3 x 25 mm Plastic expansion anchors

ST3 x 30 mm Phillips tapping screws

M3.5 x 30 mm Phillips machine screws

M4 x 40 mm Phillips machine screws

Key to security lock slot

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.

High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Wi-Fi Radyo
Wi-Fi Standartları	IEEE 802.11ax (Wi-Fi 6), compatible with IEEE 802.11a/b/g/n/ac
Wi-Fi standards (2.4 GHz)	IEEE 802.11b (Wi-Fi 1); IEEE 802.11g (Wi-Fi 3); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ax (Wi-Fi 6)
Wi-Fi standards (5 GHz)	IEEE 802.11a (Wi-Fi 2); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ac (Wi-Fi 5); IEEE 802.11ax (Wi-Fi 6)
Radyo Tasarımı	Dual-radio; 4 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO
Data rates	Combined peak data rate: 2976 Mbps; Radio 1: 2.4 GHz, 574 Mbps; Radio 2: 5 GHz, 2402 Mbps
Maks. Yayın Gücü	Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):; Note: The transmit power is limited by local regulatory requirements.; European Union & United Kingdom:; 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm; Myanmar:; 2400–2483.5 MHz, EIRP ≤ 23 dBm; 5725–5825 MHz, EIRP ≤ 30 dBm; Thailand:; Indonesia:; 2400–2483.5 MHz, EIRP ≤ 27 dBm; 5725–5825 MHz, EIRP ≤ 23 dBm; Egypt:; Vietnam:; 5725–5850 MHz, EIRP ≤ 30 dBm
Maximum transmit power (2.4 GHz)	Combined power: 21 dBm (single-stream power: 18 dBm); Note: The transmit power is limited by local regulatory requirements.
Maximum transmit power (5 GHz)	Combined power: 21 dBm (single-stream power: 18 dBm); Note: The transmit power is limited by local regulatory requirements.
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Operating frequency bands	Radio 1: 802.11b/g/n/ax, 2.400 GHz to 2.4835 GHz, HE20/HE40; Radio 2: 802.11a/n/ac/ax, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, HE20/HE40/HE80/HE160; Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.
Alıcı Hassasiyeti	802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –74 dBm (54 Mbps); 802.11b: –96 dBm (1 Mbps), –93 dBm (5.5 Mbps), –89 dBm (11 Mbps); 802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps); 802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7); 802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7); 802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8); 802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9); 802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9); 802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9);

Anten
Anten Tipi	2.4 GHz and 5 GHz: 2 x built-in dual-band omnidirectional antennas
Anten Kazancı	2.4 GHz: 2.95 dBi; 5 GHz: 5.17 dBi

Port Özellikleri
Sabit Servis Portları	1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at-compliant PoE input; 3 x 10/100/1000BASE-T ports; 1 x 10/100/1000BASE-T port, supporting PoE output
Sabit Yönetim Portu	1 x micro USB console port
LED	1 x system LED
Reset Butonu	1

Güç Kaynağı ve Tüketim
DC power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A
PoE Güç Beslemesi	IEEE 802.3af (PoE); IEEE 802.3at (PoE+)
Güç Çıkışı	Supported; LAN4 port can provide 54 V/10 W power output.
PoE Bütçesi	10 W (with an IEEE 802.3at-compliant power source)
Maks. Güç Tüketimi	23.5 W (including 10 W PoE output)
PoE Çıkış Port Sayısı	1
IEEE 802.3af power input	Port restrictions: The LAN4 port cannot provide power output.; Radio restrictions: N/A; Other feature restrictions: N/A
IEEE 802.3at power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A

Ortam ve Güvenilirlik
Çalışma Sıcaklığı	–10°C to +40°C (14°F to 104°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Çalışma Nemi	5% RH to 95% RH (non-condensing)
Depolama Nemi	0% RH to 95% RH (non-condensing)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Lock option	Securing latch
MTBF	400,000 hours
Montaj Seçenekleri	Wall-mount and junction box-mount

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	86 mm x 25 mm x 135 mm (3.39 in. x 0.98 in. x 5.31 in., without the mounting bracket)
Packaging dimensions (W x D x H)	113 mm x 177.5 mm x 63 mm (4.45 in. x 6.99 in. x 2.48 in.)
Cihaz Ağırlığı	Main unit: 0.23 kg (0.51 lbs); Mounting bracket: 0.06 kg (0.13 lbs)
Packaging weight	0.46 kg (1.01 lbs)
Renk	Beyaz

Sistem Özellikleri
Flash Bellek	256 MB SPI NAND Flash
RAM	1 GB DDR4

Certification and Regulatory Compliance
Sertifikalar	CE, CB, Wi-Fi Alliance
EMC compliance	EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radyo	EN 300 328; EN 301 893; EN 300 440
RF exposure	EN IEC 62311
Safety compliance	IEC 62368-1

Bandwidth Features
Bandwidth control	AP-based bandwidth control; Client-based bandwidth control; Intelligent dynamic bandwidth control based on channel utilization; Intelligent dynamic bandwidth control based on critical services; SSID-based bandwidth control

Client Management
Client limit	Radio-based client limit; SSID-based client limit
Dynamic blocklist/allowlist	Dynamic blocklist
Smart steering	AP load balancing; Configuring load balancing based on client count; Configuring load balancing based on client traffic
Static blocklist/allowlist	Static allowlist; Static blocklist
Maximum number of associated clients per AP	1024; Note: The number of associated clients varies according to the environment.
Recommended number of associated clients per AP	64

Radio Management
SSID management basics	SSID hiding
Maximum number of BSSIDs per AP	32

Roaming Features
Layer 2 roaming	Layer 2 roaming
Layer 3 roaming	Layer 3 roaming

Security Features
Client security	Hotspot2.0 authentication; WPA-802.1X authentication; WPA-PSK authentication; WPA-WPA2 authentication; WPA2-802.1X authentication; WPA2-PSK authentication; WPA2-WPA3 authentication; WPA3-Enterprise; WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256); WPA3-Enterprise with AES-CCMP-128; WPA3-OWE authentication; WPA3-Personal; WEP authentication
802.1X	Dynamic ACL assignment
Client identification	AI-based identification of client types, operating systems, operating system versions, vendors, and models; Client identification
CPP	CPP
MAB	MAB
NFPP	NFPP
RADIUS	RADIUS
Web authentication	Web authentication

Katman 3 Özellikleri
IPv6	ICMPv6; IPv6 basic features; Neighbor discovery; Ping over IPv6
NAT	NAT; PPTP, SIP, FTP, DNS, and TFTP

Management Features
SNMP	SNMPv1/v2c/v3; SNMP
Alerts	Alerts
Cloud-based management	Cloud-based management
SON	SON
SSH	SSH
Syslog	Syslog
Telnet	Telnet
Web-based management	Web-based management

IP Servisleri
DHCP	DHCPv4 client; DHCPv6 client
NTP	NTP client; NTP server
Number of DHCP address pools	2000

Networking Features
RIPT	RIPT

Routing Features
IPv4 routing basics	Static routing
IPv6 routing basics	Static IPv6 routing

Device Management
AP mode management	Mode switching
Device IP management	Obtaining an IP address through DHCP
Device IP Management	Static IPv4 address

Multicast Features
IGMP snooping	Multicast-to-unicast conversion

Device
Main unit	1

Aksesuarlar
Alignment sticker	1
Key to security lock	1
Mounting bracket	1 x mounting bracket (W x D x H: 78.5 mm x 13 mm x 114.6 mm / 3.09 in. x 0.51 in. x 4.51 in.)
Screw	4 x ST4.2 x 25 mm Phillips tapping screws; 4 x φ6.3 x 25 mm plastic expansion anchors; 2 x ST3 x 30 mm Phillips tapping screws; 2 x M3.5 x 30 mm Phillips machine screws; 2 x M4 x 40 mm Phillips machine screws

Manual
User Manual	1
Warranty Card	1

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Installation GuidePDF

Sık sorulanlar

RG-CAP62-WP hakkında kısa yanıtlar.

RG-CAP62-WP fiyatı ne kadar?

RG-CAP62-WP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
