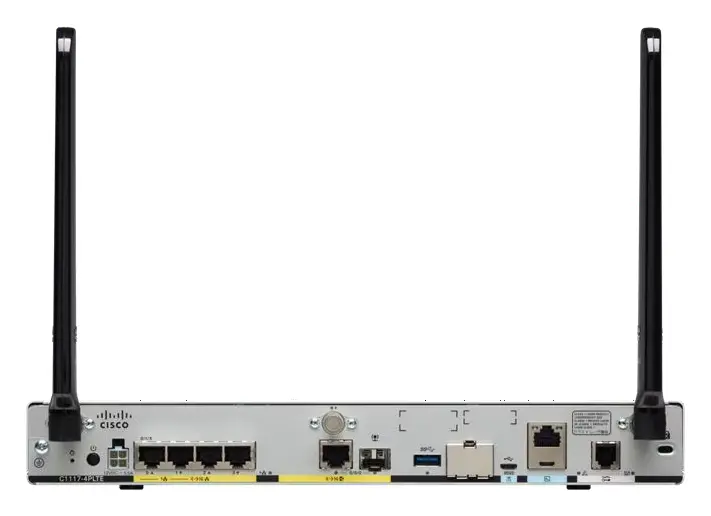

Cisco C1117-4PW ISR 1000 4 Port GE LAN Wi-Fi VDSL/ADSL Router

ModelC1117-4PW

Cisco C1117-4PW router: 4 Port GE LAN, Wi-Fi, VDSL/ADSL. Öne çıkan özellikleri: 4 port ge lan, wi-fi, vdsl/adsl.

Port sayısı: 4 port
Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

4 Port GE LAN
Wi-Fi
VDSL/ADSL

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 21 satır

Boyutlar (Y x G x D)	1.75 x 12.70 x 9.03 in. (4.45 x 32.26 x 22.94 cm)
Ağırlık	4.76 lb. (2.16 kg)
Maximum power consumption (excluding external PS loss)	C1111: 21.7W C111x: 25.8W
External power supply	AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz; Output voltage: 12 VDC; Maximum output power: 66W; Requires 115W power supply for optional PoE and PoE+; PoE output voltage of -53.5 VDC
Operating conditions	Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C; Altitude: 0 to 10,000 ft (0 to 3048 m); Humidity: 10% to 85% relative humidity (noncondensing)
Nonoperating conditions	Temperature: -40° to +70°C (-40° to +158°F); Altitude: 0 to 15,000 ft (0 to 4572 m); Humidity: 5% to 95% relative humidity (noncondensing)
Wi-Fi domains	C1111: A, B, D, E, F, H, N, Q, R, Z; C1116: E C1117: A, E, Z
Minimum supported version (XE SD-WAN)	Varies for each device. Refer to the SD-WAN Compatibility Matrix
WAN GE	1
WAN DSL	Yes
WAN LTE (CAT 6)	No
LAN 802.11ac	Yes
LAN GE	4
802.11ac (Wi-Fi 5)	802.11ax
Inline PoE	802.3af-compliant PoE, 802.3at-compliant PoE+.
Standard safety certifications	UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, UL 62368-1, CSA 62368-1, EN 62368-1, IEC 62368-1
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1
EMC immunity	EN55024/CISPR24, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN300-386
Radio immunity	EN 301 489-1, EN 301 489-7, EN 301 489-24
Cellular radio	EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, EN 301 908 -13
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)	PHY data rates up to 1.488 Gbps (80 MHz on 5 GHz and 20 MHz on 2.4 GHz)

Genel bakış

Cisco C1117-4PW kullanım alanları ve özellikleri.

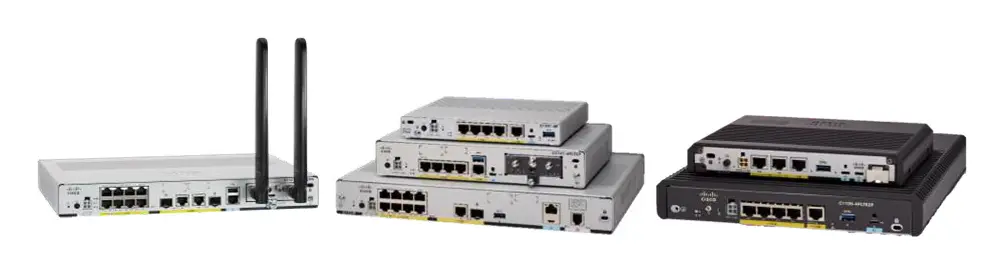

Cisco C1117-4PW, ISR 1000 ailesinden şube ve kurumsal ağlar için router platformudur.

The Cisco ® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS ® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.

● Industry-leading hardware coupled with feature-rich software combine to make high-performance small-office routers. Up to 800 Mbps IMIX encrypted throughput.

Öne Çıkan Özellikler

4 Port GE LAN
Wi-Fi
VDSL/ADSL

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

ISR 1000 Datasheet (EN)PDF · C1117-4PW ISR 1000 Datasheet (PDF)PDF · C1117-4PW

Sık sorulanlar

C1117-4PW hakkında kısa yanıtlar.

C1117-4PW fiyatı ne kadar?

C1117-4PW için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
