Cisco C1127-8PLTEP ISR 1000 8 Port GE LAN 4G LTE VDSL/ADSL 5G Router

ModelC1127-8PLTEP

Cisco C1127-8PLTEP router: 8 Port GE LAN, 4G LTE, VDSL/ADSL, 5G.

Port sayısı: 8 port
Kablosuz standart: Wi-Fi 5

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

8 Port GE LAN
4G LTE
VDSL/ADSL
5G

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 26 satır

Boyutlar (H x W x D)	1.65 x 10.80 x 7.85 in.
Ağırlık	3.48 lb. (1.58 kg)
Maximum power consumption (excluding external PS loss)	19.9W
External power supply	AC input voltage: Universal 100 to 240 VAC, 50 to 60 Hz; Output voltage: 12 VDC; Maximum output power: 66W; Requires 150W power supply for optional PoE and PoE+; PoE output voltage of -53.5 VDC
Operating conditions	Temperature: 0° to 40°C at sea level, 1°C/1000 ft derating from 40°C; Altitude: 0 to 10,000 ft (0 to 3048 m); Humidity: 10% to 85% relative humidity (noncondensing)
Nonoperating conditions	Temperature: -40° to +70°C (-40° to +158°F); Altitude: 0 to 15,000 ft (0 to 4572 m); Humidity: 5% to 95% relative humidity (noncondensing)
Minimum supported version (XE SD-WAN)	17.2.1
WAN GE	1
WAN DSL	Yes
WAN 5G	Yes
WAN LTE	Yes
LAN 802.11ac	No
LAN GE	8
SD-WAN IPsec Throughput (512B)	Up to 700 Mbps
SD-WAN Profile: IPsec + QoS + Deep Packet Inspection + Flexible Netflow (512B)	Up to 250 Mbps
SD-WAN Overlay Tunnels scale	200
IPv4 Forwarding Throughput (512B)	Up to 1600 Mbps
IPsec Throughput (512B)	Up to 600 Mbps
802.11ac (Wi-Fi 5)	802.11ax
Inline PoE	802.3af-compliant PoE, 802.3at-compliant PoE+.
Standard safety certifications	UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1, UL 62368-1, CSA 62368-1, EN 62368-1, IEC 62368-1
EMC emissions	EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, EN61000-6-1
EMC immunity	EN55024/CISPR24, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11, EN300-386
Radio immunity	EN 301 489-1, EN 301 489-7, EN 301 489-24
Cellular radio	EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, EN 301 908 -13
PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz)	PHY data rates up to 1.488 Gbps (80 MHz on 5 GHz and 20 MHz on 2.4 GHz)

Genel bakış

Cisco C1127-8PLTEP kullanım alanları ve özellikleri.

Cisco C1127-8PLTEP, ISR 1000 ailesinden şube ve kurumsal ağlar için router platformudur.

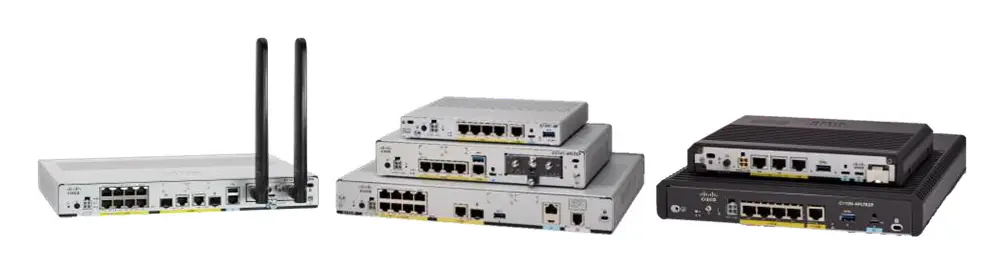

The Cisco ® 1000 Series Integrated Services Routers (ISR 1000 Series) portfolio has been steadily expanding over the years to provide our customers with the flexibility they need. The ISR 1000 Series combines routing, switching, Wi-Fi, integrated security, and DSL and LTE uplink connectivity options in a single, lightweight, high-performance device. Choose between the traditional Cisco IOS ® XE or controller-managed Cisco IOS XE SD-WAN software to deploy your network quickly and reliably on all Cisco ISR 1000 Series routers. With a simple and flexible pay-as-you-grow model, you purchase network capacity only when you need it.

● Industry-leading hardware coupled with feature-rich software combine to make high-performance small-office routers. Up to 800 Mbps IMIX encrypted throughput.

Öne Çıkan Özellikler

8 Port GE LAN
4G LTE
VDSL/ADSL
5G

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

ISR 1000 Datasheet (EN)PDF · C1127-8PLTEP ISR 1000 Datasheet (PDF)PDF · C1127-8PLTEP

Sık sorulanlar

C1127-8PLTEP hakkında kısa yanıtlar.

C1127-8PLTEP fiyatı ne kadar?

C1127-8PLTEP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
