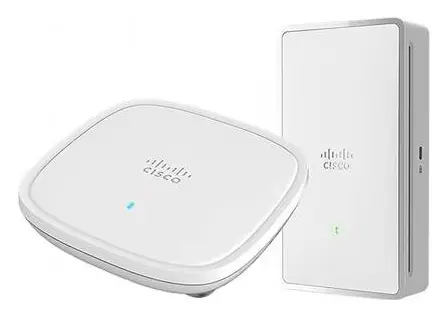

Cisco C9105AXI Wi-Fi 6 İç Ortam Access Point

ModelC9105AXI

Cisco C9105AXI access point: Wi-Fi 6 standardı, Kullanım: İç Ortam, Wi-Fi 6 (802.11ax), Uplink/downlink OFDMA, Downlink MU‑MIMO technology.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: İç Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 2 satır

Sipariş Kodları (PID)	C9105AXI-x (x = regülasyon bölgesi), C9105AXI-EWC-x (x = regülasyon bölgesi)
Planlanan Satış Sonu (End-of-Sale) Tarihi	31.12.2026

Teknik Özellikler 12 satır

802.11n Özellikleri	2x2 MIMO with two spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g; 20- and 40-MHz channels; PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive); 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac (Wi-Fi 5)	2x2 downlink MU-MIMO with two spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80- MHz channels; PHY data rates up to 866.7 Mbps (80 MHz with 5GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA3 support
802.11ax (Wi-Fi 6/6E)	2x2 uplink/downlink MU-MIMO with two spatial streams; Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80- channels; PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA3 support
Dahili Anten	Catalyst 9105AXW; 2.4 GHz: Peak gain 3 dBi, internal antenna; 5 GHz: Peak gain 5 dBi, internal antenna; Catalyst 9105AXI; 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Arayüzler	Catalyst 9105AXW; 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface; 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget); Management console port (RJ-45); USB 2.0 at 4.5W; Passthru Port; Catalyst 9105AXI; 1x 10/100/1000 Base-T (Ethernet) Uplink Interface; Management console port (RJ-45)
Boyutlar (W x L x H)	Access point (without mounting brackets): C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm); C9105AXI: 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm)
Ağırlık	Cisco Catalyst 9105AXW; 0.8 lb. (373.2g); Cisco Catalyst 9105AXI; 0.7 lb. (329.5g)
Input power requirements	802.3at Power over Ethernet Plus (PoE+), Cisco Universal PoE (Cisco UPOE); Cisco power injector, AIR-PWRINJ6=; 802.3af PoE; Cisco power injector, AIR-PWRINJ5= (; Note: This injector supports only 802.3af)
Ortam Koşulları	Cisco Catalyst 9105AXW; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40˚C, 9843 ft (3000 m); Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 2x2 to …
Datarate/Transmit Power/ Receive sensitivity	For information about Datarate, Transmit power and Receive Sensitivity, refer to; Cisco RF details
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Genel bakış

Cisco C9105AXI kullanım alanları ve özellikleri.

Cisco C9105AXI, Catalyst 9105 serisinden Wi-Fi 6 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst 9105 Series Access Points are the most versatile next generation access point in enterprise grade. They are resilient, secure, and intelligent.

Extending Cisco’s intent-based network and perfect for networks of all sizes, the Catalyst 9105 Access Points scale to meet the growing demands of IoT while fully supporting the latest innovations and new technologies. The Catalyst 9105 come in different mounting options: the Catalyst 9105i which can be mounted to the ceiling using a specifically designed mounting bracket or can be placed on the desk. The Catalyst 9105w is specifically designed to be mounted to the wall and is ideal for hospitality, residence halls and other multi-dwelling units.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application Hosting on Catalyst 9100 Access
Bluetooth 5
Cisco Embedded Wireless Controller
Container support for applications

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application Hosting on Catalyst 9100 Access
Bluetooth 5
Cisco Embedded Wireless Controller
Container support for applications
Apple features

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9105 Datasheet (EN)PDF · C9105AXI Catalyst 9105 Datasheet (PDF)PDF · C9105AXI

Sık sorulanlar

C9105AXI hakkında kısa yanıtlar.

C9105AXI fiyatı ne kadar?

C9105AXI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
