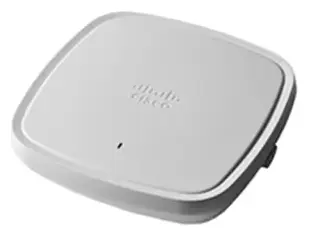

Cisco C9117AXI Wi-Fi 6 İç Ortam Access Point

ModelC9117AXI

Cisco C9117AXI access point: Wi-Fi 6 standardı, Kullanım: İç Ortam, 802.11ax (Wi-Fi 6), 802.11ac Wave 2 support, OFDMA.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: İç Ortam
802.11ax (Wi-Fi 6)
802.11ac Wave 2 support
OFDMA
MU‑MIMO technology
Target wake time
Embedded Catalyst Wireless Controller

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 2 satır

Sipariş Kodları (PID)	C9117AXI-x (x = regülasyon bölgesi), C9117AXI-EWC-x (x = regülasyon bölgesi)
Satış Sonu (End-of-Sale) Tarihi	30.04.2021

Teknik Özellikler 14 satır

802.11n Özellikleri	8x8 MIMO with four spatial streams for 5-GHz band; 4x4 MIMO with four spatial streams for 2.4-GHz band; Maximal Ratio Combining (MRC); 20- and 40-MHz channels; PHY data rates up to 600 Mbps (40 MHz with 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); Cyclic Shift Diversity (CSD) support
802.11ac (Wi-Fi 5)	8x8 downlink MU-MIMO with eight spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80, and 160-MHz channels; PHY data rates up to 3.5 Gbps at 5 GHz; Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); CSD support; 160 MHz support only on 4-spatial stream
802.11ax (Wi-Fi 6/6E)	8x8 MIMO with eight spatial streams for 5-GHz band; 4x4 MIMO with four spatial streams for 2.4-GHz band; Downlink OFDMA; TWT; MRC; 802.11ax beamforming; 20-, 40-, 80, and 160-MHz channels; PHY data rates up to 5 Gbps at 5 GHz; Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); CSD support
Dahili Anten	2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Arayüzler	1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz; Management console port (RJ-45); USB 2.0 with up to 4.5W (enabled via future software)
Boyutlar (W x L x H)	Access point (without mounting bracket and mounting features): 8.70 x 8.70 x 1.94 in. (22 x 22 x 4.93 cm); Access point (without mounting bracket): 8.70 x 8.70 x 2.19 in. (22 x 22 x 5.56 cm)
Ağırlık	3.02 lb (1.4 kg)
Input power requirements	802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE); Cisco power injector, AIR-PWRINJ6=; 802.3af PoE; Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af); Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 2.5 Gbps; in addition, the USB port will be off.
Güç Tüketimi	802.3bt Cisco UPOE+ Cisco UPOE Full Feature
Ortam Koşulları	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C, 15,000 ft.; Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40˚C, 9843 ft.
System memory	2048 MB DRAM; 1024 MB flash
Datarate/Transmit Power/ Receive sensitivity	For more detailed information about Datarate/TX Power/Receive sensitivity, Please refer Cisco RF Details
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers; Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Genel bakış

Cisco C9117AXI kullanım alanları ve özellikleri.

Cisco C9117AXI, Catalyst 9117 serisinden Wi-Fi 6 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst 9117 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent.

Hyperconnectivity with steady performance in demanding environments. Exponential growth of Internet of Things (IoT) devices and next-generation applications. Advanced persistent security threats. All of these require a wireless network that provides resiliency and superior connectivity, integrated security with advanced classification and containment, and hardware and software innovations to automate, secure, and simplify networks. Updating your wireless infrastructure to one that will meet these needs is paramount for today’s digital business. The new generation of Cisco Catalyst 9100 Access Points, with high-performance Wi-Fi 6 (802.11ax) capabilities and innovations in RF performance, security, and analytics, enables end-to-end digitization and helps accelerate the rollout of business services by delivering beyond Wi-Fi.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
802.11ax (Wi-Fi 6)
802.11ac Wave 2 support
OFDMA
MU‑MIMO technology
Target wake time
Embedded Catalyst Wireless Controller
User Defined Network
Application Hosting on Catalyst 9100 Access
Multigigabit Ethernet support
Bluetooth 5.0

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam
802.11ax (Wi-Fi 6)
802.11ac Wave 2 support
OFDMA
MU‑MIMO technology
Target wake time
Embedded Catalyst Wireless Controller
User Defined Network
Application Hosting on Catalyst 9100 Access
Multigigabit Ethernet support
Bluetooth 5.0
Apple features

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9117 Datasheet (EN)PDF · C9117AXI Catalyst 9117 Datasheet (PDF)PDF · C9117AXI

Sık sorulanlar

C9117AXI hakkında kısa yanıtlar.

C9117AXI fiyatı ne kadar?

C9117AXI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
