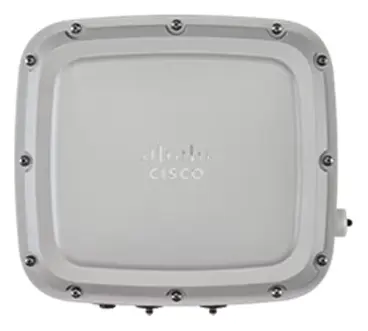

Cisco C9124AXD Wi-Fi 6 Dış Ortam Access Point

ModelC9124AXD

Cisco C9124AXD access point: Wi-Fi 6 standardı, Kullanım: Dış Ortam, Wi-Fi 6 (802.11ax), Uplink/downlink OFDMA, Uplink/downlink MU‑MIMO technology.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: Dış Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Cisco RF ASIC

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	C9124AXD-x (x = regülasyon bölgesi), C9124AXD-EWC-X (x = regülasyon bölgesi)

Teknik Özellikler 13 satır

Supported WLAN controllers	Cisco Catalyst 9800 Series Wireless Controllers
802.11n Özellikleri	C9124AXI,C9124AXD; 4x4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams; C9124AXE; 4x4:4 in 2.4GHz + two 2x2:2 radios in 5 GHz uplink/downlink MU-MIMO; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g; 20- and 40-MHz channels; PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) …
802.11ac (Wi-Fi 5)	C9124AXI,C9124AXD; 4x4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams; C9124AXE; 4x4:4 in 2.4GHz + two 2x2:2 radios in 5 GHz uplink/downlink MU-MIMO; MRC; 802.11ac beamforming; 20-, 40-, 80- and 80+80-MHz channels; PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA3 support
802.11ax (Wi-Fi 6/6E)	C9124AXI,C9124AXD; 4x4:4 in both 2.4GHz and 5 GHz uplink/downlink MU-MIMO with four spatial streams; C9124AXE; 4x4:4 in 2.4GHz + two 2x2:2 radios in 5 GHz uplink/downlink MU-MIMO Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 80+80-MHz channels; PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU …
Dahili Anten	Catalyst 9124AXI; 2.4 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional; 5 GHz: Peak gain 7 dBi, internal antenna, Vertical Polarization, omnidirectional; BLE Antenna Gain: 5 dBi, internal antenna, Vertical Polarization, omnidirectional; Catalyst 9124AXD; 2.4 GHz: Peak gain 9 dBi, internal antenna, Dual Polarization, directional, Azimuth beamwidth 70 deg, elevation …
Harici Anten	Catalyst 9124AXE; The Catalyst 9124AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5GHz); Cisco offers the industry's broadest selection of; antennas, delivering optimal coverage for a variety of deployment scenarios.; Supports Self-Identifiable Antennas (SIA); For more details, see Catalyst 9124AX Series Getting Started Guide.
Arayüzler	Catalyst 9124AXI, 9124AXD, 9124AXE; 1x 100/1000/2500 BASE-T (Ethernet) uplink interface; 1x Gigabit Ethernet SFP; Supports PoE output (802.3af compliant PSE) on the 1x 10/100/1000 BASE-T (Ethernet) downlink interface if C9124AX powered from one of the following: UPOE or 802.3bt inline power source (Switch or Power Injector); DC input (with external power supply rated ³ 60W); Management console port (RJ-45)
Boyutlar (W x L x H)	Access point (without mounting brackets): 9124AXI, 9124AXD, 9124AXE: 10.2 x 9.2 x 3.2 in. (25.9 x 23.3 x 8.1 cm)
Ağırlık	9124AXI, 9124AXD; 6.5 lb. (2.9 kg); 9124AXE; 7 lb. (3.1 kg)
Input power requirements	802.3af Power over Ethernet (PoE), 802.3at PoE+, 802.3bt PoE++, Cisco Universal PoE (Cisco UPOE); Cisco power injector, AIR-PWRINJ-60RGD1= and AIR-PWRINJ-60RGD2=; Cisco power injector, AIR-PWRINJ6= (Note: This injector supports 802.3at); DC power source: Auxiliary DC input, 24V to 56V
Ortam Koşulları	Catalyst 9124AXI, 9124AXD, 9124AXE; Nonoperating (storage) temperature: -40° to 185°F (-40° to 85°C); Nonoperating altitude test: 17,000 ft (5182 m); Operating temperature: -40° to 149°F (-40° to 65°C) with no solar loading, -40° to 131°F (-40° to 55°C) with solar loading; Operating altitude test: 17,000 ft (5182 m); Operating humidity: 0% to 100% (condensing); IEC 60529 Ingress Rating: …
Tx Power, RSSI	For information about data rate, transmit power, and receive sensitivity, refer to; Cisco RF details (WIP)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings

Genel bakış

Cisco C9124AXD kullanım alanları ve özellikleri.

Cisco C9124AXD, Catalyst 9124 serisinden Wi-Fi 6 dış ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst 9124AX Series outdoor access points are next-generation Wi-Fi 6 access points encased in a rugged and robust design that service providers and enterprises can easily deploy.

With the emergence of high-density networks and the Internet of Things (IoT), we are more dependent on wireless networks than ever before. An increasing number of devices connect to the network every year, ranging from high-performance client devices to low-bandwidth IoT devices. The Cisco Catalyst 9124AX Series outdoor access points provide a seamless experience, with high scaling and unmatched performance in diverse network deployments. Going beyond the Wi-Fi 6 (802.11ax) standard, the Catalyst 9124AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: Dış Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Cisco RF ASIC
Bluetooth 5
Multigigabit Ethernet support

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6 standardı
Kullanım: Dış Ortam
Wi-Fi 6 (802.11ax)
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Cisco RF ASIC
Bluetooth 5
Multigigabit Ethernet support

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9124 Datasheet (EN)PDF · C9124AXD Catalyst 9124 Datasheet (PDF)PDF · C9124AXD

Sık sorulanlar

C9124AXD hakkında kısa yanıtlar.

C9124AXD fiyatı ne kadar?

C9124AXD için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
