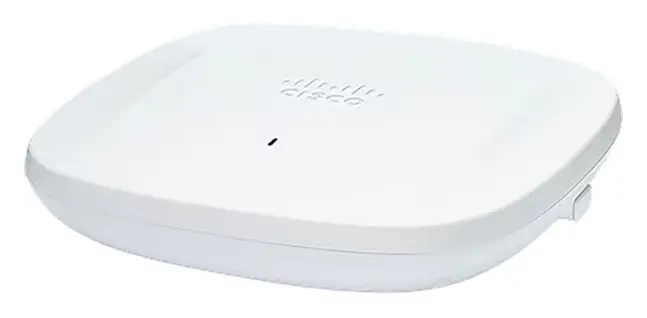

Cisco CW9162I Wi-Fi 6E İç Ortam Access Point

ModelCW9162I

Cisco CW9162I access point: Wi-Fi 6E standardı, Kullanım: İç Ortam, Wi-Fi 6 and Wi-Fi 6E (802.11ax), AP power optimizations (AP Power Save mode), Cisco CleanAir Pro.

Kablosuz standart: Wi-Fi 6E

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
Cisco CleanAir Pro
Band steering
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	CW9162I-x (x = regülasyon bölgesi), CW9162I-MR

Teknik Özellikler 27 satır

Supported wireless controllers	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)
802.11n Özellikleri	2x2 MIMO with two spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g; 20- and 40-MHz channels; PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive); 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac (Wi-Fi 5)	2x2 downlink MU-MIMO with two spatial streams; MRC; 802.11ac beamforming; 20-, 40-, and 80-MHz channels; PHY data rates up to 866.7 Mbps (2x2 80 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; Wi-Fi Protected Access (WPA) 3 support
802.11ax (Wi-Fi 6/6E)	2x2 uplink/downlink MU-MIMO with two spatial streams (6 GHz); 2x2 downlink MU-MIMO with two spatial streams (2.4 GHz and 5 GHz); Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (6 GHz); 20-, 40-, and 80-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz …
Dahili Anten	2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Arayüzler	1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) port; Management console port (RJ-45); USB 2.0 at 4.5W
Boyutlar (W x L x H)	Access point (without mounting brackets): 7.8 x 7.8 x 1.7 in. (200 x 200 x 44.45 mm)
Ağırlık	2.05 lb. (0.93 kg)
Input power requirements	802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+); Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6; 802.3af PoE (for 802.3af, see the matrix below for radio configuration); DC power input (12V/ MA-PWR-30W)
Ortam Koşulları	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)
System memory	2048 MB DRAM; 1024 MB flash
Sertifikalar	Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 6 GHz 802.11ax client access radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all five radios
Anten	Integrated omni-directional antennas; 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
Güç	Power over Ethernet: 37 - 42.5 V (802.3at compliant); DC Power Adapter (12V); Power consumption: Up to 30W; Minimum power requirement: 30W (802.3at complaint); Power over Ethernet injector and DC adapter sold separately; Actual power consumption may vary depending on the AP usage
Montaj	All Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included); Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes
Environment	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (non-condensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)
Boyutlar	7.8 x 7.8 x 1.7 in. (200 x 200 x 44.45 mm); Weight: 2.05 lb. (0.93 kg)
Physical security	Kensington lock slot
Reliability	Mean Time Between Failure (MTBF): 2,370,107 hrs at 77°F (25°C) operating temperature; 991,862 hrs at 113°F (45°C) operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); EAP Local Authentication - …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	One power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.3 ab/bz; 802.3at; 802.11a/b/g/n/ac/ax; 802.11d/h/i/k/r/u/v/w
Safety Approvals	CSA and CB 60950 & 62368; EN 60601 certified; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	FCC Part 15C; 15E RSS-247 (Canada); EN 300 328 ( v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (Australia/NZ); NOM-121 (Mexico); NCC LP0002 (Taiwan); For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	FCC Part 2 RSS-102 (Canada); EN 50385; EN 6231; EN 62479 (Europe); AS/NZS 2772 (Australia/NZ)

Genel bakış

Cisco CW9162I kullanım alanları ve özellikleri.

Cisco CW9162I, Catalyst 9162 serisinden Wi-Fi 6E iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst ™ 9162 Series Access Points (APs) allow you to choose between on-premises and cloud management. These next generation APs are perfect for small to medium-sized deployments and support the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent.

With the flexibility to choose between cloud and on-premises management, the Catalyst 9162 Series Access Points help protect your network investment and unlock the power of hybrid work. The Wi-Fi 6E-compliant access points take advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. They come with three 2x2 radios and provide a host of cutting-edge features.

Öne Çıkan Özellikler

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
Cisco CleanAir Pro
Band steering
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application hosting

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
Cisco CleanAir Pro
Band steering
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application hosting
Bluetooth 5.1
Container support for applications
Choice of management mode

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9162 Datasheet (EN)PDF · CW9162I Catalyst 9162 Datasheet (PDF)PDF · CW9162I Cisco Wireless 9162 Datasheet (EN)PDF · CW9162I

Sık sorulanlar

CW9162I hakkında kısa yanıtlar.

CW9162I fiyatı ne kadar?

CW9162I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
