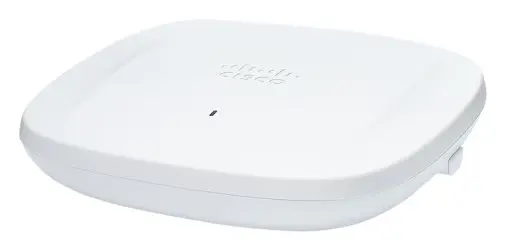

Cisco CW9166D1 Wi-Fi 6E Yönlü Antenli İç Ortam Access Point

ModelCW9166D1

Cisco CW9166D1 access point: Wi-Fi 6E standardı, Kullanım: Yönlü Antenli İç Ortam, Wi-Fi 6 and Wi-Fi 6E (802.11ax), XOR radio, Environmental sensors.

Kablosuz standart: Wi-Fi 6E

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6E standardı
Kullanım: Yönlü Antenli İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
XOR radio
Environmental sensors
Zero Wait DFS
AP power optimizations (AP Power Save Mode)
Cisco CleanAir Pro

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	CW9166D1-x (x = regülasyon bölgesi), CW9166D1-MR

Teknik Özellikler 27 satır

802.11n Özellikleri	4x4 MIMO with four spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g; 20- and 40-MHz channels; PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive); 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac (Wi-Fi 5)	4x4 downlink MU-MIMO with four spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.4 Gbps (Dual 4x4 80+80 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; Wi-Fi Protected Access (WPA) 3 support
802.11ax (Wi-Fi 6/6E)	1024 QAM; 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 GHz, 5 GHz and 6 GHz); Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (6 GHz); 20-, 40-, 80-, and 80+80-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 7.78 Gbps (4x4 160 MHz on 6 GHz, 4x4 80 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz); Packet …
Antenler	Catalyst 9166I; 2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz (XOR): Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; Catalyst 9166D1; 2.4 GHz: Peak gain 6 dBi, directional antenna, (70x70); 5 GHz: Peak gain 6 …
Arayüzler	Catalyst 9166 Series: 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0 at 4.5W
Boyutlar (W x L x H)	Access point (without mounting brackets): Catalyst 9166I: 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm); Catalyst 9166D1: 9.5 x 9.5 x 2.28 in (241.3 x 241.3 x 57.9 mm)
Ağırlık	Catalyst 9166I; 3.54 lb (1.60 kg); Catalyst 9166D1; 3.50 lb (1.59 kg)
Input power requirements	802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+); Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6; 802.3af PoE (only for configuration staging, all radios off); DC power input (54V/MA-PWR-50WAC)
Ortam Koşulları	Catalyst 9166 Series; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m); Catalyst 9166D1; Nonoperating (storage) temperature: -22° to 158°F (-30° to …
System memory	2048 MB DRAM; 1024 MB flash
Sertifikalar	Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy (BLE)
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 6 GHz 802.11ax client access radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; Due to the 6 GHz band requiring PMF some Air Marshal featurestions may not be effective; 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support …
Anten	CW9166I; 2.4 GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: (XOR) Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; CW9166D1; 2.4 GHz: Peak gain 6 dBi, directional antenna, (70x70); 5 GHz: Peak gain 6 dBi, directional …
Güç	Power over Ethernet: 42.5 - 57 V (PoE+ and UPoE compliant); DC Power Adapter (54V); Power requirement USB: Up to 30.5W (UPOE); Power requirement No USB: Up to 25W (PoE+); Power over Ethernet injector and DC adapter sold separately; Actual power consumption may vary depending on the AP usage
Montaj	All Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included); Articulating Arm (CW-MNT-ART2-00 optional); Desktop, ceiling, wall, and pole mount capable; Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes
Environment	CW9166I; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (non-condensing); Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m); CW9166D1; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating …
Boyutlar	CW9166I; 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm); Weight: 3.54 lb. (1.60 kg); CW9166D1; 9.5 x 9.5 x 2.28 in (241.3 x 241.3 x 57.9 mm); Weight: 3.50 lb (1.59 kg)
Physical security	Kensington lock slot
Reliability	Mean Time Between Failure (MTBF): 1,128,980 hrs at 77°F (25°C) operating temperature; 289,596 hrs at 122°F (50°C) operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); EAP Local authentication - …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	One power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.3 ab/bz; 802.3 af/at/bt; 802.11a/b/g/n/ac/ax; 802.11d/h/i/k/r/u/v/w
Safety Approvals	CSA and CB 60950 & 62368; EN 60601 certified; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	FCC Part 15C; 15E RSS-247 (Canada); EN 300 328 ( v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (Australia/NZ); NOM-121 (Mexico); NCC LP0002 (Taiwan); For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	FCC Part 2 RSS-102 (Canada); EN 50385; EN 6231; EN 62479 (Europe); AS/NZS 2772 (Australia/NZ)

Genel bakış

Cisco CW9166D1 kullanım alanları ve özellikleri.

Cisco CW9166D1, Catalyst 9166 serisinden Wi-Fi 6E yönlü antenli iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst ™ 9166 Series Access Points (APs) allow you to choose between on-premises and cloud management. These next-generation APs are perfect for mission-critical deployments and support the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent.

Catalyst 9166D1, pictured with different configurations utilizing a bracket [AIR-AP-Bracket-2] and articulating arm [CW-MNT-ART2-00]

Öne Çıkan Özellikler

Wi-Fi 6E standardı
Kullanım: Yönlü Antenli İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
XOR radio
Environmental sensors
Zero Wait DFS
AP power optimizations (AP Power Save Mode)
Cisco CleanAir Pro
Client steering
Uplink/downlink OFDMA
Uplink/downlink MU-MIMO technology
BSS coloring

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6E standardı
Kullanım: Yönlü Antenli İç Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
XOR radio
Environmental sensors
Zero Wait DFS
AP power optimizations (AP Power Save Mode)
Cisco CleanAir Pro
Client steering
Uplink/downlink OFDMA
Uplink/downlink MU-MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application hosting
Bluetooth 5.1

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9166 Datasheet (EN)PDF · CW9166D1 Catalyst 9166 Datasheet (PDF)PDF · CW9166D1 Cisco Wireless 9166 Datasheet (EN)PDF · CW9166D1

Sık sorulanlar

CW9166D1 hakkında kısa yanıtlar.

CW9166D1 fiyatı ne kadar?

CW9166D1 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
