Cisco

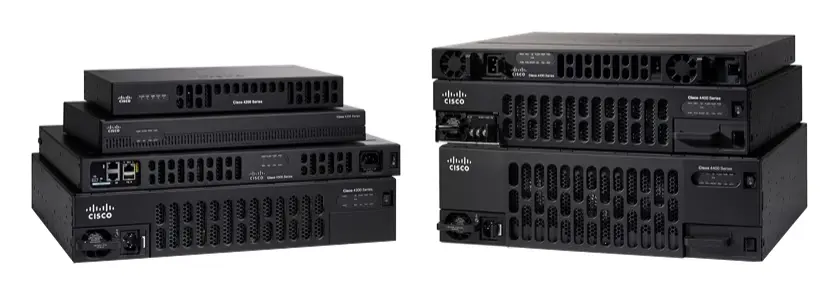

Cisco ISR4221 ISR 4000 Router
Model
ISR4221Cisco ISR4221 router: ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default, Performance Throughput Service reliability, Lower WAN expenditures, Superior and secure user application experiences, IT consolidation, space savings, and improv.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 30 satır
| Aggregate Throughput (Default) | 35Mbps |
|---|---|
| Aggregate Throughput (Performance License) | 75 Mbps |
| Aggregate CEF Only Throughput (Boost License) | 1.2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 2 |
| RJ-45-based ports | 2 |
| SFP-based ports | 1 |
| Enhanced service-module slots | 0 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | No |
| Onboard ISC slot | No |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | 4GB; 8GB (4221X) |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 4GB; 8GB (4221X) |
| Default flash memory | 8GB |
| Maximum flash memory | 8GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 0 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 (combo CON/AUX port) |
| Power-supply options | External AC only |
| Temperature | 32 to 104°F; (0 to 40°C) |
| Altitude (China) | 0 – 6,560 ft.; (0 – 2,000 m) |
| Altitude (Rest of the world) | 0 – 10,000 ft.; (0 – 3,050 m) |
| Bağıl Nem | 5% to 85% |
| Short-term humidity | 5% to 90%, not to exceed 0.024 kg water/kg of dry air |
| Acoustics: Sound pressure (Typical/ maximum) | 28.5/53 dBA |
| Acoustics: Sound power (Typical/ maximum) | 41/68 dBA |
| Rakım | 15,584 ft (4750m) |
| Cisco IOS Embedded Event Manager (EEM) | A distributed and customized approach to event detection and recovery.; Offers the ability to monitor events and take informational, corrective, or any desired EEM action when the monitored events occur or when a threshold is reached. |
| Cisco IOS XE IP Service-Level Agreements (IP SLAs) | Helps assure the performance of new business-critical IP applications as well as IP services that use data and voice in an IP network. |
Güç 10 satır
| AC Giriş Gerilimi | 100 to 240 VAC autoranging |
|---|---|
| DC Input Voltage Input Voltage Input Current | NA; NA |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 1.5 to 0.6A |
| AC input surge current | 90 A peak and less than 3 Arms per half cycle |
| Typical power (no modules) (watts) | 24 |
| Maximum power with AC power supply (watts) | 90 |
| Maximum power with PoE power supply (platform only) (watts) | NA (No PoE Support) |
| Maximum endpoint PoE power available from PoE power supply (watts) | NA (No PoE Support) |
| Maximum endpoint PoE power capacity with PoE boost (watts) | NA (No PoE Support) |
Fiziksel Özellikler 11 satır
| Boyutlar (Y x G x D) | 1.72 x 12.7 x 10"; (43.7 x 322.6 x 254 mm) |
|---|---|
| External Power Supply Dimensions (H x W x D) | 37 x 73 x 152 mm (Phihong mfg PN: AA90U-120A-R); 36.5 x 67 x 155 mm (Delta mfg PN: ADP90GR BA) |
| Shipping Box Dimensions (H x W x D) | 4.13 x 18.25 x 12.94"; (104.9 x 463.6 x 328.7 mm) |
| Rack height | 1 Rack Unit (1RU) |
| Rack-mount 19in. (48.3 cm) EIA | Optional |
| Wall-mount | Yes |
| Ağırlık with AC PS (no modules) | 7.1 lb (3.22kg) |
| Typical weight (fully loaded with modules) | 8.11 lb (3.68kg) |
| Packaging Weight | 1.28 lb (0.58kg) |
| Airflow | I/O side to bezel side |
| MTBF (saat) | 593270 |
Sertifikalar ve Uyumluluk 3 satır
| Güvenlik Sertifikaları | UL 60950-1; CAN/CSA C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; IEC 60950-1 |
|---|---|
| EMC | ICES-003 Class A; EN55032 Class A; CISPR32 Class A; AS/NZS CISPR 32 Class A; VCCI V-3; CNS 13438; EN 300-386; EN 61000 (Immunity); EN 55024, CISPR 24; KN22, KN24 |
| Telecom | TIA-968-B; CS-03; ANSI T1.101; ITU-T G.823, G.824; IEEE 802.3; RTTE Directive; Homologation requirements vary by country and interface type. For specific country information, refer to the online approvals data base at: https://www.ciscofax.com/ |
Yazılım Özellikleri 4 satır
| Protokoller | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast … |
|---|---|
| Encapsulations | Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) |
| Traffic management | QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR) and NBAR. |
| Cryptographic Algorithms | Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
Sipariş Bilgileri 3 satır
| Sipariş Kodları (PID) | ISR4221/K9 |
|---|---|
| Ürün Tanımı (Üretici) | ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default |
| Satış Sonu (End-of-Sale) Tarihi | 07.11.2023 |
Genel bakış
Cisco ISR4221 kullanım alanları ve özellikleri.
Cisco ISR4221, ISR 4000 ailesinden şube ve kurumsal ağlar için router platformudur.
Cisco ® 4000 Family Integrated Services Routers (ISRs) form a Software Defined WAN platform that delivers the performance, security, and convergence capabilities that today’s branch offices need.
The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS), VPNs and the Internet.
Öne Çıkan Özellikler
- ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
- Multicore processors
- Embedded IP Security (IPsec) VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- USB-based console access
Tüm özellikler
- ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
- Multicore processors
- Embedded IP Security (IPsec) VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- USB-based console access
- Optional integrated power supply for distribution of PoE
- Optional integrated Redundant Power Supply (RPS)
- Cisco Enhanced Services Module (SM-X)
- Cisco Network Interface Modules (NIMs)
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
ISR4221 hakkında kısa yanıtlar.
ISR4221 fiyatı ne kadar?
ISR4221 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
