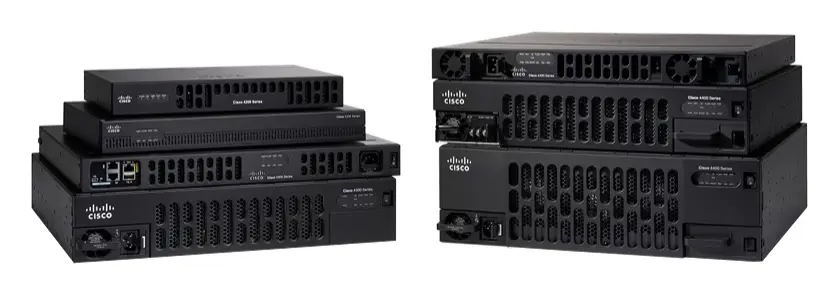

Cisco ISR4461 ISR 4000 Router
Model
ISR4461Cisco ISR4461 router: Performance Throughput Service reliability, Lower WAN expenditures, Superior and secure user application experiences, IT consolidation, space savings, and improved Total Cost of Ownership (TCO), Business continuity and increased resiliency.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
- Multicore processors
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Teknik Özellikler 34 satır
| Aggregate Throughput (Default) | 1.5Gbps |
|---|---|
| Aggregate Throughput (Performance License) | 3Gbps |
| Aggregate CEF Only Throughput (Boost License) | Over 7Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| Total onboard WAN or LAN 10Gbps ports | 2 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 3 |
| Doublewide service-module slots | 2 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory DDR3 ECC DRAM (data plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 4 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 8 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 32 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC and PoE |
| Redundant power supply | Internal: AC, DC and PoE |
| Temperature | 32 to 104°F; (0 to 40°C) |
| Altitude (China) | 0 – 6,560 ft.; (0 – 2,000 m) |
| Altitude (Rest of the world) | 0 – 10,000 ft.; (0 – 3,050 m) |
| Bağıl Nem | 5% to 85% |
| Short-term humidity | 5% to 90%, not to exceed 0.024 kg water/kg of dry air |
| Acoustics: Sound pressure (Typical/ maximum) | 50.6/73.1 dBA |
| Acoustics: Sound power (Typical/ maximum) | Z |
| Rakım | 15,584 ft (4750m) |
| Cisco IOS Embedded Event Manager (EEM) | A distributed and customized approach to event detection and recovery.; Offers the ability to monitor events and take informational, corrective, or any desired EEM action when the monitored events occur or when a threshold is reached. |
| Cisco IOS XE IP Service-Level Agreements (IP SLAs) | Helps assure the performance of new business-critical IP applications as well as IP services that use data and voice in an IP network. |
Güç 10 satır
| AC Giriş Gerilimi | 100 to 240 VAC autoranging |
|---|---|
| DC Input Voltage Input Voltage Input Current | 48 – 60V; 12A Max |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Maximum power with AC power supply (watts) | 1000W (no PoE) |
| Maximum power with DC power supply (watts) | 437 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant; 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
Fiziksel Özellikler 8 satır
| Boyutlar (Y x G x D) | 3.5 x 17.25 x 18.5 in; (88.9 x 438.15 x 469.9 mm) |
|---|---|
| Shipping Box Dimensions (H x W x D) | 9.75 x 22.25 x 26 in; (24.76 x 56.51 x 66.04 mm) |
| Rack height | 3 Rack Units (3RU) |
| Rack-mount 19in. (48.3 cm) EIA | Included |
| Rack-mount 23in. (58.4 cm) EIA | Optional |
| Wall-mount | No |
| Airflow | I/O side to bezel side |
| MTBF (saat) | 480770 |
Sertifikalar ve Uyumluluk 3 satır
| Güvenlik Sertifikaları | UL 60950-1; CAN/CSA C22.2 No. 60950-1; EN 60950-1; AS/NZS 60950-1; IEC 60950-1 |
|---|---|
| EMC | 47 CFR, Part 15; ICES-003 Class A; EN55032 Class A; CISPR32 Class A; AS/NZS CISPR 32 Class A; VCCI V-3; CNS 13438; EN 300-386; EN 61000 (Immunity); EN 55024, CISPR 24; KN22, KN24 |
| Telecom | T1; IC CS-03:2004; TIA-968-B:2009; HKTA 2028:2010; HKTA 2017:2010; HKTA 2015: 2006; G.703:2001; ID0002:2007; IS6100:2004; DSPR Gray Book:2000; DSPR Technical Condition: 2004; E1; AS/ACIF S016: 2001; AS/ACIF S038: 2001; G.703:2001; TBR 4:1995; TBR 12:1993; TBR 13:1996; RRA 2009-38; (RRL 2005-96); IDA TS DLCN:2011; IDA TS ISDN PRA:2005; IS6100: 2004; PTC 220:2008; Ethernet; IEEE 802.3; ANSA X3.263 |
Yazılım Özellikleri 4 satır
| Protokoller | IPv4, IPv6, static routes, Routing Information Protocol Versions 1 and 2 (RIP and RIPv2), Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Border Gateway Protocol (BGP), BGP Router Reflector, Intermediate System-to-Intermediate System (IS-IS), Multicast Internet Group Management Protocol Version 3 (IGMPv3), Protocol Independent Multicast sparse mode (PIM SM), PIM Source Specific Multicast … |
|---|---|
| Encapsulations | Generic routing encapsulation (GRE), Ethernet, 802.1q VLAN, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), Frame Relay, Multilink Frame Relay (MLFR) (FR.15 and FR.16), High-Level Data Link Control (HDLC), Serial (RS-232, RS-449, X.21, V.35, and EIA-530), and PPP over Ethernet (PPPoE) |
| Traffic management | QoS, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Hierarchical QoS, Policy-Based Routing (PBR) and NBAR. |
| Cryptographic Algorithms | Encryption: DES, 3DES, AES-128 or AES-256 (in CBC and GCM modes); Authentication: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA-512 |
Sipariş Bilgileri 3 satır
| Sipariş Kodları (PID) | ISR4461/K9 |
|---|---|
| Ürün Tanımı (Üretici) | Cisco ISR 4461 with 4 onboard GE, 3 NIM slots, 1 ISC slot, 3 SM slots, 8 GB Flash Memory default, 2 GB DRAM default (data plane), 4 GB DRAM default (control plane) |
| Satış Sonu (End-of-Sale) Tarihi | 20.01.2025 |
Genel bakış
Cisco ISR4461 kullanım alanları ve özellikleri.
Cisco ISR4461, ISR 4000 ailesinden şube ve kurumsal ağlar için router platformudur.
Cisco ® 4000 Family Integrated Services Routers (ISRs) form a Software Defined WAN platform that delivers the performance, security, and convergence capabilities that today’s branch offices need.
The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS), VPNs and the Internet.
Öne Çıkan Özellikler
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
- Multicore processors
- Embedded IP Security (IPsec) VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- USB-based console access
- Optional integrated power supply for distribution of PoE
Tüm özellikler
- Performance Throughput Service reliability
- Lower WAN expenditures
- Superior and secure user application experiences
- IT consolidation, space savings, and improved Total Cost of Ownership (TCO)
- Business continuity and increased resiliency
- Lower telephony costs with VoIP and rich media experiences
- Easier manageability and support
- Multicore processors
- Embedded IP Security (IPsec) VPN hardware acceleration
- Integrated Gigabit Ethernet ports
- USB-based console access
- Optional integrated power supply for distribution of PoE
- Optional integrated Redundant Power Supply (RPS)
- Cisco Enhanced Services Module (SM-X)
- Cisco Network Interface Modules (NIMs)
- Cisco Integrated Services Card (ISC) slot on motherboard
