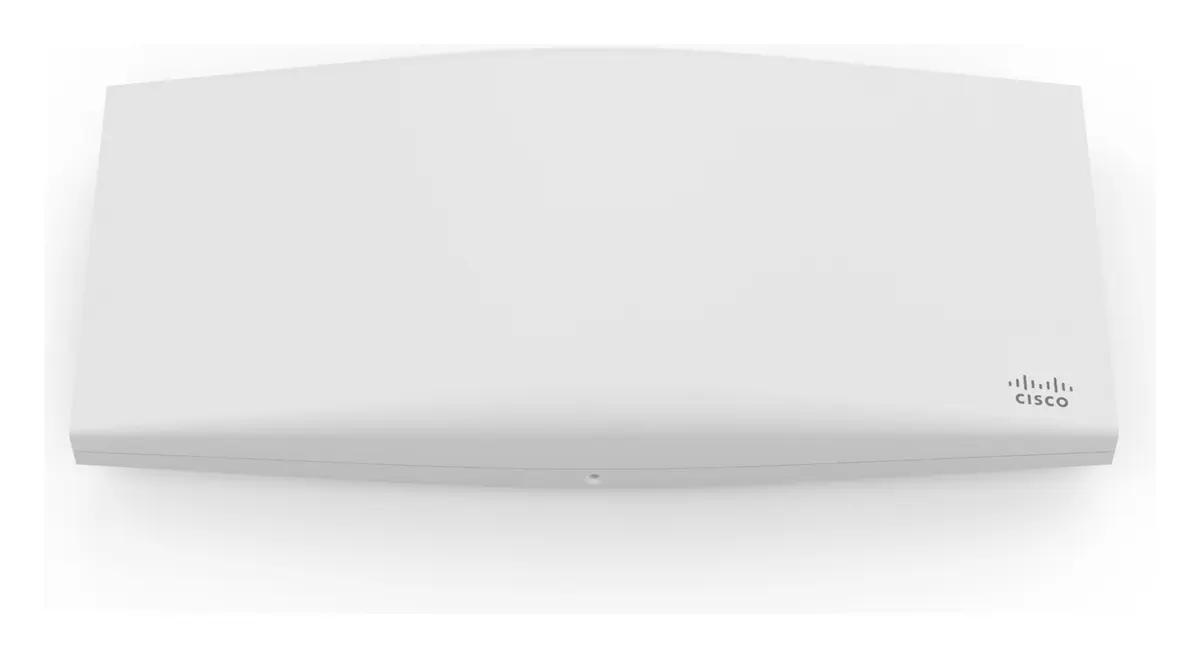

Cisco MR36 Meraki MR36 Wi-Fi 6 İç Ortam Access Point

ModelMR36

Cisco MR36 access point: Wi-Fi 6 standardı, Kullanım: İç Ortam.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: İç Ortam

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support; Concurrent operation of all four radios; Supported frequency bands (country-specific restrictions apply): 2.412 - 2.484 GHz; 5.150 - 5.250 GHz …
Anten	Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring; 2 x 2 multiple input, multiple output (MIMO) with two spatial streams; SU-MIMO, UL MU-MIMO** and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz* channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax); Note: *40MHz channels are supported only in the 5GHz …
Güç	Power over Ethernet: 37 - 57 V (802.3af compatible); Alternative: 12 V DC input; Power consumption: 15W max (802.3af). Note: actual power consumption may vary depending on the AP usage.; Power over Ethernet injector and DC adapter sold separately; Note: Actual power consumption may vary depending on the AP usage.
Arayüzler	1x 10/100/1000 BASE-T Ethernet (RJ45); 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Montaj	All standard mounting hardware included; Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes; Bubble level on mounting cradle for accurate horizontal wall mounting
Environment	Operating temperature: 32 °F to 104 °F (0 °C to 40 °C); Humidity: 5 to 95% non-condensing; Operating altitude: Up to 40,000 feet (12,192 meters)
Boyutlar	9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate; Weight: 17.35 oz (492 g)
Physical Security	Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head); Kensington lock hard point; Concealed mount plate with anti-tamper cable bay
Reliability	Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	1 power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u***
Safety Approvals	CSA and CB 60950 & 62368; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247; Europe: EN 300 328, EN 301 893; Australia/NZ: AS/NZS 4268; Mexico: IFT, NOM-208; Taiwan: NCC LP0002; For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003; Europe: EN 301 489-1-17, EN 55032, EN 55024; Australia/NZ: CISPR 22; Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102; Europe: EN 50385, EN 62311, EN 62479; Australia/NZ: AS/NZS 2772

Sipariş Bilgileri 1 satır

Planlanan Satış Sonu (End-of-Sale) Tarihi	31.12.2026

Genel bakış

Cisco MR36 kullanım alanları ve özellikleri.

Cisco MR36, Meraki MR36 serisinden Wi-Fi 6 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır; Meraki bulut panelinden yönetilir.

The Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.

The MR36 provides a maximum of 1.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: İç Ortam

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Meraki MR36 Datasheet (EN)PDF · MR36

Sık sorulanlar

MR36 hakkında kısa yanıtlar.

MR36 fiyatı ne kadar?

MR36 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
