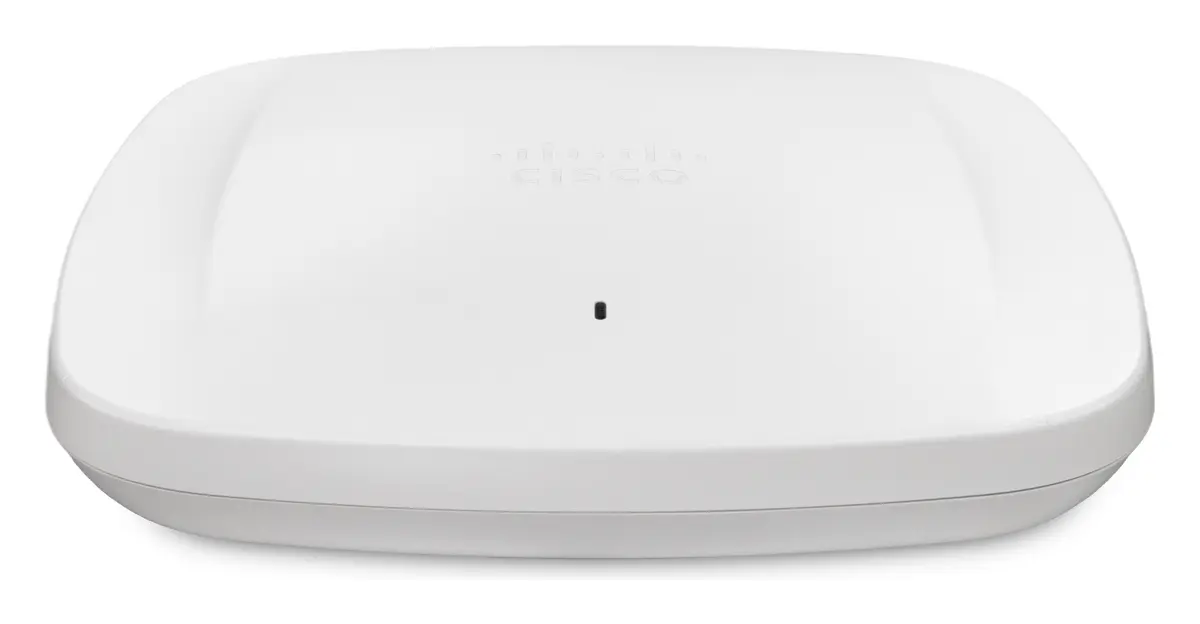

Cisco MR57 Meraki MR57 Wi-Fi 6E İç Ortam Access Point

ModelMR57

Cisco MR57 access point: Wi-Fi 6E standardı, Kullanım: İç Ortam.

Kablosuz standart: Wi-Fi 6E

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6E standardı
Kullanım: İç Ortam

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 6 GHz 802.11ax client access radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy radio with beacon and scanning support concurrent operation of all five radios
Anten	Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz, and 5.5 dBi gain at 6GHz)
802.11ax, 802.11ac Wave 2 and 802.11n capabilities	DL-OFDMA, TWT support, BSS coloring; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 6 GHz; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 5 GHz; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams on 2.4 GHz; SU-MIMO, UL and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz channels (802.11n); …
Güç	Power over Ethernet: 42.5 - 57V (PoE+ and 802.3bt compliant); Alternative 54V DC input via DC adapter; Power consumption: 30W to 40W (802.3bt); Minimum power requirement: 30W (PoE+, USB is disabled); Maximum power consumption: 40W; Power over Ethernet injector and DC adapter sold separately.; Note: Actual power consumption may vary depending on the AP usage.
Arayüzler	2x 100/1000/2.5G/5G BASE-T Ethernet (RJ45); 1x DC power connector (5.5 mm x 2.5 mm, center positive)
Montaj	All standard mounting hardware included (AIR-AP-BRACKET-2); Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes
Environment	Operating temperature: 32 °F - 104 °F (0 °C - 40 °C); Humidity: 5% to 95% non-condensing
Boyutlar	260 mm x 260 mm x 56 mm, including desk-mount feet or mount plate; Weight: 1.7 kg
Physical Security	Kensington lock slot; Concealed mount plate with anti-tamper cable bay
Reliability	Mean time between failure (MTBF): 998,440 hrs at +25° C operating temperature
Security	Integrated layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); …
Quality of Service	Advanced power save (U-APSD); WMM access categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, and 802.11r for fast layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global layer 7 traffic analytics reporting per network, per device, and per application
LED Göstergeleri	One power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, 802.11w and 802.11u
Safety Approvals	CSA and CB 60950 & 62368; Conforms to UL 2043 (Plenum Rating); EN 60601 Certified
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247; Europe: EN 300 328, EN 301 893; Australia/NZ: AS/NZS 4268; Mexico: IFT, NOM-208; Taiwan: NCC LP0002; For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003; Europe: EN 301 489-1-17, EN 55032, EN 55024; Australia/NZ: CISPR 22; Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102; Europe: EN 50385, EN 62311, EN 62479; Australia/NZ: AS/NZS 2772

Genel bakış

Cisco MR57 kullanım alanları ve özellikleri.

Cisco MR57, Meraki MR57 serisinden Wi-Fi 6E iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır; Meraki bulut panelinden yönetilir.

Tri-band 802.11ax-compatible access point with separate radios dedicated to security, RF management, and Bluetooth® coupled with dual Ethernet ports and a USB port for added connectivity options.

MR57 supports a software defined flex radio which can be toggled between a 5 GHz and 6 GHz. This provides an option to operate MR57 in either a dual 5 GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6 GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6 GHz support ensures that the MR57 supports future technologies.

Öne Çıkan Özellikler

Wi-Fi 6E standardı
Kullanım: İç Ortam

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Meraki MR57 Datasheet (EN)PDF · MR57

Sık sorulanlar

MR57 hakkında kısa yanıtlar.

MR57 fiyatı ne kadar?

MR57 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
