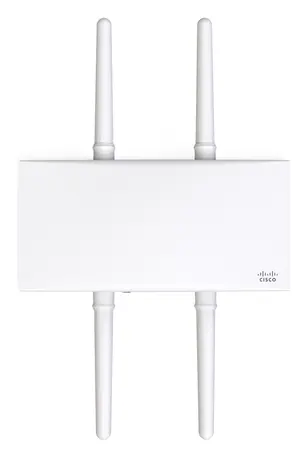

Cisco MR76 Meraki MR76 Wi-Fi 6 Dış Ortam Access Point

ModelMR76

Cisco MR76 access point: Wi-Fi 6 standardı, Kullanım: Dış Ortam.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: Dış Ortam

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support; Concurrent operation of all four radios; Supported frequency bands (country-specific restrictions apply); Supported frequency bands (country-specific …
Anten	List of compatible antennas: MA-ANT-20/21/23/25/27; Antenna are not included, please see "Ordering Information"
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring; 2 x 2 multiple input, multiple output (MIMO) with two spatial streams; SU-MIMO, UL MU-MIMO** and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz* channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax); Note: *40MHz channels are supported only in the 5GHz band.; …
Güç	Power over Ethernet: 802.3af protocol compatible; Power consumption: 15W max (802.3af); Power over Ethernet injector sold separately; Note: Actual power consumption may vary depending on the AP usage.
Arayüzler	1x 10/100/1000 BASE-T Ethernet (RJ45)
Montaj	All standard mounting hardware included; Mounts to walls and vertical poles.
Environment	Operating and storage temperature: -40 °F to 131 °F (-40 °C to 55 °C); Operating and storage humidity: 5 to 95% non-condensing; Operating and storage altitude: Up to 40,000 feet (12,192 meters); IP67 Environmental rating
Boyutlar	11.81” x 6.02” x 2.16” (30.0 cm X 15.3 cm X 5.5 cm), not including cable gland, mounts and antennas; Weight: 1.34 kg
Physical Security	Two security screws; Concealed mount plate with anti-tamper cable bay
Reliability	Mean Time Between Failure (MTBF): 1,315,612hrs at +25°C operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	1 power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u***
Safety Approvals	CSA and CB 60950 & 62368; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247; Europe: EN 300 328, EN 301 893; Australia/NZ: AS/NZS 4268; Mexico: IFT, NOM-208; Taiwan: NCC LP0002; For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003; Europe: EN 301 489-1-17, EN 55032, EN 55024; Australia/NZ: CISPR 22; Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102; Europe: EN 50385, EN 62311, EN 62479; Australia/NZ: AS/NZS 2772

Genel bakış

Cisco MR76 kullanım alanları ve özellikleri.

Cisco MR76, Meraki MR76 serisinden Wi-Fi 6 dış ortam kullanım için tasarlanmış kurumsal access point cihazıdır; Meraki bulut panelinden yönetilir.

The Cisco Meraki MR76 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR76 offers high throughput, enterprise-grade security, and simple management.

The MR76 provides a maximum of 1.5 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: Dış Ortam

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Meraki MR76 Datasheet (EN)PDF · MR76

Sık sorulanlar

MR76 hakkında kısa yanıtlar.

MR76 fiyatı ne kadar?

MR76 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
