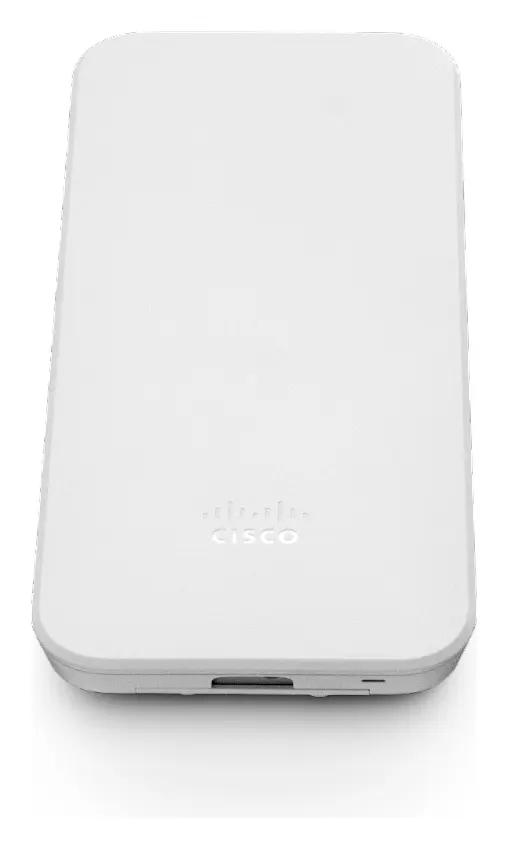

Cisco MR78 Meraki MR78 Wi-Fi 6 Dış Ortam Access Point

ModelMR78

Cisco MR78 access point: Wi-Fi 6 standardı, Kullanım: Dış Ortam.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6 standardı
Kullanım: Dış Ortam

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 2.4 GHz Bluetooth Low Energy (BLE 5) radio with Beacon and BLE scanning support; 5 GHz 802.11a/n/ac/ax client access radio; Supported frequency bands (country-specific restrictions apply); Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz; 5.150-5.250 GHz (UNII-1); 5.250-5.350 GHZ (UNII-2); 5.490 - 5.730 GHz (UNII-2C); …
Anten	Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS Coloring; 2 x 2 multiple input, multiple output (MIMO) with two spatial streams; SU-MIMO, UL MU-MIMO** and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz* channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax); Note: *40MHz channels are supported only in the 5GHz band.; …
Güç	Power over Ethernet: 37 - 57 V (802.3af compatible); Alternative: 12 V DC input; Power consumption: 15W max (802.3af).; Power over Ethernet injector and DC adapter sold separately; Note: Actual power consumption may vary depending on the AP usage.
Arayüzler	1x 10/100/1000 BASE-T Ethernet (RJ45)
Montaj	All standard mounting hardware included; Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes; Bubble level on mounting cradle for accurate horizontal wall mounting
Environment	IP67; Operating temperature: -4 °F to 131 °F (-20 °C to 55 °C); Humidity: 5 to 95% non-condensing; Operating altitude: Up to 40,000 feet (12,192 meters)
Boyutlar	9.65” x 4.53” x 1.18” (245 mm x 115 mm x 30 mm); Weight: 15.87 oz (0.45 kg)
Physical Security	Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head); Concealed mount plate with anti-tamper cable bay
Reliability	Mean Time Between Failure (MTBF): 257,215hrs at +25°C operating temperature
Security	Integrated Layer 7 firewall with mobile device policy management; WIDS/WIPS with alerting and rogue AP detection with Air Marshal (performed opportunistically with best-effort on client-serving radios); Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	1 power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u***
Safety Approvals	CSA and CB 60950 & 62368; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	Canada: FCC Part 15C, 15E, RSS-247; Europe: EN 300 328, EN 301 893; Australia/NZ: AS/NZS 4268; Mexico: IFT, NOM-208; Taiwan: NCC LP0002; For additional country-specific regulatory information, please contact Meraki Sales
EMI Approvals (Class B)	Canada: FCC Part 15B, ICES-003; Europe: EN 301 489-1-17, EN 55032, EN 55024; Australia/NZ: CISPR 22; Japan: VCCI
Exposure Approvals	Canada: FCC Part 2, RSS-102; Europe: EN 50385, EN 62311, EN 62479; Australia/NZ: AS/NZS 2772

Genel bakış

Cisco MR78 kullanım alanları ve özellikleri.

Cisco MR78, Meraki MR78 serisinden Wi-Fi 6 dış ortam kullanım için tasarlanmış kurumsal access point cihazıdır; Meraki bulut panelinden yönetilir.

The Cisco Meraki MR78 is a Dual-band, 802.11ax, 2x2:2, cloud managed entry level outdoor Access Point. Designed for basic, medium-density deployments, the MR78 provides enterprise grade security and simple management in a ruggedized IP67-rated form factor.

With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, enterprise-grade security, the MR78 makes an outstanding platform to provide reliable Wi-Fi for small business and home office networks that want reliable and secure wireless connectivity.

Öne Çıkan Özellikler

Wi-Fi 6 standardı
Kullanım: Dış Ortam

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Meraki MR78 Datasheet (EN)PDF · MR78

Sık sorulanlar

MR78 hakkında kısa yanıtlar.

MR78 fiyatı ne kadar?

MR78 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
