Kablosuz Access Point Wi-Fi 6 outdoor APs

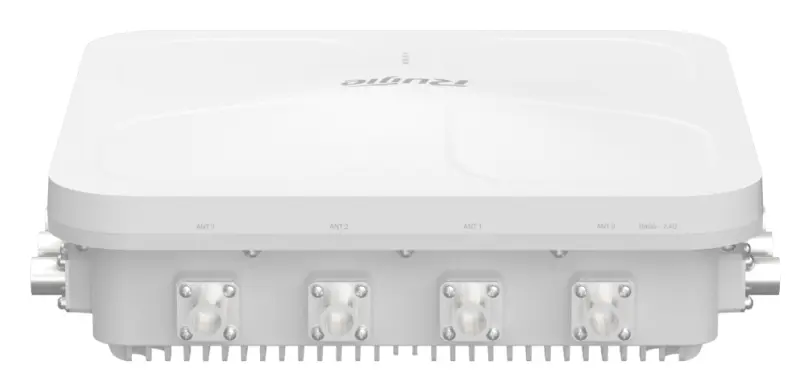

Ruijie RG-AP680-AR Wi-Fi 6 Dört Radyolu Dış Ortam Access Point

ModelRG-AP680-AR

Ruijie RG-AP680-AR access point: 10G Optical Port and 5G Ethernet Port for Flexible Networking, Upgraded to Wi-Fi 6, a combined data rate of up to 10.755 Gbps, Industrial-grade product design, IP68 rating, 6 kV lightning protection, Operating temperature: –40°C to +70°C, Independent AI radio.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

10G Optical Port and 5G Ethernet Port for Flexible Networking
Upgraded to Wi-Fi 6, a combined data rate of up to 10.755 Gbps
Industrial-grade product design, IP68 rating, 6 kV lightning protection, Operating temperature: –40°C to +70°C
Independent AI radio for secure scanning, safeguarding wireless network security
Unified WIS cloud management, intelligent O&M

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 18 satır

802.11n	14 spatial streams; Radio 1 – 2.4 GHz: 4x4 MIMO, four spatial streams; Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 4 – AI Radio, 2.4 GHz/5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Radio 3 – 5 GHz: 20 MHz and 40 MHz; Radio 4 – AI Radio, 2.4 GHz/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 1.800 Gbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 600 Mbps (MCS0 to MCS3
802.11ac	10 spatial streams; Radio 2 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 MIMO, four spatial streams; Radio 4 – AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 4 – AI Radio, 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 6.934 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); Radio 3 – 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); R
802.11ax	12 spatial streams; Radio 1 – 2.4 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 2 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 3 – 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 10.755 Gbps; Radio 1 – 2.4 GHz: 8.6 Mbps to 1.147 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6
Anten	Wi-Fi; 2.4 GHz: four built-in omnidirectional antennas, with peak antenna gain of 6 dBi.; 5 GHz: eight built-in omnidirectional antennas, with peak antenna gain of 8 dBi.; Bluetooth; One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4 dBi.
Port	1 x 100/1000/2.5G/5GBASE-T port; 1 x 100/1000BASE-T port; 2 x 10GE SFP+ ports, compatibility with 1GE and 2.5GE modules; 1 x RJ45 console port (serial console port); 1 x Bluetooth 5.1
Status LED	1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating; Three single-color signal strength LEDs:; Whether bridging is enabled; Whether bridging is successful; Wireless signal strength after successful bridging
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x D x Y)	Main unit: 300 mm x 300 mm x 94 mm (11.81 in. x 11.81 in. x 3.70 in.); Shipping: 470 mm x 410 mm x 170 mm (18.50 in. x 16.14 in. x 6.69 in.)
Ağırlık	Main unit: 4.3 kg (9.48 lbs); Mounting bracket: 1.2 kg (2.65 lbs); Shipping: 7.18 kg (15.83 lbs)
Montaj	Wall/Pole-mounting (a mounting bracket is delivered with the main unit)
Input power supply	The AP supports the following two power supply modes:; 100–240 V AC power supply: The AC power supply needs to be purchased separately.; PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).; Note: If both AC power and PoE are available, AC power is preferred.
Maks. Güç Tüketimi	Maximum power consumption: 50 W; AC power: 50 W, 2.4 GHz radio 4x4, 5 GHz radio1 4x4, 5 GHz radio2 4x4, AI radio enabled, LAN 2 for PoE supply; 802.3bt (PoE++) : 50 W, 2.4 GHz radio 4x4, 5 GHz radio1 4x4, 5 GHz radio2 4x4, AI radio enabled, LAN 2 for PoE supply; 802.3at (PoE+) : 25 W, 2.4 GHz radio 4x4, 5 GHz radio1 4x4, 5 GHz radio2, AI Radio disabled, LAN 2 fails to provide power for external devices.; 802.3af (PoE) : 12.95 W, all radios do not work, and LAN 2 fails to provide power for extern
Ortam Koşulları	Storage temperature: –40°C to +85°C (–40°F to +185°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –40°C to +70°C (–40°F to +158°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +3,000 m (–1,640.42 ft. to +9,842.52 ft.); Note: At an altitude in the range of 1,800–3,000 m (5,905.51–9,842.52 ft.), every time the altitude increases by 220 m (721.78 ft.), the m
IP Koruma Sınıfı	IP68
Aşırı Gerilim Koruması	6 kV
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	2 GB DRAM, 256 MB flash
Yayın Gücü	2.4 GHz; Maximum transmit power: 29 dBm (794.33 mW); Minimum transmit power: 9 dBm (7.94 mW); 5 GHz; Maximum transmit power: 27 dBm (501.19 mW); Minimum transmit power: 7 dBm (5.01 mW); Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Radio Frequency Performance 17 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS11
5 GHz, 802.11ax (HE160)	MCS0; MCS11

Basic Functions 1 satır

Applicable software version	RGOS11.9(6)W1B5 or later

WLAN 11 satır

Maximum number of associated STAs	1,536 (up to 512 STAs per radio)
Maximum number of BSSIDs	48 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs	16
STA management	SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification; Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless locating	MU and TAG device locating
Application management	Application identification

Security and Authentication 6 satır

Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP, GCMP)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	Wireless Intrusion Detection System(WIDS); User isolation; Rogue AP detection and containment
ACL	IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC)
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP)

Routing and Switching 9 satır

MAC	Static and filtered MAC addresses; MAC address table size: 2,048; Maximum number of static MAC addresses: 2,048; Maximum number of filtered MAC addresses: 2,048
Ethernet	Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q; Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)
VLAN	Interface-based VLAN assignment; Maximum number of SVIs: 187; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094
ARP	ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 2,048; ARP check
IPv4 services	Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG
IPv6 services	IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, IPv6 ping; IPv6 DHCP client
IP Yönlendirme	IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast-to-unicast conversion
VPN	PPPoE client; IPsec VPN

Network Management and Monitoring 4 satır

Ağ Yönetimi	NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging
Network management platform	Web management (Eweb)
User access management	Telnet, SSH, FTP client, FTP server, and TFTP client
Switchover among Fat, Fit, and cloud modes	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud.

Intelligent O&M 6 satır

Experience	Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimization	Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions
Big data	Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history
Regional analysis	Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions
One-click report	One-click health report – generating a report on the overall operation of a network
Security radar	Unauthorized Wi-Fi signal location, presentation by category, and containment

Bulut Yönetimi 1 satır

Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation

Cloud Authentication 3 satır

Authentication mode	SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Customized portal	Customized Portal authentication page for mobile phones and PCs
SMS gateway	Interconnection with SMS gateways of GUODULINK and Alibaba Cloud

Platform Capabilities 3 satır

Big data capabilities	Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions
Hierarchy and decentralization	Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System management	Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions

Uyumluluk 1 satır

Uyumluluk	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, EN 62311, EN IEC 62311, EN 50665, IEC 62368-1, EN 62368-1, IEC 60950-22, EN 18031-1, and EN 18031-2

Temel Özellikler 9 satır

Wireless Protocols	802.11a/b/g/n/ac/ax
Radyo Tasarımı	Quad-radio: 2.4 GHz (4x4), 5 GHz (4x4 and 4x4), 2.4G/5GHz (2x2), up to 14 spatial streams
Veri Hızı	10.755 Gbps
Anten Tipi	Built-in omnidirectional antennas
Bluetooth	Bluetooth 5.1
Maks. Güç Tüketimi	50 W
External Power Supply	Evet
Çalışma Sıcaklığı	–40°C to +70°C (–40°F to +158°F)
Garanti	3 Years

Genel bakış

Ruijie RG-AP680-AR kullanım alanları ve özellikleri.

Outdoor scenarios covering higher education, wireless cities, energy, and business malls

Wi-Fi 6 AR Series High-Density Outdoor AP RG-AP680-AR

Product

Dimensions

Installation

The AP can be flexibly deployed in the scenarios covering higher education, wireless cities, energy, business malls.

With an integrated product design, the AP has built-in feeder lightning protector, Ethernet lightning protector, power lightning protector, power module, O/E converter, and other components. Outdoor installation is easy, improving construction efficiency. Wall mounting or pole mounting can be selected as required based on environmental conditions.

14 Spatial Streams

Maximum Data Rate 10.755 Gbps

IP68 Rating

PoE/DC Power

Bluetooth 5.1

10G Optical Port and 5G Ethernet Port for Flexible Networking

10G optical port: supports All-Optical i-Share+ Solution, meeting outdoor AP deployment requirements for over 1 km distance and high bandwidth. 5G Ethernet port: supports network cable connection, meeting existing networking demands and protecting investments.

Upgraded to Wi-Fi 6

High Concurrency OFDMA and MU-MIMO are introduced to ensure stable access of multiple STAs

Low Latency OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.

High Security The next-generation wireless encryption protocol WPA3 greatly improves the security of wireless connection.

High Speed With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.

Industrial-Grade Product Design, Ensuring Stable Running in Harsh Outdoor Environments

6 kV Lightning Protection

Wide Temperature Range

IP68 rating protection against dust and water, avoiding liquid and sand intrusion

Built-in high-standard lightning protectors, defending against 6 kV surge and ensuring stable running in bad weather such as thunderstorms

Operating in the range of –40°C to +70°C, adapting to clod weather in the northern regions

Independent AI Radio for Secure Scanning Safeguarding Wireless Network Security

The built-in independent AI Radio can perform full-radio secure scanning and troubleshooting in real time. Unlike traditional, periodic, single-radio scanning with blind spots, AI Radio guarantees wireless network security in public scenarios such as stadiums, business malls, and subways.

24/7 real-time scanning 5G/2.4G full-radio scanning

Periodic, single-radio scanning Occupying communication radio resources

Legend: Secure scanning Data transmission

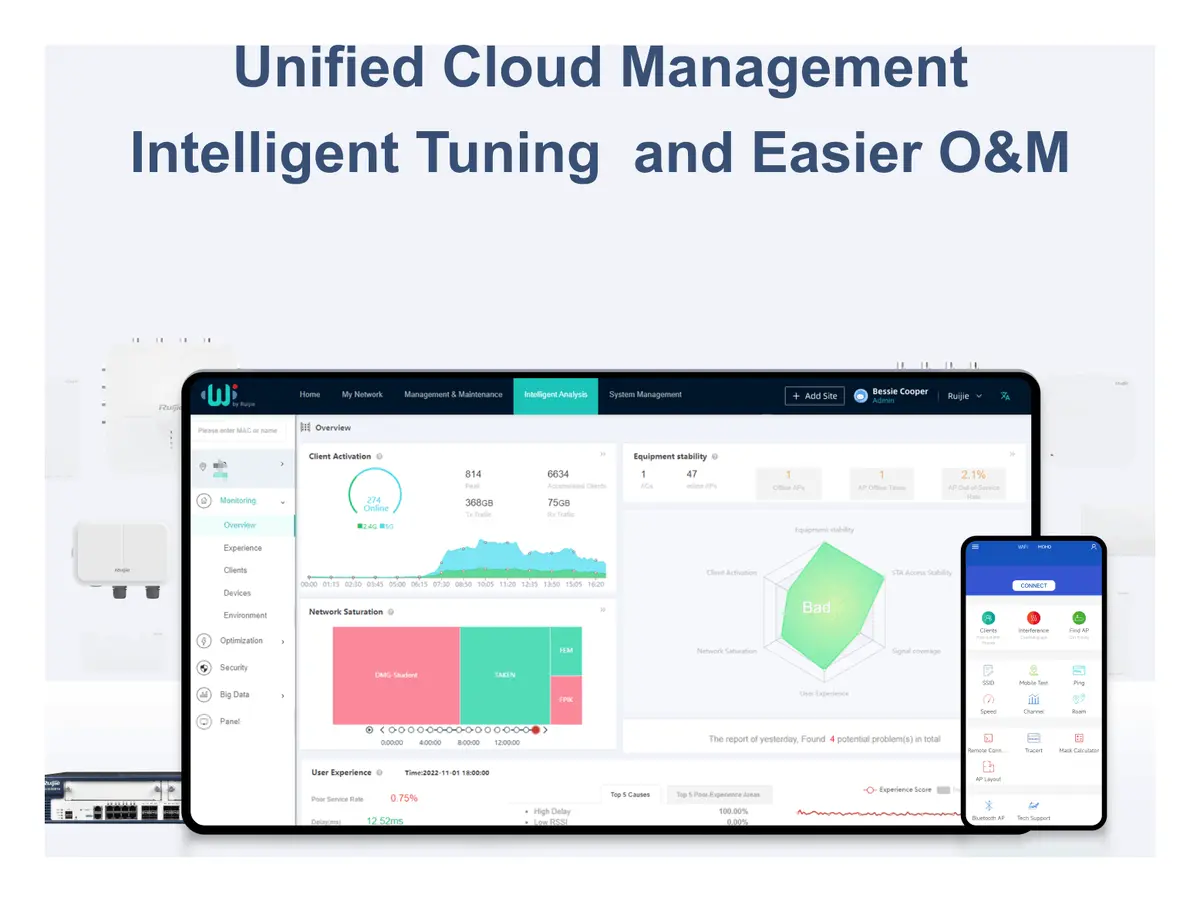

Unified Cloud Management Intelligent Tuning and Easier O&M

WIS Cloud Network enables network-wide configuration and tuning, removing the need of onsite commissioning. It also supports O&M on the mobile app Wi-Fi Moho. With early warning of network faults, wireless networks can be monitored anytime and anywhere.

Go to WIS ->

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP680-AR

Sık sorulanlar

RG-AP680-AR hakkında kısa yanıtlar.

RG-AP680-AR fiyatı ne kadar?

RG-AP680-AR için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
