Kablosuz Access Point Wi-Fi 6 outdoor APs

Ruijie RG-AP680-CD(V3) Wi-Fi 6 Çift Bant Dış Ortam Access Point

ModelRG-AP680-CD(V3)

Ruijie RG-AP680-CD(V3) access point: 2.5G SFP and Gigabit Ethernet Port for Flexible Networking, Built-in Directional Antennas, Focused Coverage and Strong Signal, Industrial-Grade Product Design, 2.976 Gbps High Speed with 160 MHz Band, Unified Cloud Management for Easy O&M.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

2.5G SFP and Gigabit Ethernet Port for Flexible Networking
Built-in Directional Antennas, Focused Coverage and Strong Signal
Industrial-Grade Product Design
2.976 Gbps High Speed with 160 MHz Band
Unified Cloud Management for Easy O&M

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

802.11n	Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 4x4 MU-MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 0.6 Gbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregat
802.11ac	Two spatial streams; Radio 2 – 5 GHz: 2x2 MU-MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DFS); Cyc
802.11ax	Four spatial streams; Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps:; Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OF
Anten	Wi-Fi; 2.4 GHz: two built-in directional antennas, with peak antenna gain of 9 dBi.; 5 GHz: two built-in directional antennas, with peak antenna gain of 9 dBi.; Bluetooth; One integrated vertically polarized omnidirectional antenna, t with peak antenna gain of 4.5 dBi.
Port	1 x 2.5GE SFP port; 1 x 10/100/1000Base-T port; 1 x RJ45 console port (serial console port); 1 x Bluetooth 5.0
Status LED	1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating; Three single-color signal strength LEDs:; Whether bridging is enabled; Whether bridging is successful; Wireless signal strength after successful bridging
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x D x Y)	Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.); Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.79 in.)
Ağırlık	Main unit: 1.5 kg (3.31 lbs); Mounting bracket: 0.2 kg (0.44 lbs); Shipping: 2.92 kg (6.44 lbs)
Montaj	Wall/Pole-mounting (a mounting bracket is delivered with the main unit)
Input power supply	The AP supports the following two power supply modes:; 48 V DC/0.35 A power input over DC connector: The DC connector accepts 2.0 mm/6.3 mm center-positive circular plug. A DC power supply needs to be purchased independently.; PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).; Note: If both DC power and PoE are available, DC power is preferred.
Maks. Güç Tüketimi	Maximum power consumption: 12.95 W; DC power: 12.95 W; 802.3at (PoE+): 12.95 W; 802.3af (PoE): 12.95 W; Idle mode: 6 W
Ortam Koşulları	Storage temperature: –40°C to +85°C (–40°F to +185°F); Storage humidity: 0% RH to 100% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –40°C to +65°C (-40°F to +149°F); Operating humidity: 0% RH to 100% RH (non-condensing); Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.); Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), t
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	512 MB DRAM, 128 MB flash
Yayın Gücü	2.4 GHz; Maximum transmit power: 28 dBm (631mW); Minimum transmit power: 10 dBm (10 mW); 5 GHz; Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Radio Frequency Performance 17 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS11
5 GHz, 802.11ax (HE160)	MCS0; MCS11

Basic Function 1 satır

Applicable software version	RGOS11.9(6)W2B4 or later

WLAN 12 satır

Maximum number of associated STAs	1024 (up to 512 STAs per radio)
Practical maximum client count indication (per device)	128
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs	16
STA management	SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent load balancing based on the STA quantity or traffic; Rate set settings; Intelligent STA identification
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless locating	MU and TAG device locating
Application management	Application identification

Security and Authentication 6 satır

Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying the source IP address of RADIUS packets, and built-in authentication server; PSK, UPSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	Wireless Intrusion Detection System(WIDS); Wireless Intrusion Protection System(WIPS); User isolation; Rogue AP detection and containment
Dynamic Policy	IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC); CoA/DM; ACL REMARK
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP)

Routing and Switching 9 satır

MAC	Static and filtered MAC addresses; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024
Ethernet	Jumbo frame length: 1518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q
VLAN	Interface-based VLAN assignment; Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094
ARP	ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; ARP check
IPv4 services	Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG
IPv6 services	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client
IP Yönlendirme	IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast-to-unicast conversion
VPN	PPPoE client; IPsec VPN

Network Management and Monitoring 4 satır

Ağ Yönetimi	NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging
Network management platform	Web management (Eweb)
User access management	Telnet, SSH, FTP client, and FTP management
Switchover among Fat, Fit, and cloud modes	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud.

Intelligent O&M 6 satır

Experience	Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimization	Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions
Big data	Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history
Regional analysis	Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions
One-click report	One-click health report – generating a report on the overall operation of a network
Security radar	Unauthorized Wi-Fi signal location, presentation by category, and containment

Bulut Yönetimi 1 satır

Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation

Cloud Authentication 3 satır

Authentication mode	SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Customized portal	Customized Portal authentication page for mobile phones and PCs
SMS gateway	Interconnection with SMS gateways of GUODULINK and Alibaba Cloud

Platform Capabilities 3 satır

Big data capabilities	Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions
Hierarchy and decentralization	Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System management	Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions

Note: For details, refer to the latest hybrid cloud management solution. 1 satır

Uyumluluk	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN 62311, EN IEC 62311, IEC 62368-1, EN 50665, EN 62368-1, IEC 60950-22, EN 18031-1, and EN 18031-2

Temel Özellikler 10 satır

Wireless Protocols	802.11a/b/g/n/ac/ax
Radyo Tasarımı	Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2),up to 4 spatial streams
Veri Hızı	Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps
Anten Tipi	Built-in directional antennas
Bluetooth	Bluetooth 5.0
Maks. Güç Tüketimi	12.95 W
External Power Supply	Hayır
Çalışma Sıcaklığı	–40°C to +65°C (–40°F to 149°F)
IP Koruma Sınıfı	IP68
Garanti	3 Years

Genel bakış

Ruijie RG-AP680-CD(V3) kullanım alanları ve özellikleri.

Outdoor scenarios covering school playgrounds, wireless cities, energy, and business malls

RG-AP680-CD(V3) Wi-Fi 6 Outdoor Access Point

Outdoor AP with Full Functions

Directional Antennas

160 MHz

Max. Data Rate 2.976 Gbps

IP68

Max number of associated STAs 1024

2.5G SFP Port and Gigabit Ethernet Port for Flexible Networking

2.5G SFP port

Supports all-optical networks and high bandwidth for outdoor transmission over 1+ km.

Gigabit Ethernet port

Supports flexible wired connection.

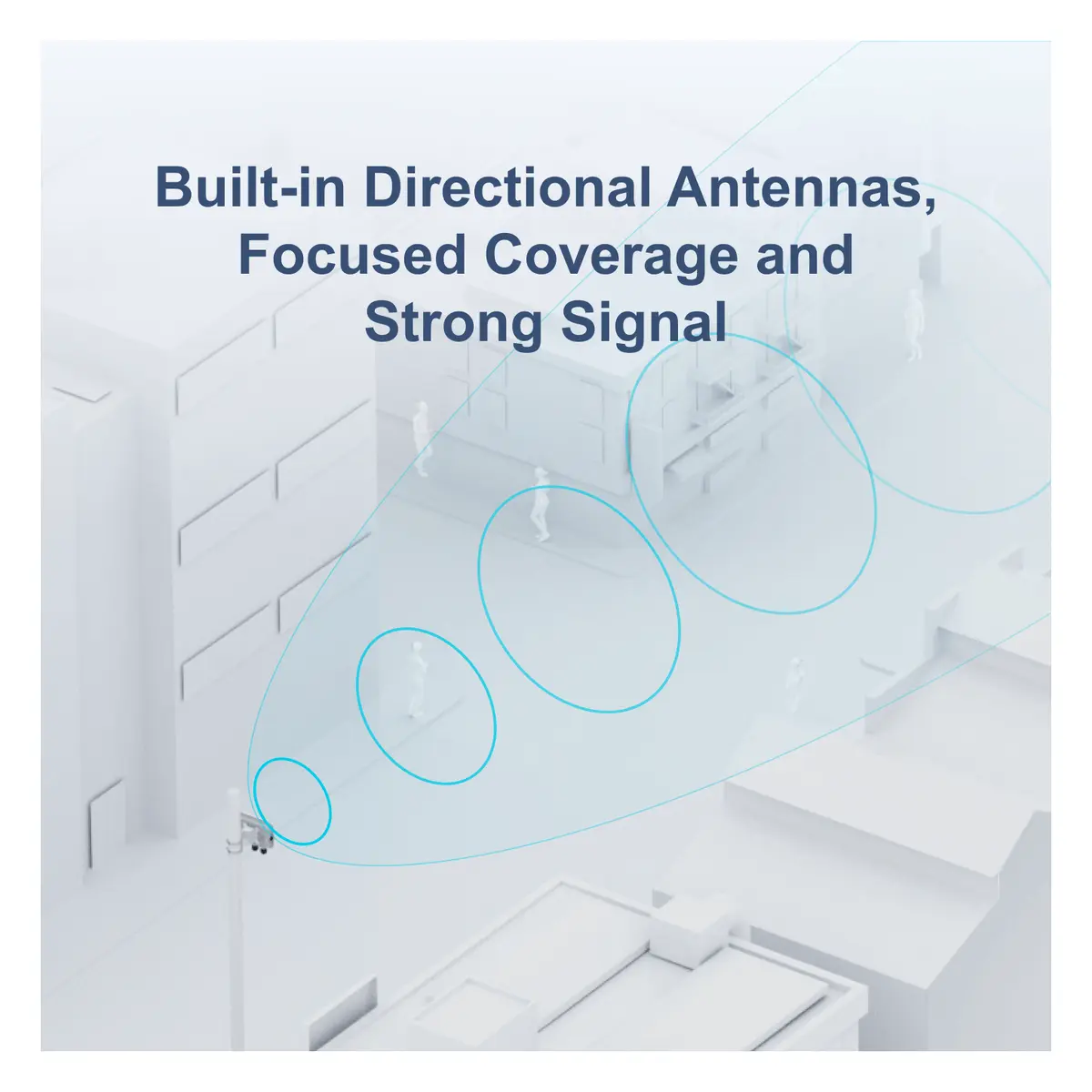

Built-in Directional Antennas, Focused Coverage and Strong Signal

28 dBm transmit power enables strong signal beam. The design applies to outdoor scenarios such as streets and security monitoring backhaul.

Industrial-Grade Product Design

Wide Temperature Range

IP68 dustproof and waterproof

–40°C to +65°C, adapting to different regions

6 kV lightning protection, ensuring stable running

2.976 Gbps High Speed with 160 MHz Band

Next-generation AX3000 chip supports 160 MHz channel bandwidth in the 5 GHz band. Increase the rate to 2.976 Gbps with doubled channel bandwidth.

160MHz | 2.976 Gbps

Unified Cloud Management for Easy O&M

WIS Cloud Network enables network-wide configuration and optimization. It also supports O&M on the mobile app Wi-Fi Moho.

Go to WIS Cloud Network

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP680-CD(V3)
