RUIJIE · RG-CAP72-I Ruijie RG-CAP72-I Wi-Fi 7 BE3600 Çift Bant Tavan Tipi Access Point

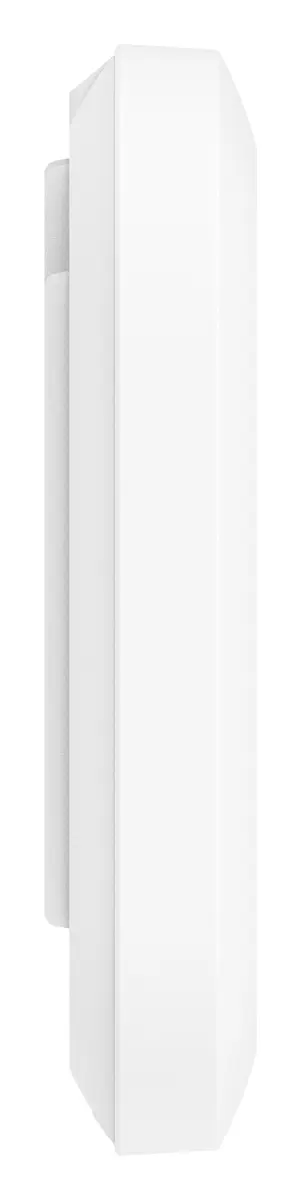

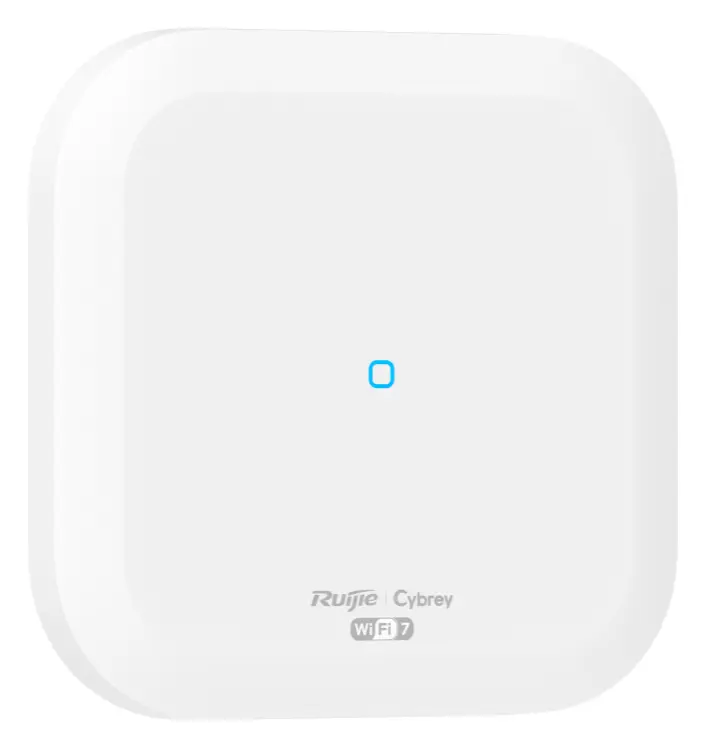

Ruijie RG-CAP72-I Wi-Fi 7 BE3600 Çift Bant Tavan Tipi Access Point

ModelRG-CAP72-I

Ruijie RG-CAP72-I access point: BE3600 Wi-Fi 7 speed for hotel lobbies, conference areas, open offices, and warehouse sorting zones., 4096-QAM for 20% higher peak data rates than Wi-Fi 6., MRU for better channel utilization and lower latency in crowded environments., Dual 2.5G ports (RJ45 +.

Port sayısı: 45 port
Kablosuz standart: Wi-Fi 7

BE3600 Wi-Fi 7 speed for hotel lobbies, conference areas, open offices, and warehouse sorting zones.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
Dual 2.5G ports (RJ45 + SFP) with fiber support for long-distance deployment.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, a Kensington lock slot, and a securing latch.
Load balancing across APs and between 2.4 GHz and 5 GHz radios for high-density areas.

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-CAP72-I özellikleri ve kullanım alanları.

Offices, hotels, warehouses, hospitals, and schools.

RG-CAP72-I Ruijie Cybrey Wi-Fi 7 BE3600 Ceiling Mount Access Point

BE3600 Wi-Fi 7 Speed

Provides low-latency performance for hotel lobbies, conference areas, open-plan offices, and warehouse sorting areas.

4096-QAM for Higher Peak Rates

Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6.

MRU for Multi-User Performance

Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.

2.5GE RJ45 + 2.5G SFP

Features two 2.5G ports — RJ45 for copper and SFP for fiber. The SFP port supports long-distance fiber connnection over hundreds of meters.

Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock and securing latch.

Responsive Roaming Experience

The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.

Balances clients across APs and steers them between 2.4 GHz and 5 GHz radios, enabling consistent performance in high-density areas.

Cloud-Edge Collaborative Wireless Network

Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

In the Box

ST4.2 x 25 mm Phillips tapping screws

φ6.3 x 25 mm plastic expansion anchors

Key to security lock slot

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Mount It Steady. Keep It Clean. — Suspended Ceiling Mounting Accessories

Ceiling Tile Mounting

Ceiling Backing Plate

Standard mounting has its limits — APs can loosen and become unstable over time.

With a Ceiling Backing Plate, you can deploy heavy APs with rock-solid stability — built to last.

Ceiling Backing Plate sold separately — not included with the product.

T-bar Clip

Wall mounting spoils a clean ceiling. Grid mounting looks better.

With a T-bar Clip, the AP mounts directly onto the ceiling grid for a secure, stable installation — while keeping the ceiling clean and tidy.

T-bar Clip sold separately — not included with the product.

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.

High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Wi-Fi Radyo
Wi-Fi Standartları	IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax
Wi-Fi standards (2.4 GHz)	IEEE 802.11b (Wi-Fi 1); IEEE 802.11g (Wi-Fi 3); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ax (Wi-Fi 6); IEEE 802.11be (Wi-Fi 7)
Wi-Fi standards (5 GHz)	IEEE 802.11a (Wi-Fi 2); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ac (Wi-Fi 5); IEEE 802.11ax (Wi-Fi 6); IEEE 802.11be (Wi-Fi 7)
Radyo Tasarımı	Dual-radio; 4 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 2x2, MU-MIMO
Data rates	Combined peak data rate: 3570 Mbps; Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 2882 Mbps
Maks. Yayın Gücü	Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):; Note: The transmit power is limited by local regulatory requirements.; European Union & United Kingdom:; 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm; Myanmar:; 2400–2483.5 MHz, EIRP ≤ 23 dBm; 5725–5825 MHz, EIRP ≤ 30 dBm; Thailand:; Indonesia:; 2400–2483.5 MHz, EIRP ≤ 27 dBm; 5725–5825 MHz, EIRP ≤ 23 dBm; Egypt:; Vietnam:; 5725–5850 MHz, EIRP ≤ 30 dBm
Maximum transmit power (2.4 GHz)	Combined power: 27 dBm (single-stream power: 24 dBm); Note: The transmit power is limited by local regulatory requirements.
Maximum transmit power (5 GHz)	Combined power: 27 dBm (single-stream power: 24 dBm); Note: The transmit power is limited by local regulatory requirements.
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; 802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
Operating frequency bands	Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40; Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160; Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.
Alıcı Hassasiyeti	802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –74 dBm (54 Mbps); 802.11b: –96 dBm (1 Mbps), –93 dBm (5.5 Mbps), –89 dBm (11 Mbps); 802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps); 802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7); 802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7); 802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8); 802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9); 802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9); 802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9);

Anten
Anten Tipi	2.4 GHz and 5 GHz: 2 x built-in dual -band omnidirectional antennas
Anten Kazancı	2.4 GHz: 4.06 dBi; 5 GHz: 4.48 dBi; Bluetooth: 4.17 dBi

Port Özellikleri
Sabit Servis Portları	1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at-compliant PoE input; 1 x 2.5GE SFP port, compatible with 1GE optical transceiver; Note: When both SFP and RJ45 ports are connected, the SFP port is used for communication, while the RJ45 port only supplies power to the device.
Sabit Yönetim Portu	1 x RJ45 console port
LED	1 x system LED
Reset Butonu	1

Bluetooth Radio
Bluetooth	Bluetooth 5.3; Remote maintenance through a Bluetooth serial port
Maximum Bluetooth transmit power	10 dBm

Güç Kaynağı ve Tüketim
DC power supply	DC power adapter: 54 V, 0.6 A; DC connector dimensions:; Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.); Note: If both DC power and PoE are available, DC power is preferred.
DC power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A
PoE Güç Beslemesi	IEEE 802.3af (PoE); IEEE 802.3at (PoE+); Note: If both DC power and PoE are available, DC power is preferred.
Maks. Güç Tüketimi	18 W
IEEE 802.3af power input	Port restrictions: The 2.5GE SFP port is unavailable.; Radio restrictions: The transmit power of both 2.4 GHz and 5 GHz radios is limited to 40%.; Other feature restrictions: N/A
IEEE 802.3at power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A

Ortam ve Güvenilirlik
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Çalışma Nemi	5% RH to 95% RH (non-condensing)
Depolama Nemi	0% RH to 95% RH (non-condensing)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
IP Koruma Sınıfı	IP41
Lock option	Kensington lock slot and securing latch
MTBF	400,000 hours
Montaj Seçenekleri	Ceiling-mount, wall-mount, and junction box-mount

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	200 mm x 200 mm x 38.2 mm (7.87 in. x 7.87 in. x 1.50 in., without the mounting bracket)
Packaging dimensions (W x D x H)	228 mm x 222 mm x 72 mm (8.98 in. x 8.74 in. x 2.83 in.)
Cihaz Ağırlığı	Main unit: 0.64 kg (1.41 lbs); Mounting bracket: 0.12 kg (0.26 lbs)
Packaging weight	0.9 kg (1.98 lbs)
Renk	Beyaz

Sistem Özellikleri
Flash Bellek	256 MB SPI NAND Flash
RAM	1 GB DDR4

Certification and Regulatory Compliance
Sertifikalar	CE, CB, Wi-Fi Alliance
EMC compliance	EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radyo	EN 300 328; EN 301 893; EN 300 440
RF exposure	EN IEC 62311
Safety compliance	IEC 62368-1

Bandwidth Features
Bandwidth control	AP-based bandwidth control; Client-based bandwidth control; Intelligent dynamic bandwidth control based on channel utilization; Intelligent dynamic bandwidth control based on critical services; SSID-based bandwidth control

Client Management
Client limit	Radio-based client limit; SSID-based client limit
Dynamic blocklist/allowlist	Dynamic blocklist
Smart steering	AP load balancing; Configuring load balancing based on client count; Configuring load balancing based on client traffic
Static blocklist/allowlist	Static allowlist; Static blocklist
Maximum number of associated clients per AP	1024; Note: The number of associated clients varies according to the environment.
Recommended number of associated clients per AP	64

Radio Management
SSID management basics	SSID hiding
Maximum number of BSSIDs per AP	32

Roaming Features
Layer 2 roaming	Layer 2 roaming
Layer 3 roaming	Layer 3 roaming

Security Features
Client security	Hotspot2.0 authentication; WPA-802.1X authentication; WPA-PSK authentication; WPA-WPA2 authentication; WPA2-802.1X authentication; WPA2-PSK authentication; WPA2-WPA3 authentication; WPA3-Enterprise; WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256); WPA3-Enterprise with AES-CCMP-128; WPA3-OWE authentication; WPA3-Personal; WEP authentication
802.1X	Dynamic ACL assignment
Client identification	AI-based identification of client types, operating systems, operating system versions, vendors, and models; Client identification
CPP	CPP
MAB	MAB
NFPP	NFPP
RADIUS	RADIUS
Web authentication	Web authentication

Katman 3 Özellikleri
IPv6	ICMPv6; IPv6 basic features; Neighbor discovery; Ping over IPv6
NAT	NAT; PPTP, SIP, FTP, DNS, and TFTP

Management Features
SNMP	SNMPv1/v2c/v3; SNMP
Alerts	Alerts
Cloud-based management	Cloud-based management
SON	SON
SSH	SSH
Syslog	Syslog
Telnet	Telnet
Web-based management	Web-based management

IP Servisleri
DHCP	DHCPv4 client; DHCPv6 client
NTP	NTP client; NTP server
Number of DHCP address pools	2000

Networking Features
RIPT	RIPT

Routing Features
IPv4 routing basics	Static routing
IPv6 routing basics	Static IPv6 routing

Device Management
AP mode management	Mode switching
Device IP management	Obtaining an IP address through DHCP
Device IP Management	Static IPv4 address

Multicast Features
IGMP snooping	Multicast-to-unicast conversion

Device
Main unit	1

Aksesuarlar
Alignment sticker	1
Key to security lock	1
Mounting bracket	1 x mounting bracket (W x D x H: 130 mm x 143.5 mm x 6.5 mm / 5.12 in. x 5.65 in. x 0.26 in.)
Screw	4 x ST4.2 x 25 mm Phillips tapping screws; 4 x φ6.3 x 25 mm plastic expansion anchors

Manual
User Manual	1
Warranty Card	1

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Installation GuidePDF

Sık sorulanlar

RG-CAP72-I hakkında kısa yanıtlar.

RG-CAP72-I fiyatı ne kadar?

RG-CAP72-I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
