Kablosuz Access Point Cybrey Ceiling Mount APs

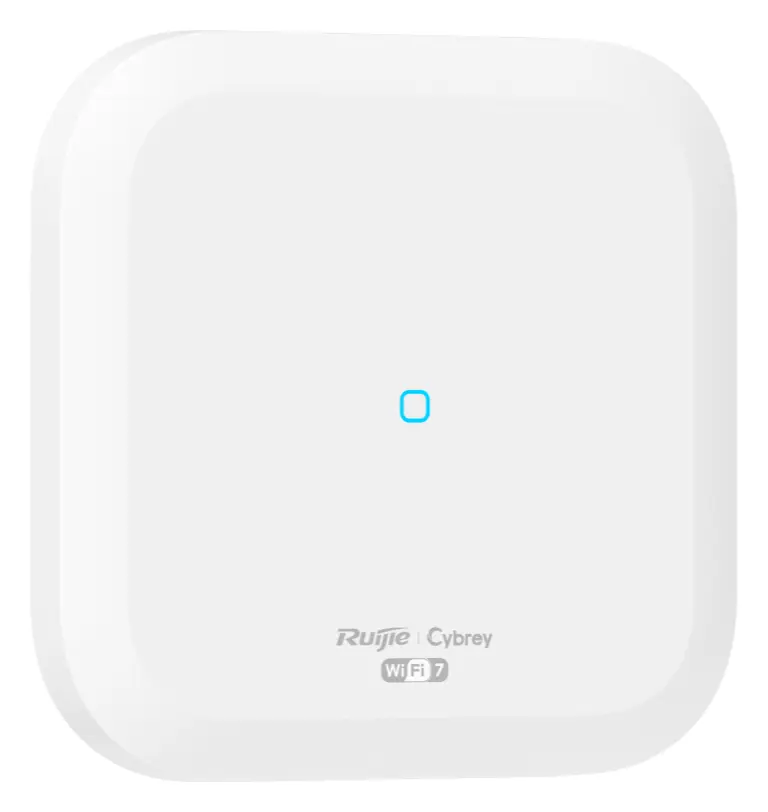

Ruijie RG-CAP72PRO-IE Wi-Fi 7 BE6500 Üç Bant Tavan Tipi Access Point

ModelRG-CAP72PRO-IE

Ruijie RG-CAP72PRO-IE access point: BE6500 Wi-Fi 7 speed for conference halls and large offices., 4096-QAM for 20% higher peak data rates than Wi-Fi 6., MRU for better channel utilization and lower latency in crowded environments., 10G Combo + 2.5G port for high-capacity backhaul and wired conne.

Port sayısı: 45 port
Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

BE6500 Wi-Fi 7 speed for conference halls and large offices.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
10G Combo + 2.5G port for high-capacity backhaul and wired connectivity.
Built-in 75°/35° multi-beam antennas with external 20° narrow-beam antennas.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, a Kensington lock slot, and a securing latch.
Full-time dedicated AI Radio with full-channel scanning for fast client steering.
Load balancing across APs and between 2.4 GHz and 5 GHz radios.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Wi-Fi Radyo 13 satır

Wi-Fi Standartları	IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax
Wi-Fi standards (2.4 GHz)	IEEE 802.11b (Wi-Fi 1); IEEE 802.11g (Wi-Fi 3); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ax (Wi-Fi 6); IEEE 802.11be (Wi-Fi 7)
Wi-Fi standards (5 GHz)	IEEE 802.11a (Wi-Fi 2); IEEE 802.11n (Wi-Fi 4 ); IEEE 802.11ac (Wi-Fi 5); IEEE 802.11ax (Wi-Fi 6); IEEE 802.11be (Wi-Fi 7)
Radyo Tasarımı	Tri-radio; 8 spatial streams; Radio 1: 2.4 GHz, 2x2, MU-MIMO; Radio 2: 5 GHz, 4x4, MU-MIMO; Radio 3 (AI radio): 2.4 GHz & 5 GHz, 2x2, MIMO
Data rates	Combined peak data rate: 6453 Mbps; Radio 1: 2.4 GHz, 688 Mbps; Radio 2: 5 GHz, 5765 Mbps
External antenna connectors	4 RP-SMA female antenna connectors; ANT1(5G), ANT2(5G), ANT3(5G), and ANT4(5G) correspond to Radio 2.
Flexible radio	2.4 GHz, 2x2 + 5 GHz, 4x4
Maks. Yayın Gücü	Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):; Note: The transmit power is limited by local regulatory requirements.; European Union & United Kingdom:; 2400–2483.5 MHz, EIRP ≤ 20 dBm; 5150–5350 MHz, EIRP ≤ 23 dBm; 5470–5725 MHz, EIRP ≤ 30 dBm; Myanmar:; 2400–2483.5 MHz, EIRP ≤ 23 dBm; 5725–5825 MHz, EIRP ≤ 30 dBm; Thailand:; Indonesia:; 2400–2483.5 MHz, EIRP ≤ 27 dBm; 5725–5825 MHz, EIRP ≤ 23 dBm; Egypt:; Vietnam:; 5725–5850 MHz, EIRP ≤ 30 dBm
Maximum transmit power (2.4 GHz)	Combined power: 26 dBm (single-stream power: 23 dBm); Note: The transmit power is limited by local regulatory requirements.
Maximum transmit power (5 GHz)	Combined power: 29 dBm (single-stream power: 23 dBm); Note: The transmit power is limited by local regulatory requirements.
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; 802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
Operating frequency bands	Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40; Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160; Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.
Alıcı Hassasiyeti	802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –72 dBm (54 Mbps); 802.11b: –94 dBm (1 Mbps), –90 dBm (5.5 Mbps), –86 dBm (11 Mbps); 802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps); 802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7); 802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7); 802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8); 802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9); 802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9); 802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9);

Anten 3 satır

Anten Tipi	2.4 GHz: 2 x built-in directional antennas with a 75° beamwidth; 5 GHz: 4 x built-in directional antennas with a 75° beamwidth; 5 GHz: 4 x built-in directional antennas with a 35° beamwidth; Bluetooth: 1 x built-in omnidirectional antenna; Note:; 1. Radio 2 supports switching between two sets of built-in antennas and switching to external antennas. When external antennas are used, the access point uses four external RP-SMA female antenna connectors. The external antenna connectors are labeled AN
Anten Kazancı	2.4 GHz: 6.60 dBi; 5 GHz: 9.40 dBi (default mode for built-in antennas); 5 GHz: 10.20 dBi (enhanced mode for built-in antennas); Bluetooth: 3.70 dBi
Elevation beamwidth	5 GHz: 75° (default mode for built-in antennas); 5 GHz: 35° (enhanced mode for built-in antennas)

Port Özellikleri 4 satır

Sabit Servis Portları	1 x 10/100/1000/2.5G/5G/10GBASE-T port, supporting 802.3af/at/bt-compliant PoE input. It is paired with one 10GE SFP+ port as a combo port.; 1 x 10GE SFP+ port, compatible with 2.5GE and 1GE optical transceivers. It is paired with one 10GE RJ45 port as a combo port.; 1 x 10/100/1000/2500BASE-T port
Sabit Yönetim Portu	1 x RJ45 console port
LED	1 x system LED
Reset Butonu	1

Bluetooth Radio 2 satır

Bluetooth	Bluetooth 5.3; Remote maintenance through a Bluetooth serial port
Maximum Bluetooth transmit power	10 dBm

Güç Kaynağı ve Tüketim 7 satır

DC power supply	DC power adapter: 54 V, 0.7 A; DC connector dimensions:; Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Depth: 10 mm (0.39 in.); Note: If both DC power and PoE are available, DC power is preferred.
DC power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A
PoE Güç Beslemesi	IEEE 802.3af (PoE); IEEE 802.3at (PoE+); IEEE 802.3bt (PoE++); Note: If both DC power and PoE are available, DC power is preferred.
Maks. Güç Tüketimi	26.2 W
IEEE 802.3af power input	Port restrictions: The downlink LAN port is unavailable.; Radio restrictions: The 2.4 GHz and 5 GHz radios are limited to 1T1R, with the transmit power of both radios limited to 50%. In addition, independent RF scanning by AI Radio is not supported.; Other feature restrictions: N/A
IEEE 802.3at power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A
IEEE 802.3bt power input	Port restrictions: N/A; Radio restrictions: N/A; Other feature restrictions: N/A

Ortam ve Güvenilirlik 8 satır

Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Çalışma Nemi	5% RH to 95% RH (non-condensing)
Depolama Nemi	0% RH to 95% RH (non-condensing)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
IP Koruma Sınıfı	IP41
Lock option	Kensington lock slot and securing latch
MTBF	400,000 hours
Montaj Seçenekleri	Ceiling-mount, wall-mount, and junction box-mount

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	220 mm x 220 mm x 46.3 mm (8.66 in. x 8.66 in. x 1.82 in., without the mounting bracket)
Packaging dimensions (W x D x H)	247.5 mm x 242 mm x 78 mm (9.74 in. x 9.53 in. x 3.07 in.)
Cihaz Ağırlığı	Main unit: 1.10 kg (2.43 lbs); Mounting bracket: 0.12 kg (0.26 lbs)
Packaging weight	1.59 kg (3.51 lbs)
Renk	Beyaz

Sistem Özellikleri 2 satır

Flash Bellek	256 MB SPI NAND Flash
RAM	1 GB DDR4

Certification and Regulatory Compliance 5 satır

Sertifikalar	CE, CB, Wi-Fi Alliance
EMC compliance	EN 55032; EN 61000-3-3; EN IEC 61000-3-2; EN 55035; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radyo	EN 300 328; EN 301 893; EN 300 440
RF exposure	EN IEC 62311
Safety compliance	IEC 62368-1

Bandwidth Features 1 satır

Bandwidth control	AP-based bandwidth control; Client-based bandwidth control; Intelligent dynamic bandwidth control based on channel utilization; Intelligent dynamic bandwidth control based on critical services; SSID-based bandwidth control

Client Management 6 satır

Client limit	Radio-based client limit; SSID-based client limit
Dynamic blocklist/allowlist	Dynamic blocklist
Smart steering	AP load balancing; Configuring load balancing based on client count; Configuring load balancing based on client traffic
Static blocklist/allowlist	Static allowlist; Static blocklist
Maximum number of associated clients per AP	768; Note: The number of associated clients varies according to the environment.
Recommended number of associated clients per AP	64

Radio Management 2 satır

SSID management basics	SSID hiding
Maximum number of BSSIDs per AP	32

Roaming Features 2 satır

Layer 2 roaming	Layer 2 roaming
Layer 3 roaming	Layer 3 roaming

Security Features 8 satır

Client security	Hotspot2.0 authentication; WPA-802.1X authentication; WPA-PSK authentication; WPA-WPA2 authentication; WPA2-802.1X authentication; WPA2-PSK authentication; WPA2-WPA3 authentication; WPA3-Enterprise; WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256); WPA3-Enterprise with AES-CCMP-128; WPA3-OWE authentication; WPA3-Personal; WEP authentication
802.1X	Dynamic ACL assignment
Client identification	AI-based identification of client types, operating systems, operating system versions, vendors, and models; Client identification
CPP	CPP
MAB	MAB
NFPP	NFPP
RADIUS	RADIUS
Web authentication	Web authentication

Katman 3 Özellikleri 2 satır

IPv6	ICMPv6; IPv6 basic features; Neighbor discovery; Ping over IPv6
NAT	NAT; PPTP, SIP, FTP, DNS, and TFTP

Management Features 8 satır

SNMP	SNMPv1/v2c/v3; SNMP
Alerts	Alerts
Cloud-based management	Cloud-based management
SON	SON
SSH	SSH
Syslog	Syslog
Telnet	Telnet
Web-based management	Web-based management

IP Servisleri 3 satır

DHCP	DHCPv4 client; DHCPv6 client
NTP	NTP client; NTP server
Number of DHCP address pools	2000

Networking Features 1 satır

RIPT	RIPT

Routing Features 2 satır

IPv4 routing basics	Static routing
IPv6 routing basics	Static IPv6 routing

Device Management 3 satır

AP mode management	Mode switching
Device IP management	Obtaining an IP address through DHCP
Device IP Management	Static IPv4 address

Multicast Features 1 satır

IGMP snooping	Multicast-to-unicast conversion

Device 1 satır

Main unit	1

Aksesuarlar 4 satır

Alignment sticker	1
Key to security lock	1
Mounting bracket	1 x mounting bracket (W x D x H: 130 mm x 143.5 mm x 6.5 mm / 5.12 in. x 5.65 in. x 0.26 in.)
Screw	4 x ST4.2 x 25 mm Phillips tapping screws; 4 x φ6.3 x 25 mm plastic expansion anchors

Manual 2 satır

User Manual	1
Warranty Card	1

Genel bakış

Ruijie RG-CAP72PRO-IE kullanım alanları ve özellikleri.

Offices, hotels, warehouses, hospitals, and schools.

RG-CAP72Pro-IE Ruijie Cybrey Wi-Fi 7 BE6500 Ceiling Mount Access Point

The specific design of the product’s ports may vary slightly depending on the requirements of different countries.

BE6500 Wi-Fi 7 Speed

Provides high‑throughput connectivity for bandwidth‑heavy clients in hotel conference halls and large‑scale office environments.

4096-QAM for Higher Peak Rates

Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6.

MRU for Multi-User Performance

Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.

10G Combo + 2.5G Port

Features one 10G RJ45/SFP+ combo port and a dedicated 2.5G port, delivering high-capacity backhaul and wired connectivity.

Multi‑Beam Directional Antennas

Features built-in 75° and 35° beam antennas with sidelobe suppression, plus support for external 20° narrow-beam antennas. Reduces coverage overlap and interference in high-density ceiling-mounted deployments.

Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock and securing latch.

Full-time AI Radio for Responsive Roaming

Full-time dedicated AI Radio continuously scans all channels and enables responsive steering. The AP works with the RG-CNC series to steer clients to suitable APs for improved roaming performance.

Balances clients across APs and steers them between 2.4 GHz and 5 GHz radios, enabling consistent performance in high-density areas.

Cloud-Edge Collaborative Wireless Network

Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

Full-Time AI Radio for Responsive Roaming

AI Radio mode continuously monitors client status and intelligently steers clients to the suitable AP, enabling fast, low-latency roaming with smooth connectivity.

Supports 75°, 35°, and 20° beamwidth options for flexible deployment:

75° mode – medium‑height ceilings (under 5 m): meeting rooms, open working areas

35° mode – high ceilings (5–12 m): large conference halls, auditorium

20° mode – ultra‑high ceilings (over 12 m): indoor stadiums, exhibition centers, airport terminals

The 20° antenna mode must be implemented together with the RG-ANT30-D2 antenna

In the Box

ST4.2 x 25 mm Phillips tapping screws

φ6.3 x 25 mm plastic expansion anchors

Key to security lock slot

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Mount It Steady. Keep It Clean. — Suspended Ceiling Mounting Accessories

Ceiling Tile Mounting

Ceiling Backing Plate

Standard mounting has its limits — APs can loosen and become unstable over time.

With a Ceiling Backing Plate, you can deploy heavy APs with rock-solid stability — built to last.

Ceiling Backing Plate sold separately — not included with the product.

T-bar Clip

Wall mounting spoils a clean ceiling. Grid mounting looks better.

With a T-bar Clip, the AP mounts directly onto the ceiling grid for a secure, stable installation — while keeping the ceiling clean and tidy.

T-bar Clip sold separately — not included with the product.

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.

High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CAP72PRO-IE Installation GuidePDF · RG-CAP72PRO-IE

Sık sorulanlar

RG-CAP72PRO-IE hakkında kısa yanıtlar.

RG-CAP72PRO-IE fiyatı ne kadar?

RG-CAP72PRO-IE için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
