Yönetilebilir Switch RG-CS88

Ruijie RG-CS88-08 6 Slot Modüler Omurga Switch

Q: RG-CS88-08 fiyatı ne kadar?

RG-CS88-08 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRG-CS88-08

Ruijie RG-CS88-08 gigabit bir yönetilebilir switch'tir. 48 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

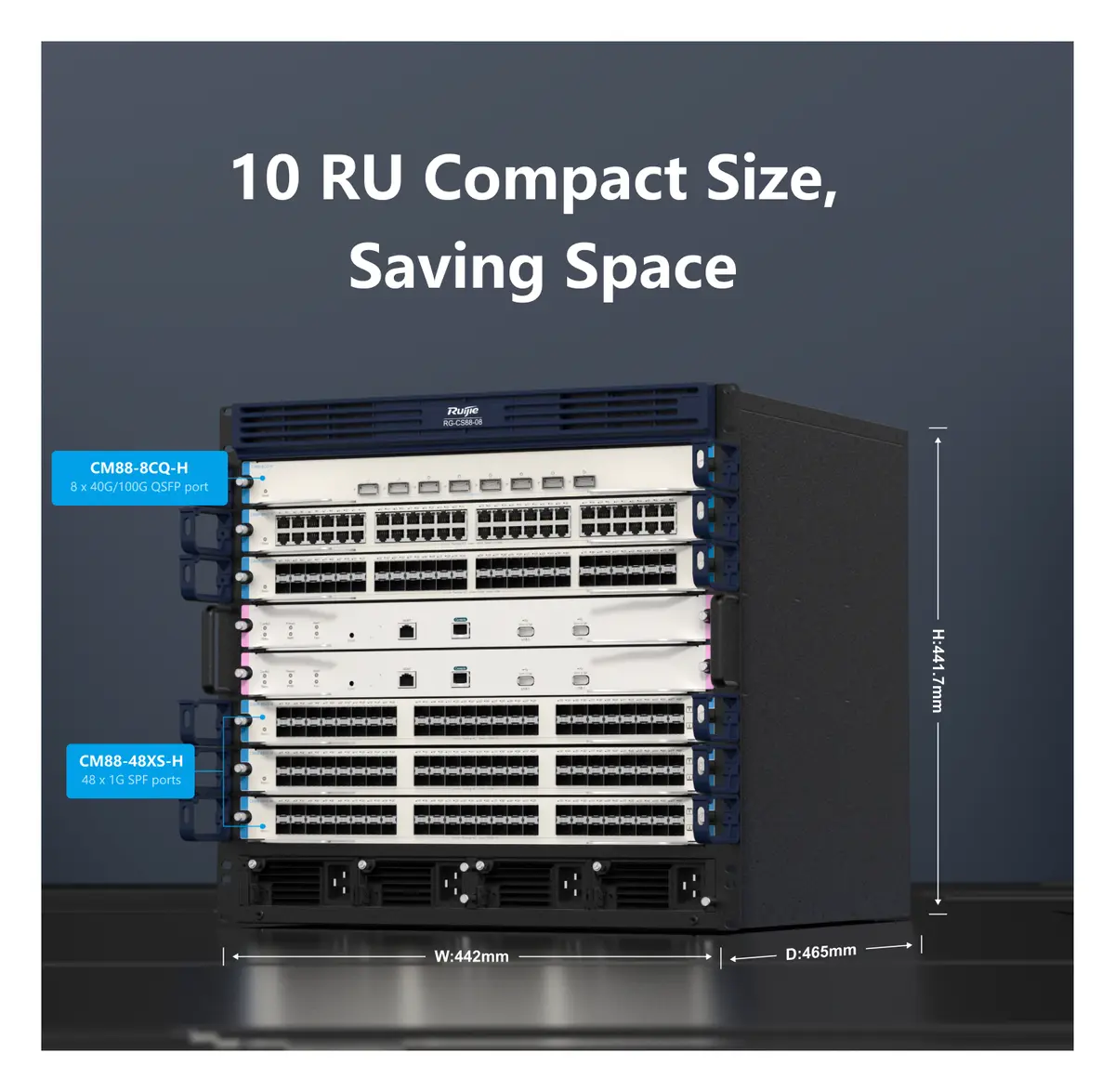

10 RU compact size, saving space
Up to 288 10GE ports on high-density 10GE cards
40GE and 100GE ports, achieving high speed
Security defense policies, ensuring network robustness
Hardware-level multi-protection, delivering carrier-grade reliability
Cloud, Make Your Business Easy

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 24 satır

Modül Yuvası	2 x supervisor module slots; 6 x line card slots; 4 x power module slots; 2 x fan module slots
Supervisor module	CM88-CM
Switch fabric module	CM88-CM (switch fabric module integrated with supervisor module)
Line card	CM88-48GT-H; CM88-48SFP-H; CM88-48XS-H; CM88-8СQ-H
Güç Modülü	RG-PA600I-F; RG-PA1600I-F
Fan Modülü	M08-FAN (pre-installed 2)
Module service port	CM88-48GT-H: 48 x 10/100/1000BASE-T ports; CM88-48SFP-H: 48 x 1GE SFP ports; CM88-48XS-H: 48 x 1GE/10GE SFP+ ports; CM88-8СQ-H: 8 x 40GE/100GE QSFP28 ports
Module management port	CM88-CM:; 1 x RJ45 console port; 1 x RJ45 MGMT port
USB	CM88-CM: 2 x USB 2.0 ports; (No capacity limit. The 2G/4G/8G/16G/32G capacity is tested.)
Anahtarlama Kapasitesi	9.6 Tbps
Paket İletim Hızı	7200 Mpps
İşlemci (CPU)	CM88-CM: quad-core processor, each core with the clock speed of 1.5 GHz; Line card: quad-core processor, each core with the clock speed of 1.5 GHz
BootROM	CM88-CM: 16 MB (2 flash chips for 1+1 boot redundancy); Line card: 16MB (2 flash chips for 1+1 boot redundancy)
Flash Bellek	CM88-CM: 8 GB; Line card: 8 GB
Bellek	CM88-CM: 4 GB DDR4; Line card: 2 GB DDR4
Switch Tampon Belleği	CM88-8CQ-H, CM88-48XS-H: 32 MB; CM88-48SFP-H, CM88-48GT-H: 8 MB
MAC Adres Tablosu	Number of global MAC addresses; CM88-48GT-H, CM88-48SFP-H: 80,000; CM88-8CQ-H, CM88-48XS-H: 96,000; Number of static MAC addresses; CM88-48GT-H, CM88-48SFP-H: 4,000; CM88-8CQ-H, CM88-48XS-H: 40,000
ARP Tablosu Boyutu	CM88-48GT-H, CM88-48SFP-H:; underlay: 30,000; overlay: 0; CM88-8CQ-H, CM88-48XS-H:; underlay: 50,000; overlay: 0 (default and recommended)
Number of IPv4 unicast routes	CM88-48GT-H, CM88-48SFP-H: 12,000 (default and recommended, shared with IPv6 routes); CM88-8CQ-H, CM88-48XS-H: 134,000 (default and recommended, shared with IPv6 routes)
Number of IPv4 multicast routes	CM88-48GT-H, CM88-48SFP-H: 8,000; CM88-8CQ-H, CM88-48XS-H: 16,000
Number of IPv6 unicast routes	CM88-48GT-H, CM88-48SFP-H: 6,000 (shared with IPv4 routes); CM88-8CQ-H, CM88-48XS-H: 50,000 (shared with IPv4 routes)
Number of IPv6 multicast routes	CM88-48GT-H, CM88-48SFP-H: 4,000; CM88-8CQ-H, CM88-48XS-H: 8,000
Number of ACEs	Ingress; CM88-48GT-H, CM88-48SFP-H: 5,000; CM88-8CQ-H, CM88-48XS-H: 4,500; Egress; CM88-48GT-H, CM88-48SFP-H: 1,000; CM88-8CQ-H, CM88-48XS-H: 2,000
Number of VSU members	2

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442 mm x 465mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.)
Kutu Boyutları (G x D x Y)	710 mm x 590 mm x 617 mm (27.95 in. x 23.23 in. x 24.29 in.)
Kabin Yüksekliği	10 RU
Cihaz Ağırlığı	35.6 kg (78.48 lbs) (empty chassis with 2 fan modules)
Kutulu Ağırlık	50.20 kg (110.67 lbs) (empty chassis with 2 fan modules)

Güç Kaynağı ve Tüketim 5 satır

Güç Kaynağı	4 x pluggable power modules
Güç Modülü Yedekliliği	n+n power redundancy; (The type of the power supply should be identical.)
Güç Girişi	RG-PA600I-F (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 10 A; RG-PA1600I-F (AC input):; Maximum input current: 16A
Maks. Çıkış Gücü	RG-PA600I-F: 600 W; RG-PA1600I-F:; 100 V AC to 176 V AC: 1200 W; 176 V AC to 240 V AC: 1600 W
Module power consumption	Chassis RG-CS88-08 with 2 fan modules: < 176 W; Supervisor module CM88-CM: < 50 W; Line card:; CM88-48GT-H: < 75 W; CM88-48SFP-H: < 95 W; CM88-48XS-H: < 160 W; CM88-8CQ-H: < 130 W

Ortam ve Güvenilirlik 18 satır

Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.)
MTBF	216,000 hours (about 24 years)
Fan	2 x pluggable fan modules
Fan Yedekliliği	1+1 redundancy
Isı Dağılımı	Supervisor module/line card: right-to-rear airflow; System power module: front-to-rear airflow
Gürültü Seviyesi	27°C (80.6°F): 70 dB; 45°C (113°F): 77 dB
Module hot swapping	Supported: supervisor modules, line cards
Güç Modülü Sıcak Takas	Supported; (Switch mode power supplies support hot-swapping power cords)
Fan Modülü Sıcak Takas	Destekleniyor
USB hot swapping	Destekleniyor
Cable hot swapping	All ports on line cards support hot-swapping cables.
Güç Kaynağı İzleme	Monitoring of the power supply model, temperature, power, and voltage; Power supply failure alarming; Power-on control of line cards based on the supported power
Fan İzleme	Fan speed adjustment: 256 levels (Only automatic adjustment is supported.); Fan failure alarming
Sıcaklık İzleme	Temperature monitoring, over-temperature alarming
ESD Koruması	ESD contact discharge/air discharge: 6 kV/ 8kV; ESD immunity contact discharge/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port : 4 kV; Service port: 4 kV; Power port: 6 kV

Sertifikalar ve Uyumluluk 2 satır

Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

RG-CS88 Series 10 satır

Ethernet Anahtarlama	Jumbo frame (maximum length: 9216 bytes); 802.3az EEE; Maximum number of VLANs that can be created: 4,094; Super VLAN, Private VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
MPLS	MPLS IPv6; MPLS L3VPN; MPLS 6VPE; MPLS MIB (RFC 1273, RFC 4265, and RFC 4382)
IP Servisleri	Static and dynamic ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DNS; DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; GRE tunnel; Manual tunnel, automatic tunnel, and ISATAP tunnel for IPv6; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2 and OSPFv3; IPv4/IPv6 IS-IS; BGP4 and BGP4+; IPv4/IPv6 VRF; Policy-based routing (PBR); GR; EVPN
Multicast	IGMP v1/v2/v3; IGMP proxy; IGMP snooping v1/v2/v3; IGMP fast leave; PIM-DM, PIM-SM, and PIM-SSM; PIM-SSM for IPv4 and IPv6; MSDP to achieve inter-domain multicast; MLDv1 and MLDv2; MLD v1/v2 snooping; Multicast static routing; Multicast source IP address check; Multicast source port check; PIM-SMv6
ACL ve QoS	Standard IP ACLs (hardware ACLs based on IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range); ACL80 and IPv6 ACL; Applying ACLs globally (hardware ACLs based on flex
Güvenlik	AAA; RADIUS authorization and accounting; TACACS+; Portal authentication, RADIUS, and TACACS+ login authentication; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1 and SSHv2; Global IP-MAC binding; ICMP; Port security; IP source guard; DAI; SAVI; ARP spoofing prevention; CPU Protect Policy (CPP) and NFPP; Various attack defense functions, incl
Güvenilirlik	Rapid Ethernet Uplink Protection (REUP); Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; Data Link Detection Protocol (DLDP); IPv4 VRRP v2/v3 and IPv6 VRRP; VRRP for the super-VLAN; BFD; 1+1 redundancy for supervisor modules and fan modules, and N+M redundancy for power modules; Hot swapping of components; Hot patch and online installation of patches; GR for OSPF/IS-IS/BGP; BFD for VRRP/OSPF/BGP4/ISIS/ISISv6/s
Cihaz Sanallaştırma	VSU
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFLOW; NTP; SNTP; FTP and TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); NETCONF; CWMP; gRPC; Cloud and SON; Console/AUX Modem/Telnet/SSH2.0 CLI configuration; Fault alarm and auto-recovery; System operation logging

Temel Özellikler 5 satır

Supervisor module slots	2
Line card slots	6
İletim Hızı	7200 Mpps
Boyutlar (G x D x Y)	442 mm x 465mm x 441.7 mm (17.40 in. x 18.31 in. x 17.39 in.) 10 RU
Device size	10 RU

Genel bakış

Ruijie RG-CS88-08 kullanım alanları ve özellikleri.

Fit for data center, MAN, campus, and integrated data center and campus scenarios

Cloud Managed Modular Core Switch RG-CS88-08

10 RU compact size, saving cabinet space,high-density 1G/10G/40G/100G line cards support up to 288 10GE ports. Only one line card is required to meet networking requirements at the small- or medium-sized network core or medium-sized network aggregation layer.

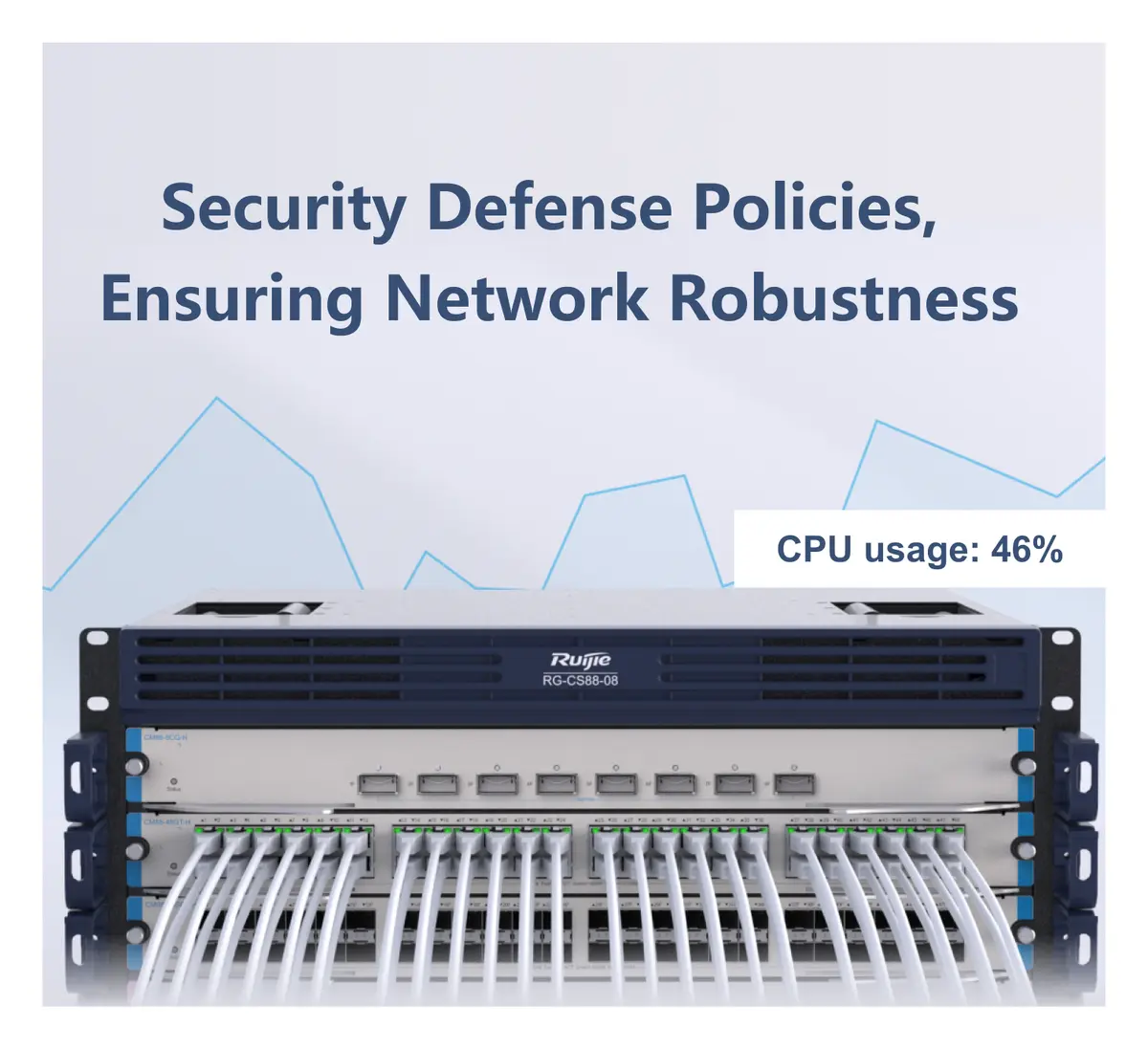

Security Defense Policies, Ensuring Network Robustness

CPP

NFPP

CPU Protection Policy (CPP) controls the types and traffic of packets sent to the CPU, preventing CPU usage exceptions.

Network Foundation Protection Policy (NFPP) enables automatic defense against attacks such as ARP attacks and isolates users launching attacks, safeguarding networks.

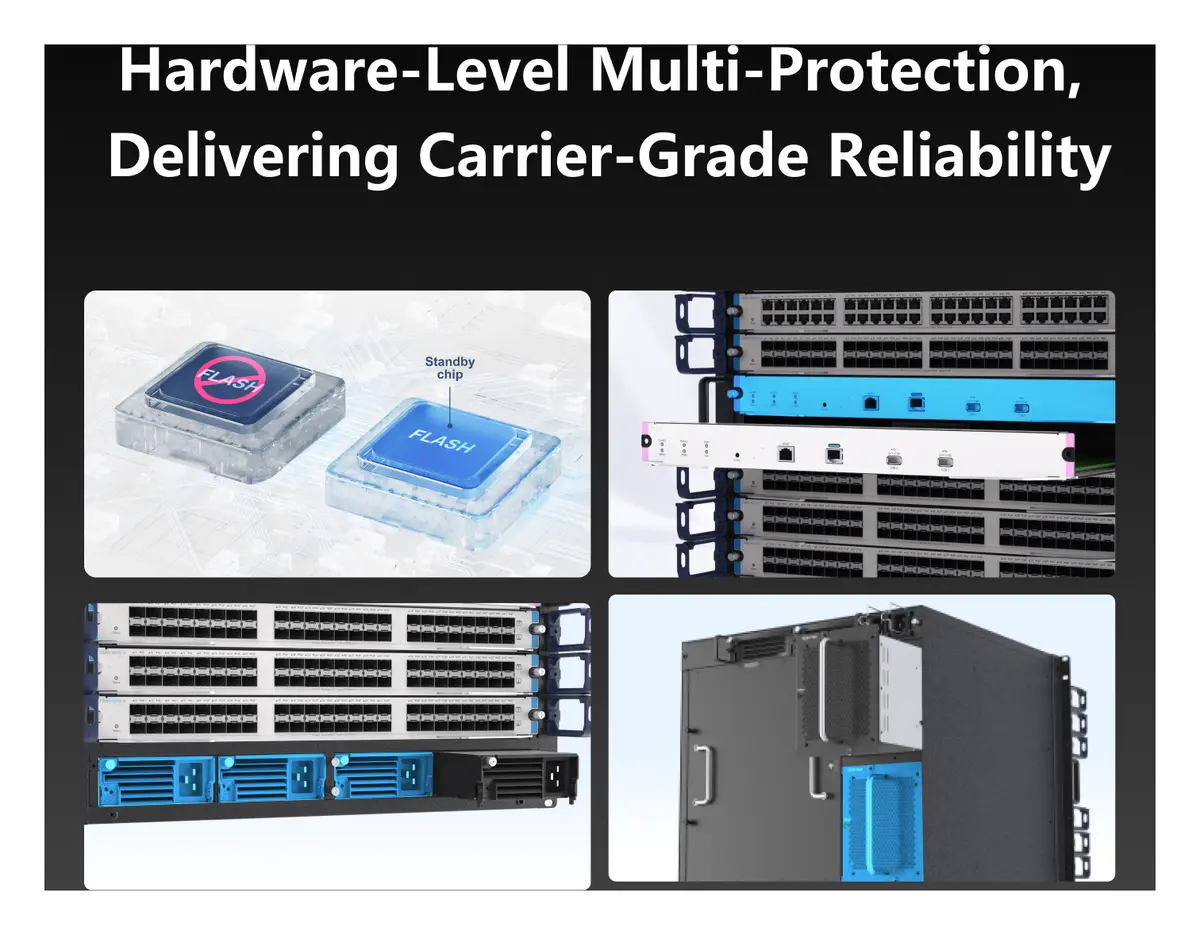

Hardware-Level Multi-Protection, Delivering Carrier-Grade Reliability

Dual-Boot Backup

Two flash chips for storing boot software achieve hardware-level boot redundancy, avoiding switch boot failures due to a flash chip fault.

1+1 Supervisor Module Redundancy

1+1 hot standby ensures nonstop switch services.

N+M Power Supply Redundancy

Four hot-swappable power supplies realize failover within seconds and service continuity during power replacement, ensuring link reliability.

1+1 Fan Redundancy

Two axial flow fans for factory delivery support 256-level speed regulation and precise temperature control, reducing energy consumption and noise.

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statisticsat anytime anywhere
Configure VLANs on Ruijie Cloud APP
Ease of maintenance, saving onsite labor and cost

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS88-08 Compliance DocumentPDF · RG-CS88-08
