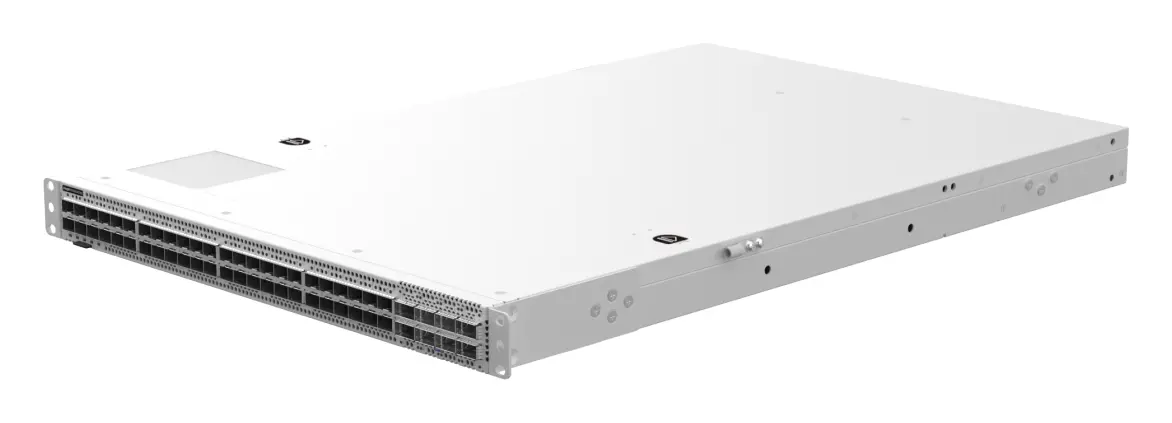

Ruijie RG-S6580-48CQ8QC 48 Port 100G QSFP28 8×400G QSFP-DD Veri Merkezi Switch

ModelRG-S6580-48CQ8QC

Ruijie RG-S6580-48CQ8QC, 48 portlu bir yönetilebilir switch'tir.

PoE: PoE yok
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Various ports, and 48 x 100GE DSFP and 8 x 400GE QSPF-DD ports, supporting flexible networking
Hardware-level redundancy, ensuring nonstop services
Lossless Ethernet, ensuring zero packet loss in RDMA E2E communication
Telemetry network monitoring and automatic O&M, making management simple and efficient

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 15 satır

Boyutlar (G x D x Y)	442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	11.5 kg (25.35 lbs., a chassis with two power modules and six fan modules)
Anahtarlama Kapasitesi	16.0 Tbps
Paket İletim Hızı	2680 Mpps
Servis Portu	48 x 100G DSFP ports; 8 x 100G/400G QSFP-DD ports
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	2 x power module slots; 6 x fan module slots
Güç Tüketimi	Maximum power consumption: 742 W; Typical power consumption: 633 W; Static power consumption: 178 W
Güç Girişi	RG-PA1200I-F (AC input); Rated input voltage:; 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60Hz; Maximum input voltage:; 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current:; 13.8 A(100 V AC to 127 V AC); 8.5 A (200 V AC to 240 V AC); Power port type: C14; RG-PA1200I-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated current: 6.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri 11 satır

Layer 2 Protocols	IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)
Layer 3 Protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP
IPv6 Basic Protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+
Data Center Features	PFC, ECN, and other data center features; RDMA; VXLAN bridge; VXLAN gateway; IPv6 VXLAN over IPv4; IPv4 VXLAN over IPv4; ECN over VXLAN; PFC over VXLAN
Visualization	gRPC; sFlow sampling; IPFIX
QoS	Mapping of IEEE 802.1p, DSCP, and ToS priorities; ACL-based traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR; Congestion avoidance mechanisms such as WRED and tail discarding
HA Design	GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules
Security Features	Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management
Yönetim Modu	SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm
Other Protocols	DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog

Temel Özellikler 2 satır

Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)

Genel bakış

Ruijie RG-S6580-48CQ8QC kullanım alanları ve özellikleri.

High-density 400GE/100GE ports, supporting high-bandwidth and large-capacity server access

Data Center 100GE Access Switch RG-S6580-48CQ8QC

The RG-S6580-48CQ8QC is a high-density access switch and provides various ports within the space of 1 RU. With improved data forwarding capabilities, it can be flexibly deployed and supports access of 100G servers. It can evolve to 100GE/400GE data centers.

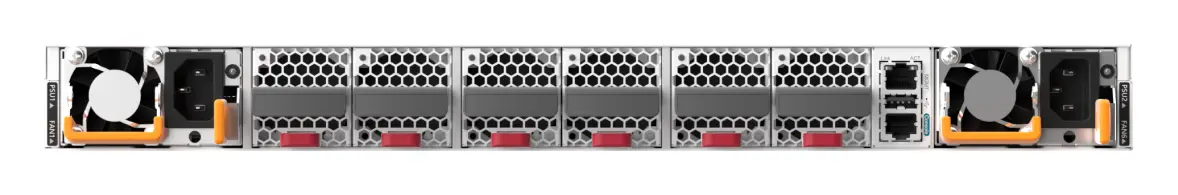

Hardware-Level Redundancy, Ensuring Nonstop Services

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

1+1 power modules, hot swapping, and service failover within seconds, ensuing service continuity

5+1 fan modules, intelligent fan speed adjustment, and highly efficient heat dissipation, building green data centers

Lossless Ethernet, Ensuring Zero Packet Loss in RDMA E2E Communication

With RDMA enabled, communication data on the RG-S6580-48CQ8QC does not need to be handled by the CPU. This reduces the burden of the CPU and effectively resolves the latency problem. Using PFC and ECN, the RG-S6580-48CQ8QC intelligently exchanges data to prevent packet loss and ensures lossless data transmission.

Telemetry Network Monitoring and Automatic O&M, Making Management Simple and Efficient

RG-S6580-48CQ8QC enabled with Telemetry uses the push mode to proactively collect and push information and provides sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-S6580-48CQ8QC Compliance DocumentPDF · RG-S6580-48CQ8QC

Sık sorulanlar

RG-S6580-48CQ8QC hakkında kısa yanıtlar.

RG-S6580-48CQ8QC kaç portlu?

RG-S6580-48CQ8QC 48 porta sahiptir.

RG-S6580-48CQ8QC fiyatı ne kadar?

RG-S6580-48CQ8QC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
