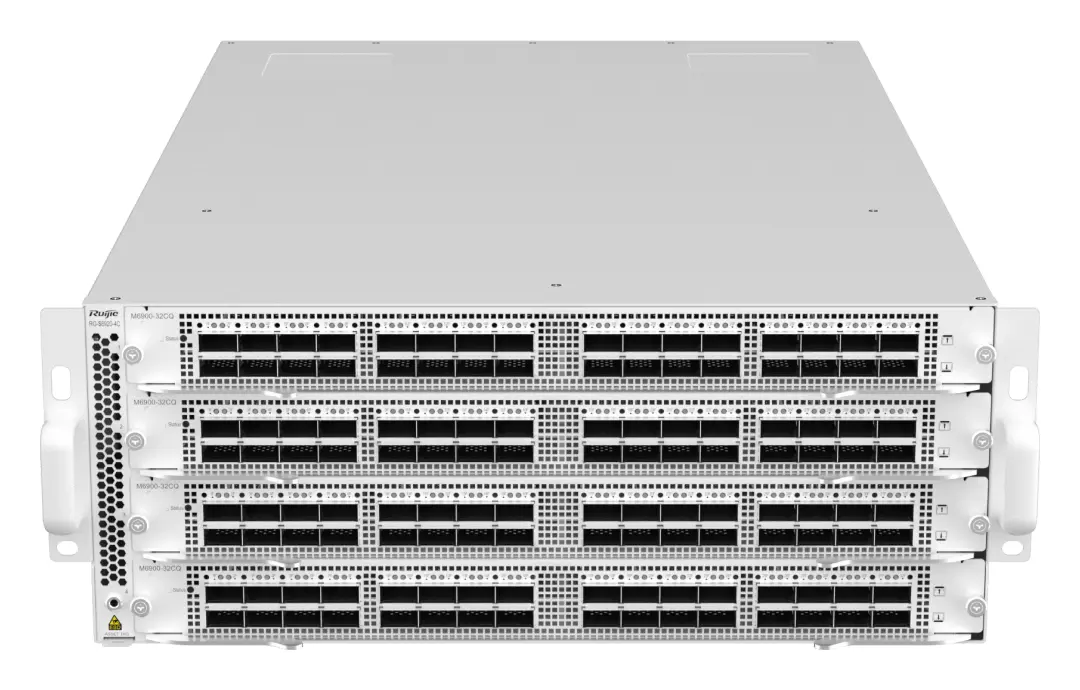

RUIJIE · RG-S6920-4C Ruijie RG-S6920-4C 4 Slot Modüler Veri Merkezi Switch

Ruijie RG-S6920-4C 4 Slot Modüler Veri Merkezi Switch

ModelRG-S6920-4C

Ruijie RG-S6920-4C bir yönetilebilir switch'tir. Öne çıkan özellikleri: diverse ports, four service slots, up to 128 × 100ge ports or 32 × 400ge qsfp-dd ports, hardware-level redundancy, ensuring service continuity, lossless ethernet, ensuring zero packet loss during rdma e2e communication, telemetry-based network monitoring and automated o&m, making management simple and efficient.

PoE: PoE yok

Diverse ports, four service slots, up to 128 × 100GE ports or 32 × 400GE QSFP-DD ports
Hardware-level redundancy, ensuring service continuity
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
Telemetry-based network monitoring and automated O&M, making management simple and efficient
Highly-efficient heat dissipation and energy saving, with power consumption less than 1950 W and power conversion efficiency up to 94%

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S6920-4C özellikleri ve kullanım alanları.

Compared with the traditional networking with modular core switches, the entire network with RG-S6920-4C switches uses the Clos architecture, reducing the TCO by 25% and power consumption by 31%. Furthermore, RG-S6920-4C switches help build stable and lossless networks.

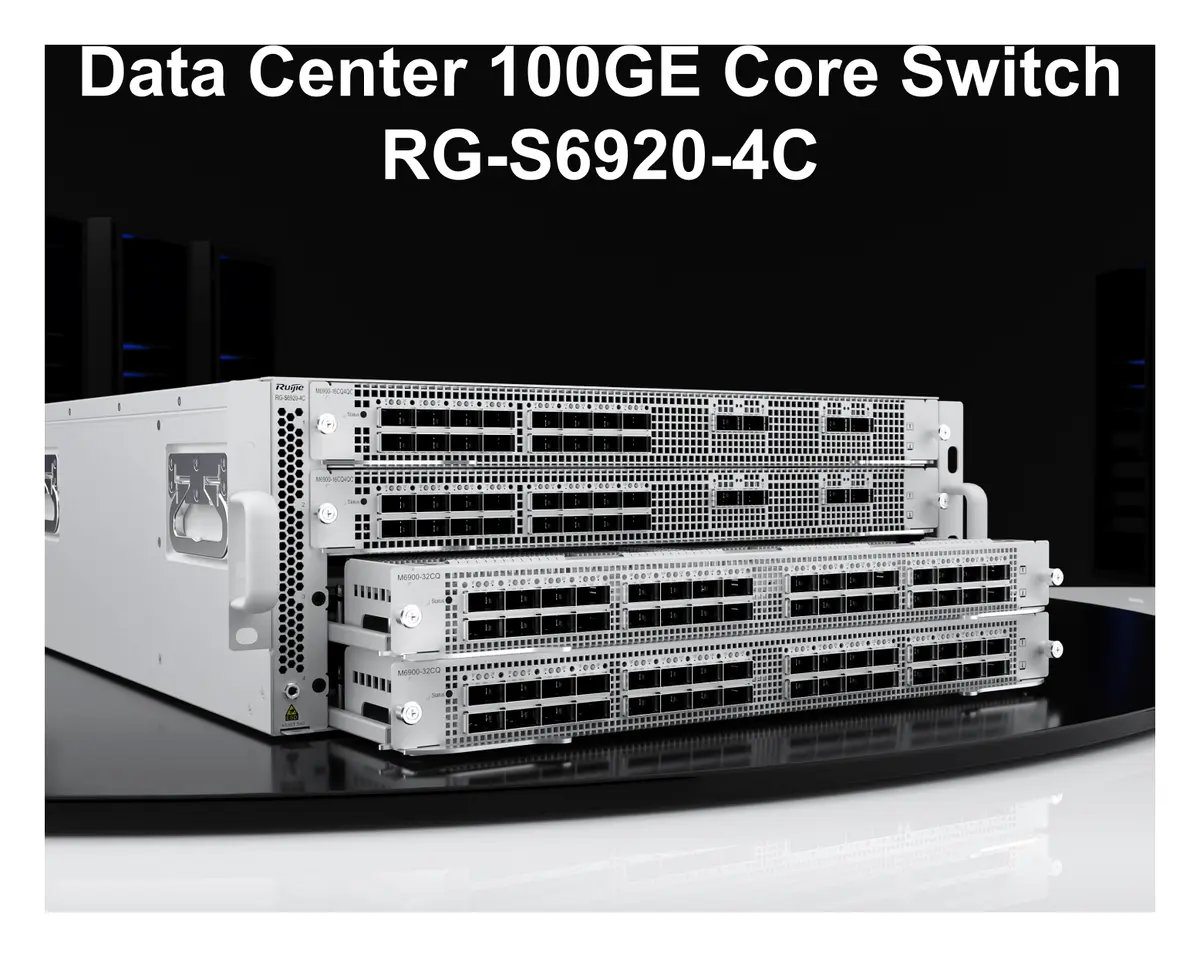

Data Center 100GE Core Switch RG-S6920-4C

Four service slots, with 100GE and 400GE line cards, allowing for easy expansion and satisfying future bandwidth expansion needs Various ports, up to 128 × 100GE ports or 32 × 400GE QSFP-DD ports., which are fit for different scenarios of data center networks

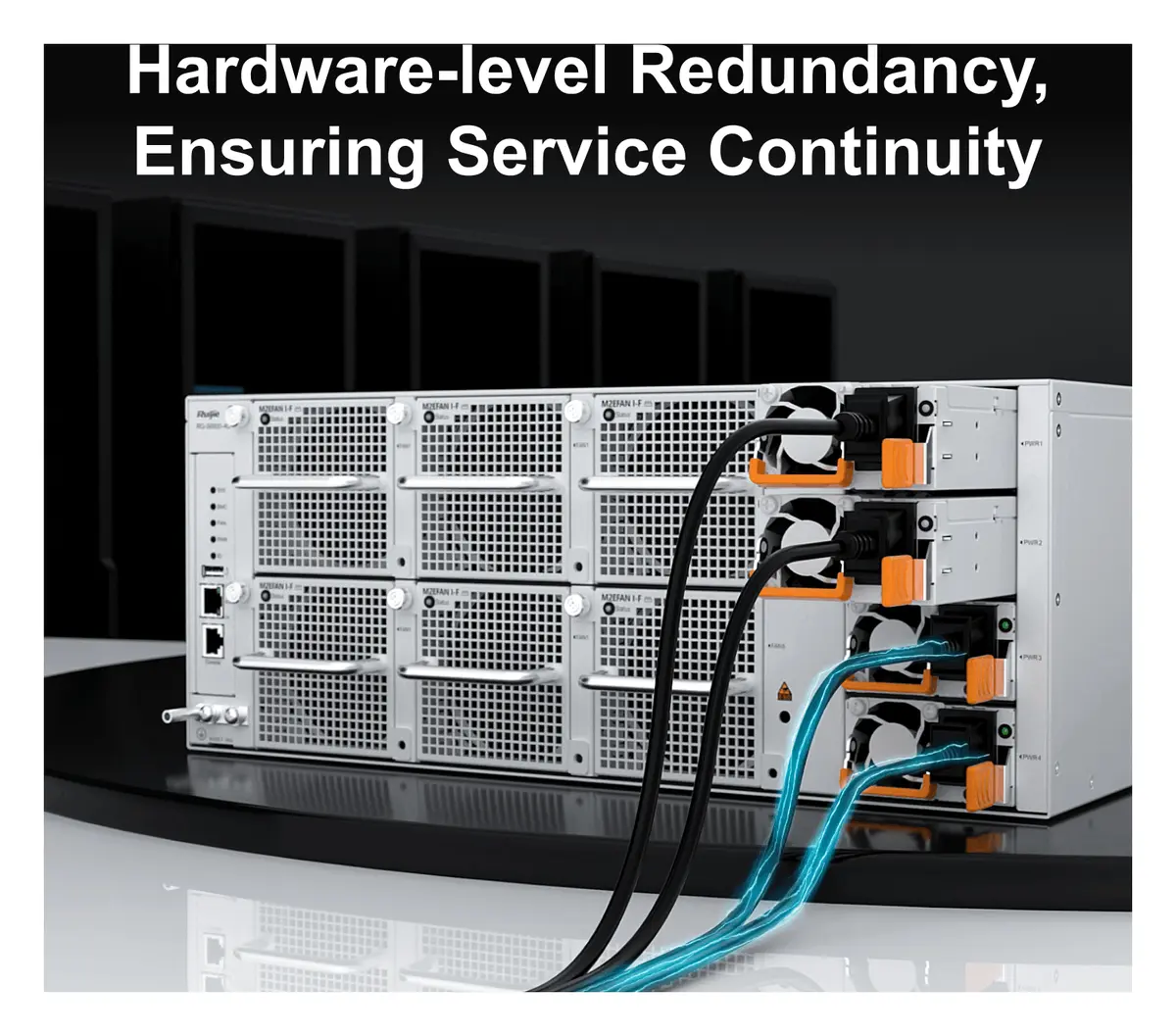

Hardware-level Redundancy, Ensuring Service Continuity

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

Power modules in 2+2 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links

Fan modules in 5+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

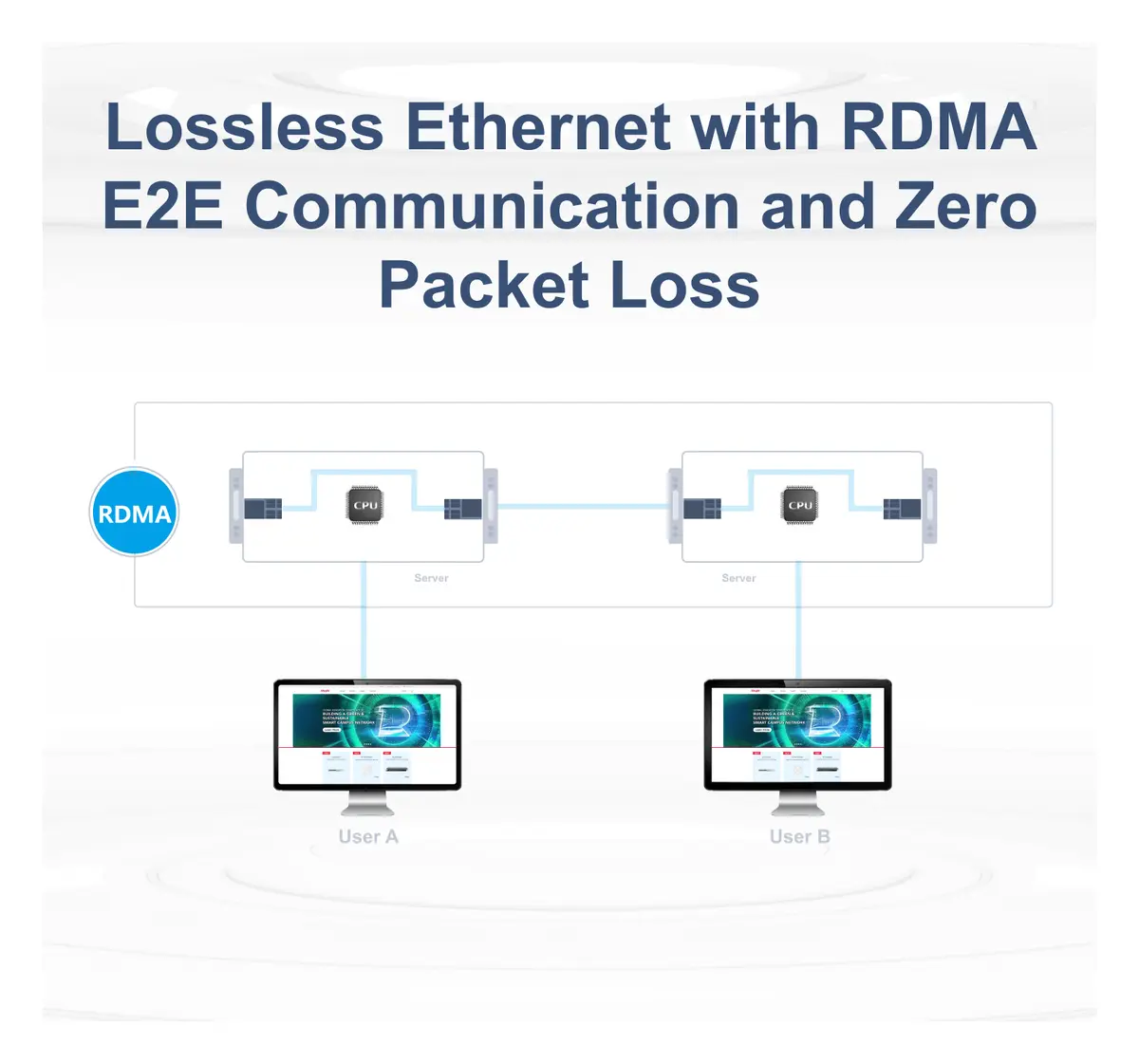

Lossless Ethernet with RDMA E2E Communication and Zero Packet Loss

With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden and effectively solves the network latency problem. PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

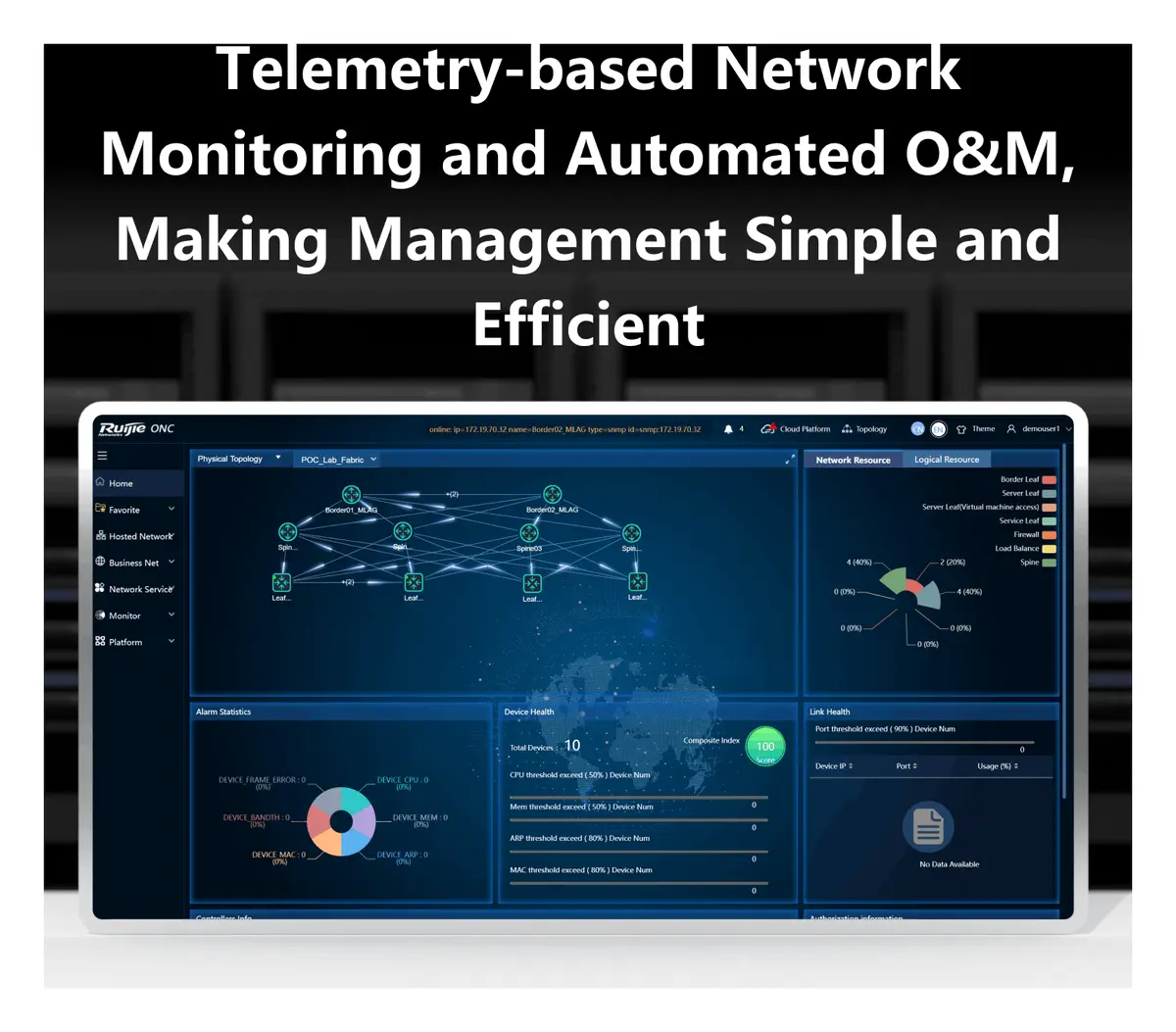

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient

The switch enabled with telemetry provides clear data status and hierarchy. The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Dimensions; (W × D × H)	442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.)
Kabin Yüksekliği	4 RU
Cihaz Ağırlığı	25.15 kg (55.45 lbs., empty chassis); 34.25 kg (75.51 lbs., a chassis with four power modules and six fan modules)
Anahtarlama Kapasitesi	25.6 Tbps
Paket İletim Hızı	8000 Mpps
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	4 x expansion module slots; 4 x power module slots; 6 x fan module slots
Güç Tüketimi	Maximum power consumption: 1950 W; Typical power consumption: 1469 W; Static power consumption: 516 W
Güç Girişi	RG-PA1200I-F (AC input); Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 13.8 A (100 V AC to 127 V AC); 8.5 A (200 V AC to 240 V AC); Power port type: C14; RG-PA1200I-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated current: 6.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 2000 m (6561.68 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri
Layer 2 Protocols	IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP
Layer 3 Protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP
IPv6 Basic Protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel and IPv4 over IPv6 tunnel
Data Center Features	PFC, ECN, and other data center features; M-LAG; RDMA; OpenFlow 1.3; BGP-EVPN; Global load balancing technologies such as RALB and AILB
Visualization	gRPC; sFLOW sampling; INT
QoS	Mapping of IEEE 802.1p, DSCP, and ToS priorities; ACL-based traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR; Congestion avoidance mechanisms such as WRED and tail discarding
HA Design	GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules
Security Features	Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, A
Yönetim Modu	SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm function, temperature alarm function, and configuration rollback
Other Protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Temel Özellikler
Dimensions(W × D × H)	442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.)
Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-S6920-4C hakkında kısa yanıtlar.

RG-S6920-4C fiyatı ne kadar?

RG-S6920-4C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, RG-S6920-4C için fiyat ve teslim süresini iletelim.
