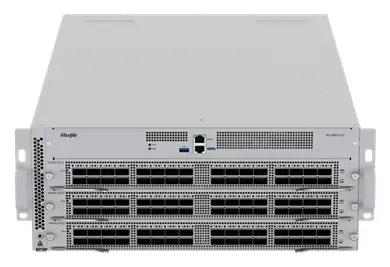

RUIJIE · RG-S6910-3C Ruijie RG-S6910-3C 3 Slot Modüler Veri Merkezi Switch

Ruijie RG-S6910-3C 3 Slot Modüler Veri Merkezi Switch

ModelRG-S6910-3C

Ruijie RG-S6910-3C bir yönetilebilir switch'tir. Öne çıkan özellikleri: various ports, 100ge line cards, and up to 96 x 100ge ports, hardware-level redundancy, ensuring service continuity, telemetry-based network monitoring and automated o&m, making management simple and efficient, support of ipv4/ipv6 dual-stack protocols, providing flexible networking.

Port hızı: 10G uplink
PoE: PoE yok

Various ports, 100GE line cards, and up to 96 x 100GE ports
Hardware-level redundancy, ensuring service continuity
Telemetry-based network monitoring and automated O&M, making management simple and efficient
Support of IPv4/IPv6 dual-stack protocols, providing flexible networking

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S6910-3C özellikleri ve kullanım alanları.

16 GB buffer that supports high-performance routing connections, and future evolution to 400GE data center network

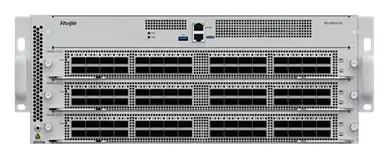

Data Center 100GE DCI Core Switch RG-S6910-3C

16 GB powerful buffer capability and buffer scheduling mechanism, providing a maximum of 96 x 100GE ports within 4 RU height, which is suitable for DCI core scenarios in data centers Support of high-performance routing connections, meeting future expansion needs of data center networks

Ports

Dimensions

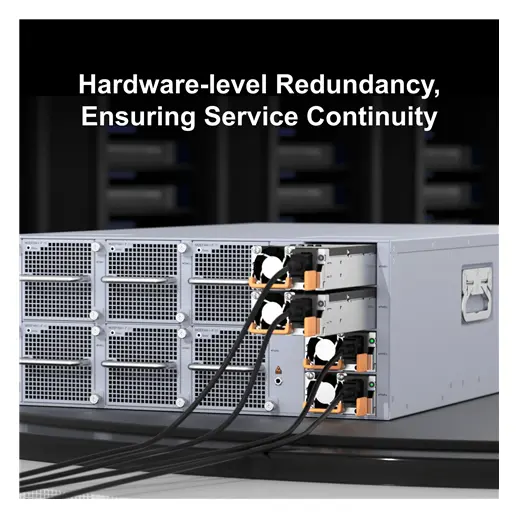

Hardware-level Redundancy, Ensuring Service Continuity

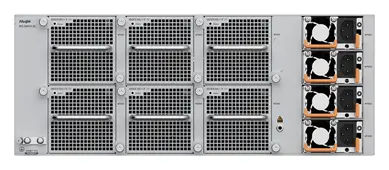

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

Power modules in 2+2 redundancy mode, hot swapping, and failover in seconds, providing nonstop services

Fan modules in 5+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

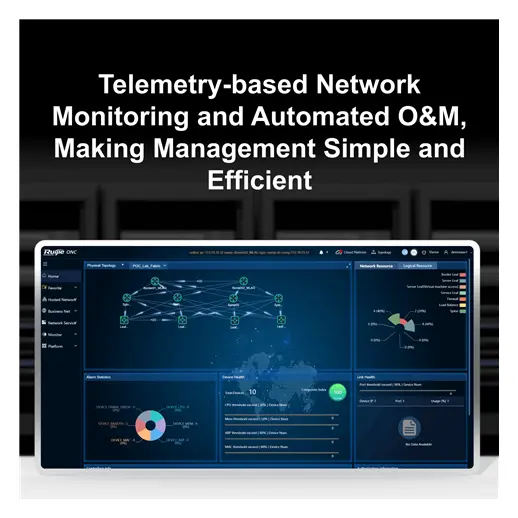

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient

The switch enabled with telemetry provides clear data status and hierarchy. The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Boyutlar (G x D x Y)	442 mm x 735 mm x 173.6 mm (17.40 in. x 28.94 in. x 6.83 in.)
Kabin Yüksekliği	4 RU
Cihaz Ağırlığı	22.9 kg (50.49 lbs., empty chassis); 32 kg (70.55 lbs., a chassis with four power modules and six fan modules)
Anahtarlama Kapasitesi	19.2 Tbps
Paket İletim Hızı	4000 Mpps
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	3 x expansion module slots; 4 x power module slots; 6 x fan module slots
Güç Tüketimi	Maximum power consumption: 2046 W; Typical power consumption: 1092 W; Static power consumption: 760 W
Güç Girişi	RG-PA1200I-F (AC input); Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 13.8 A (100 V AC to 127 V AC); 8.5A (200 V AC to 240 V AC); Power port type: C14; RG-PA1200I-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated current: 6.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 2000 m (6561.68 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri
Layer 2 Protocols	IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (link aggregation), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), IGMP Snooping, Jumbo Frame (9 KB), IEEE 802.1ad (QinQ), GVRP
Layer 3 Protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP
IPv6 Basic Protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunneling, IPv4 over IPv6 tunneling
Visualization	gRPC; sFLOW and IPFIX
QoS	Mapping of 802.1p, DSCP, and ToS priorities, ACL-based traffic classification, priority marking/remarking, multiple queue scheduling mechanisms available including SP, WFQ, and SP+WRR
HA Design	GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swap for all cards and power modules
Security Features	Network foundation protection policy, CPP, DDoS attack defense, illegitimate packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression
Yönetim Modu	SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN
Other Protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Temel Özellikler
Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-S6910-3C hakkında kısa yanıtlar.

RG-S6910-3C fiyatı ne kadar?

RG-S6910-3C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
