Yönetilebilir Switch RG-N18000-E

Ruijie RG-N18014-E 12 Slot Modüler Omurga Switch

Q: RG-N18014-E fiyatı ne kadar?

RG-N18014-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRG-N18014-E

Ruijie RG-N18014-E bir yönetilebilir switch'tir. 48 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Clos orthogonal architecture, delivering non-blocking forwarding and high-speed transmission without packet loss
RGOS, a fully-decoupled modular operating system, providing independent components and nonstop services
Multiple hardware-level protection, offering carrier-class reliability and ensuring continuous operation without downtime
Fan connections in in-line mode and innovative Y-shaped airflow, improving heat dissipation efficiency and enhancing system reliability
Support for SDN, achieving rapid deployment and automated O&M for campus networks

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 8 satır

Modül Yuvası	2 x supervisor module slots; 12 x line card slots; 4 x switch fabric module slots; 4 x power module slots; 2 x fan module slots
Supervisor module	M18000E-CM; M18000E-CM II; Note: The supervisor modules of the M18000E-CM and M18000E-CM II are incompatible with each other. Do not insert them into the same chassis. The main program versions of the two supervisor modules are independent.
Switch fabric module	M18000E-FE-X II
Line card	M18000E-48GT4XS-XA; M18000E-48SFP4XS-XA; M18000E-24GT8SFP8XS-XA; M18000E-32XS-XB; M18000E-52XS-XB; M18000E-12CQ-XB; M18000E-8SFG; M18000E-8SFX; M18000E-HCA (modular line card); HCA-4CQ (modular port adapter); HCA-20XS (modular port adapter)
Güç Modülü	RG-PA600I; RG-PA1600I
Fan Modülü	M14FAN-F (pre-installed 2)
Module management port	Supervisor module:; 1 x RJ45 console port; 1 x RJ45 MGMT port; Switch fabric module:
USB	Supervisor module: 1 x USB 2.0 port (no capacity limit, 2G/4G/8G/16G/32G capacity tested)

Sistem Özellikleri 16 satır

Sistem Paket İletim Hızı	21,000 Mpps
Sistem Anahtarlama Kapasitesi	28.8 Tbps
İşlemci (CPU)	Supervisor module:; M18000E-CM: quad-core CPU, each core with the clock speed of 2.2 GHz; M18000E-CM II: octa-core CPU, each core with the clock speed of 2.2 GHz; Switch fabric module:; Quad-core CPU, each core with the clock speed of 2.2 GHz; Line card:; M18000E-XA/XB/CWDM card: quad-core CPU, each core with the clock speed of 2.2 GHz; M18000E-HCA: octa-core CPU, each core with the clock speed of 2.2 GHz
Gerçek Zamanlı Saat (RTC)	M18000E-CM/CM II: supported
BootROM	M18000E-CM/CM II: 16 MB; XA/XB/CWDM/FE card: 16 MB; M18000E-HCA: 16 MB
Flash Bellek	M18000E-CM: 8 GB; M18000E-CM II: 16 GB; XA/XB/CWDM/FE card: 8 GB; M18000E-HCA: 16 GB
Bellek	M18000E-CM: 4 GB DDR4; M18000E-CM II: 16 GB DDR4; XA/XB/CWDM/FE card: 4 GB DDR4; M18000E-HCA: 16 GB DDR4
Switch Tampon Belleği	XA card: 4 MB; XB/CWDM/HCA card: 35 MB
Number of MAC address	Number of static MAC addresses; XA card: 4,000; XB card: 10,000; HCA card: 10,000; Number of global MAC addresses; XA card: 96,000 (installed without the HCA card); 150,000 (installed with the HCA card); XB card: 256,000 (installed without the HCA card); 512,000 (installed with the HCA card); HCA card: 512,000
ARP Tablosu Boyutu	XA card: 40,000 (installed without the HCA card); 64,000 (installed with the HCA card); XB card: 96,000; HCA card: 96,000
Number of IPv4 unicast routes	XA card: 64,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card); XB card: 350,000 (shared with IPv6 routes, installed without the HCA card); 1,500,000 (installed with the HCA card); HCA card: 1,500,000 (shared with IPv6 routes)
Number of IPv4 multicast routes	XA card: 4,000; XB card: 4,000; HCA card: 4,000
Number of IPv6 unicast routes	XA card: 15,000 (≤ 64 bytes, shared with IPv4 routes, installed without the HCA card); 1,000,000 (installed with the HCA card); XB card: 65,000 (installed without the HCA card); 1,000,000 (installed with the HCA card); HCA card: 1,000,000
Number of IPv6 multicast routes	XA card: 2,000; XB card: 2,000; HCA card: 2,000
Number of ACEs	XA card:; Ingress: 7,000; Egress: 1,500; XB card:; Ingress: 28,000 (installed without the HCA card); 24,000 (installed with the HCA card); Egress: 4,000; HCA card:; Ingress: 24,000
Number of VSU members	2

* 2 means the system's switching capacity. 4 satır

Güç Kaynağı	4 x pluggable power modules
Güç Girişi	RG-PA600I (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 10 A; RG-PA1600I (AC input):; Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz; Maximum input current: 16 A
Maks. Çıkış Gücü	RG-PA600I: 600 W; RG-PA1600I:; 100 V AC to 176 V AC: 1200 W; 176 V AC to 240 V AC: 1600 W
Module power consumption	Supervisor module:; M18000E-CM: < 60 W; M18000E-CM II: < 70 W; Switch fabric module:; M18000E-FE-X II: < 160 W; Line card:; M18000E-48GT4XS-XA: < 85 W; M18000E-48SFP4XS-XA: < 117 W; M18000E-24GT8SFP8XS-XA: < 95 W; M18000E-32XS-XB: < 149 W; M18000E-52XS-XB: < 250 W; M18000E-12CQ-XB: < 240 W; M18000E-8SFG: < 250 W; M18000E-8SFX: < 250 W; M18000E-HCA: < 280 W; HCA-20XS: < 30 W; HCA-4CQ: < 20 W; Fan module:; M14FAN-F: < 360 W

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442.0 mm x 561.0 mm x 605.1 mm (17.40 in. x 22.09 in. x 23.82 in., cable management; bracket excluded); 442.0 mm x 670.1 mm x 605.1 mm (17.40 in. x 26.38 in. x 23.82 in., cable management; bracket included)
Kutu Boyutları (G x D x Y)	860.0 mm x 670.0 mm x 887.0 mm; (33.86 in. x 26.38 in. x 34.92 in.)
Kabin Yüksekliği	14 RU
Cihaz Ağırlığı	68.3 kg (150.58 lbs, empty chassis with 2 fan modules)
Kutulu Ağırlık	82.5 kg (181.88 lbs)

Ortam ve Güvenilirlik 20 satır

Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 3,000 m (9,842.52 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF	342,000 hours (about 39 years)
Fan	2 x pluggable fan modules (pre-installed)
Isı Dağılımı	Supervisor module and switch fabric module: front-to-rear airflow; Line card: right-to-rear airflow
Gürültü Seviyesi	35°C (95°F): 55.9 dB; 50°C (122°F): 73.4 dB
Supervisor module redundancy	1+1 redundancy
Switch fabric module redundancy	1+N redundancy
Güç Modülü Yedekliliği	N+M redundancy (same model)
Fan Yedekliliği	1+1 redundancy
Module hot swapping	Destekleniyor
Güç Modülü Sıcak Takas	Destekleniyor
Fan Modülü Sıcak Takas	Destekleniyor
Cable hot swapping	All ports on line cards support hot swapping of cables.; The switch-mode power supply supports hot swapping of power cords.
Güç Kaynağı İzleme	Monitoring of the model, temperature, power, and voltage of the power module; Power supply failure alarming; Control of line card power-on based on the power supply status
Fan İzleme	Fan speed adjustment: 256 levels; Fan failure alarming
Sıcaklık İzleme	Over-temperature alarming
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 4 kV; Power port: common mode 6 kV, differential mode 6 kV

Sertifikalar ve Uyumluluk 3 satır

Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Yazılım Özellikleri 11 satır

Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); IEEE 802.3az EEE; IEEE 802.1Q (supporting 4K VLANs); Voice VLAN; Super-VLAN and private VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
IP Servisleri	Static and dynamic ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DNS; DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping; IPv4 and IPv6 GRE tunnel; IPv6 manual tunnel, IPv6 automatic tunnel, and IPv6 ISATAP tunnel
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2 and OSPFv3; GR; IS-ISv4 and IS-ISv6; BGP4 and BGP4+; IPv4/IPv6 VRF; IPv4/IPv6 PBR
Multicast	IGMPv1/v2/v3; IGMPv1/v2 snooping; IGMP proxy; IGMP fast leave; PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols; Multicast static routing; PIM-SM, PIM-SSM, PIM-SMv6, and PIM-SSMv6; MSDP for inter-domain multicast; MLDv1/v2; MLDv1 snooping; Multicast source IP address check; Multicast source port check; Validity check of IGMP packets; Multicast querier
MPLS	MPLS L3VPN; MPLS 6VPE and MPLS 6PE; MPLS IPv6; MPLS MIB (RFC 1273, 4265, 4382)
ACL ve QoS	Standard IP ACLs (hardware ACLs based on IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range); ACL80 and IPv6 ACL; Applying ACLs globally (hardware ACLs based on flex
Güvenlik	Multi-AAA; RADIUS authentication, authorization, and accounting; TACACS+; IEEE 802.1X; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1 and SSHv2; Global IP-MAC binding; ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface); Port security; IP source guard; SAVI; ARP spoofing prevention; CPP and NFPP; Various att
Güvenilirlik	REUP; Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; Data Link Detection Protocol (DLDP); IPv4/IPv6 ECMP; IPv4 VRRP v2/v3 and IPv6 VRRP v3; BFD; Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM); 1+1 redundancy for supervisor modules; 1+N redundancy for switch fabric modules; N+M redundancy for power modules; 1+1 redundancy for fan modules.; Hot patching for online patch upgrade;
Cihaz Sanallaştırma	VSU
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios); N:1 mirroring, 1:N mirroring, and flow-based mirroring; VLAN mirroring; NTP and SNTP; FTP, SFTP, TFTP, and Xmodem; SNMP v1/v2/c3; RMON (1, 2, 3, 9); Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups; RMON used to implement Ether
VXLAN	EVPN VXLAN tunnel establishment; LAN access to VXLAN; IPv4 over IPv4; Distributed gateway; IPv6 over IPv6; Using an SVI to connect to the VXLAN network; Using a routed interface to connect to the VXLAN network; Proxy ARP (replying with the actual MAC address)); ND proxy (replying with the actual MAC address); ND reply (replying with the actual MAC address); VXLAN static route; Anycast gateway; VXLAN bridging mode; VXLAN routing mode; Proxy ARP (replying with the gateway MAC address); Configuring

Temel Özellikler 5 satır

Supervisor module slot	2
Line card slot	12
Switch fabric module slot	4
Sistem Paket İletim Hızı	21,000 Mpps
Sistem Anahtarlama Kapasitesi	28.8 Tbps

Genel bakış

Ruijie RG-N18014-E kullanım alanları ve özellikleri.

Fit for data centers, MANs, campus networks, and scenarios with data centers and campus networks

RG-N18014-E High-density Core Switch for Cloud Architecture Network

Up to 52 x 10GE ports and 12 x 100GE ports per line card, and up to 768 x 10GE ports and 96 x 100GE ports per switch Fit for data centers, MANs, campus networks, and scenarios with data centers and campus networks

Front Panel

Rear Panel

Eight line card slots, supporting at most eight line cards

Line cards for your reference：

M18000E-8SFX 8 x SFX 10GE ports (CWDM line card for core switches, applicable to SOE solution 3.0)

M18000E-8SFG 8 x SFG GE ports (CWDM line card for core switches, applicable to SOE solution 3.0)

M18000E-HCA Large-capacity carrier card for authentication, supporting two DNMX interface cards 20 x 10GE optical ports 4 x 100GE optical ports

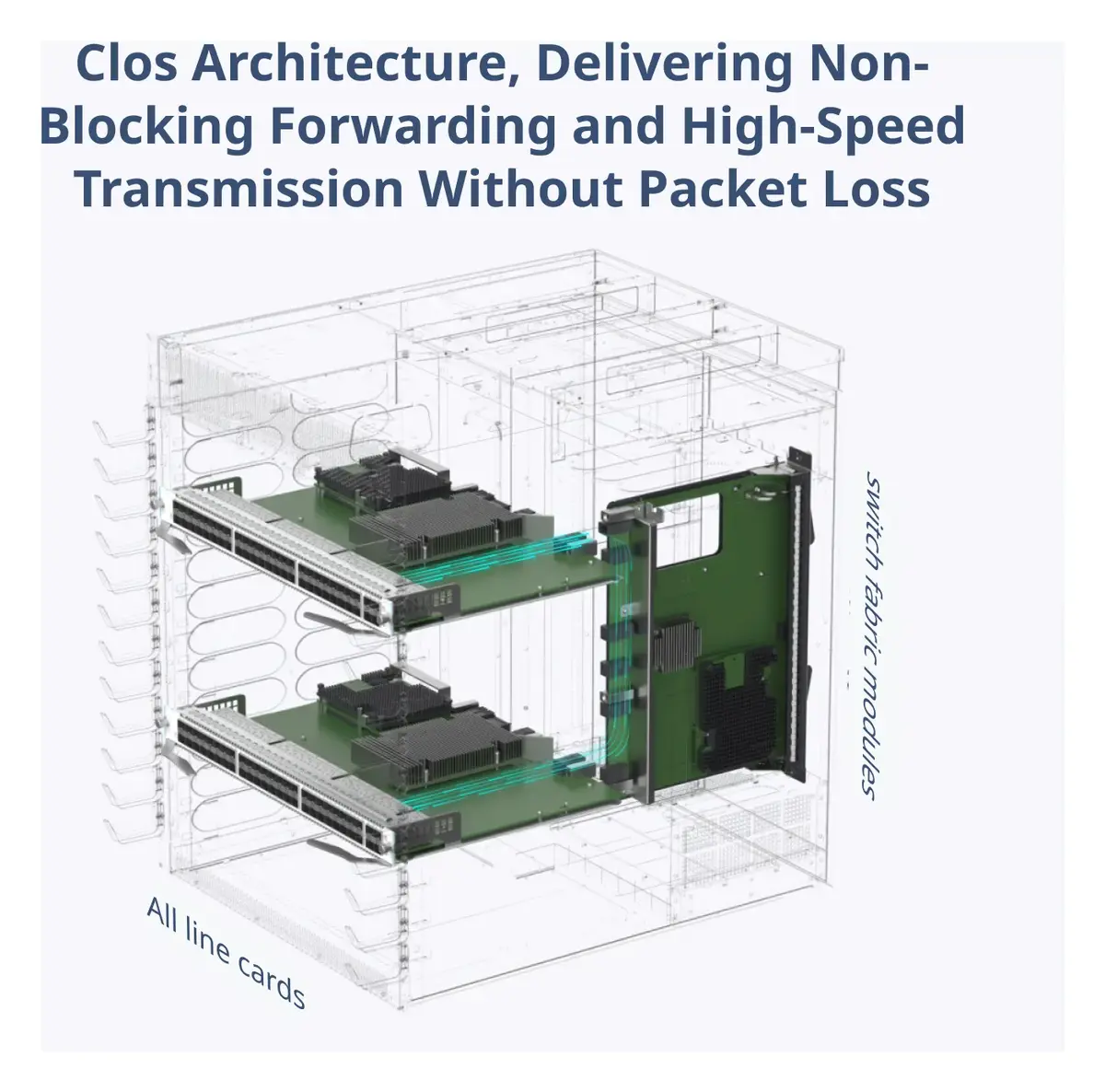

Clos Architecture, Delivering Non-Blocking Forwarding and High-Speed Transmission Without Packet Loss

All line cards and switch fabric modules adopt the orthogonal architecture. Cross-line card traffic is transmitted to switch fabric modules through orthogonal connectors, with low transmission loss. This greatly reduces signal attenuation and improves service traffic transmission efficiency.

RGOS, a Fully-Decoupled Modular OS, Providing Independent Components and Nonstop Services

Completely decoupled service components, allowing automatic recovery upon component failures and ensuring high availability of the system Live upgrade of service component functions, ensuring uninterrupted network for online function expansion

Fault elimination in seconds

Hot patch upgrade

Low CPU usage

Multiple Hardware Protection, Offering Carrier-class Reliability and Ensuring Continuous Operation Without Downtime

Hardware-level Dual Redundancy

Faulty Optical Port Isolation

Dual-boot at the hardware level Two flash chips used to store boot software to achieve hardware-level boot redundancy, avoiding switch boot failures due to flash chip faults

Special optical port protection and separate optical port power supply design, isolating a faulty module without affecting services on other ports Rapid service restartion on the corresponding port after the faulty module is replaced

Fan Connections in In-line Mode and Y-Shaped Airflow, Improving Heat Dissipation and Enhancing System Reliability

Compared with the conventional single fan, fans connected in in-line mode improve the performance by 50% and provide better airflow. Y-shaped airflow design with front and right air inlets and rear air outlets forms a three-dimensional heat dissipation channel, improving heat dissipation efficiency. The airflow of line cards and switch fabric modules is separated from each other, enhancing system reliability.

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-N18014-E Compliance DocumentPDF · RG-N18014-E
