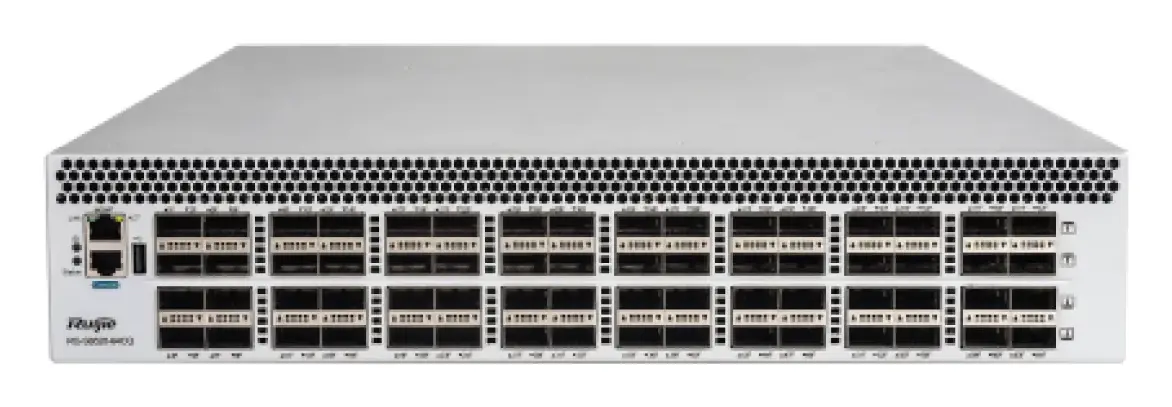

Ruijie RG-S6520-64CQ 64 Port 100G QSFP28 Veri Merkezi Switch

ModelRG-S6520-64CQ

Ruijie RG-S6520-64CQ bir yönetilebilir switch'tir. Öne çıkan özellikleri: 64 x 100ge qsfp28 ports housed in a 2 ru enclosure, cross-device link aggregation (de-stacking/m-lag/vsu), device-level redundancy, flexible networking, and high reliability, lossless ethernet, ensuring zero packet loss during rdma e2e communication, telemetry/grpc/sflow/span-based network monitoring and automated o&m, making management simple and efficient.

PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

64 x 100GE QSFP28 ports housed in a 2 RU enclosure
Cross-device link aggregation (De-stacking/M-LAG/VSU), device-level redundancy, flexible networking, and high reliability
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
Telemetry/gRPC/sFlow/SPAN-based network monitoring and automated O&M, making management simple and efficient

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 15 satır

Boyutlar (G x D x Y)	442 mm x 450 mm x 88.1 mm (17.40 in. x 17.72 in. x 3.47 in.)
Kabin Yüksekliği	2 RU
Cihaz Ağırlığı	14.7 kg (32.41 lbs., a chassis with two power modules and three fan modules)
Anahtarlama Kapasitesi	12.8 Tbps
Paket İletim Hızı	4482 Mpps
Servis Portu	64 x 40G/100G QSFP28 ports
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	2 x power module slots; 3 x fan module slots
Güç Tüketimi	Maximum power consumption: 600 W; Typical power consumption: 410 W; Static power consumption: 222 W
Güç Girişi	RG-PA800I-F (AC input):; Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 10 A to 5 A (100 V AC to 240 V AC); Power port type: C14; RG-PA800I-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 310 V DC; Rated input current: 5 A
Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 2000 m (6561.68 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri 13 satır

Layer 2 Protocols	IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and selective QinQ), GVRP
Layer 3 Protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, Any-RP
IPv6 Basic Protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel
Data Center Features	PFC, ECN, and other data center features; M-LAG; RDMA
Visualization	gRPC; sFLOW sampling
QoS	Mapping of IEEE 802.1p, DSCP, and ToS priorities; ACL-based traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR
Sanallaştırma	Virtual Switching Unit
Buffer Management	Buffer status monitoring and management, and identification of burst traffic
HA Design	GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching and RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules
Security Features	Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, a
Yönetim Modu	SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, syslog, SPAN/RSPAN/ERSPAN, and configuration rollback
Other Protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Temel Özellikler 2 satır

Çalışma Sıcaklığı	0°C to 45°C (32°F to 113°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)

Genel bakış

Ruijie RG-S6520-64CQ kullanım alanları ve özellikleri.

Recommended for large-scale Spine-Leaf three-tier DCI scenarios, M-LAG/VSU/de-stacking for higher availability

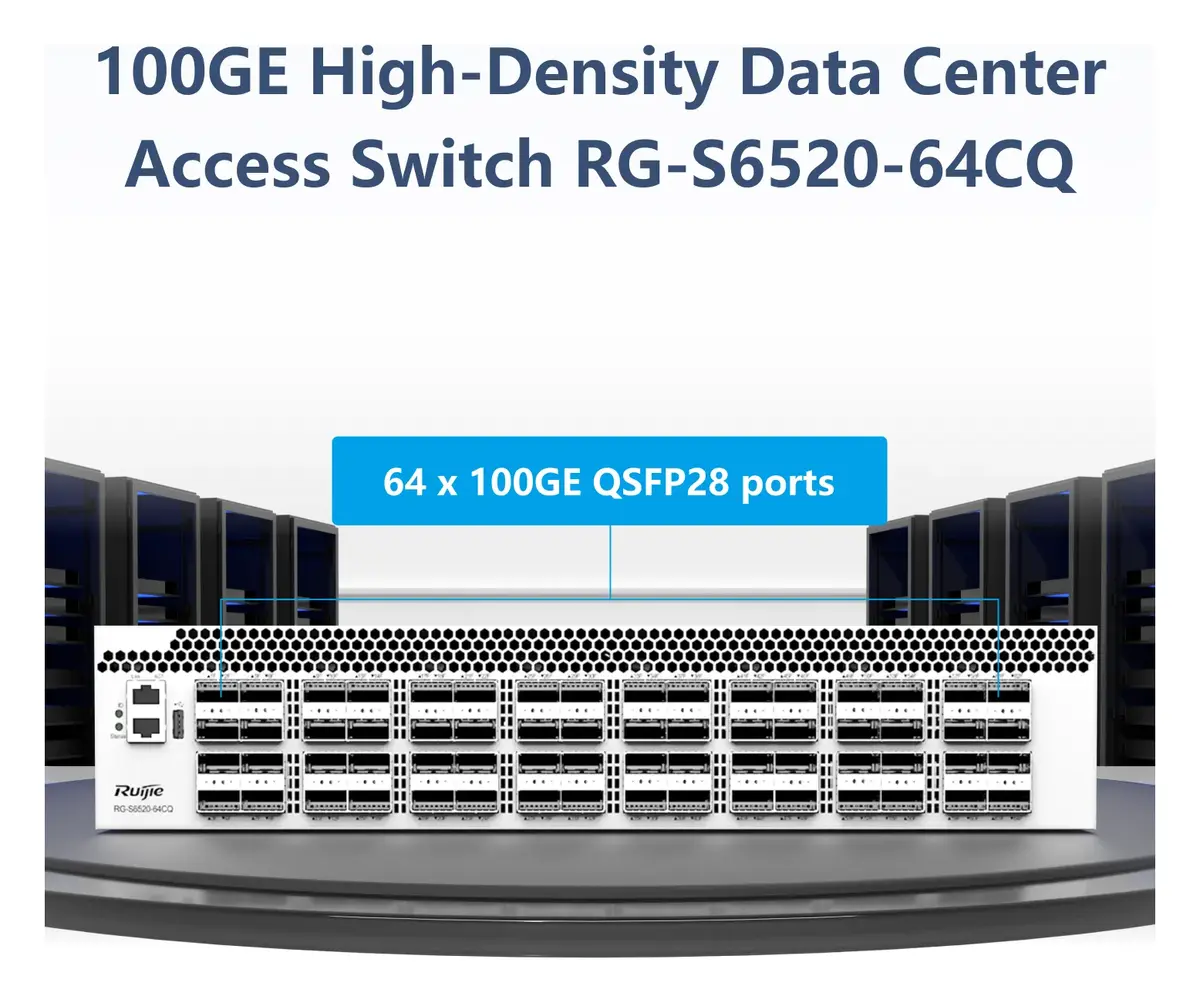

Data Center 100GE Access Switch RG-S6520-64CQ

100GE high-density access switch with 10GE/25GE/100GE downlink ports and 64 x 100GE uplink ports housed in a 2 RU enclosure for adaptation to different scenarios, Large buffer and advanced buffer scheduling mechanism, providing fast data processing and easily coping with burst traffic

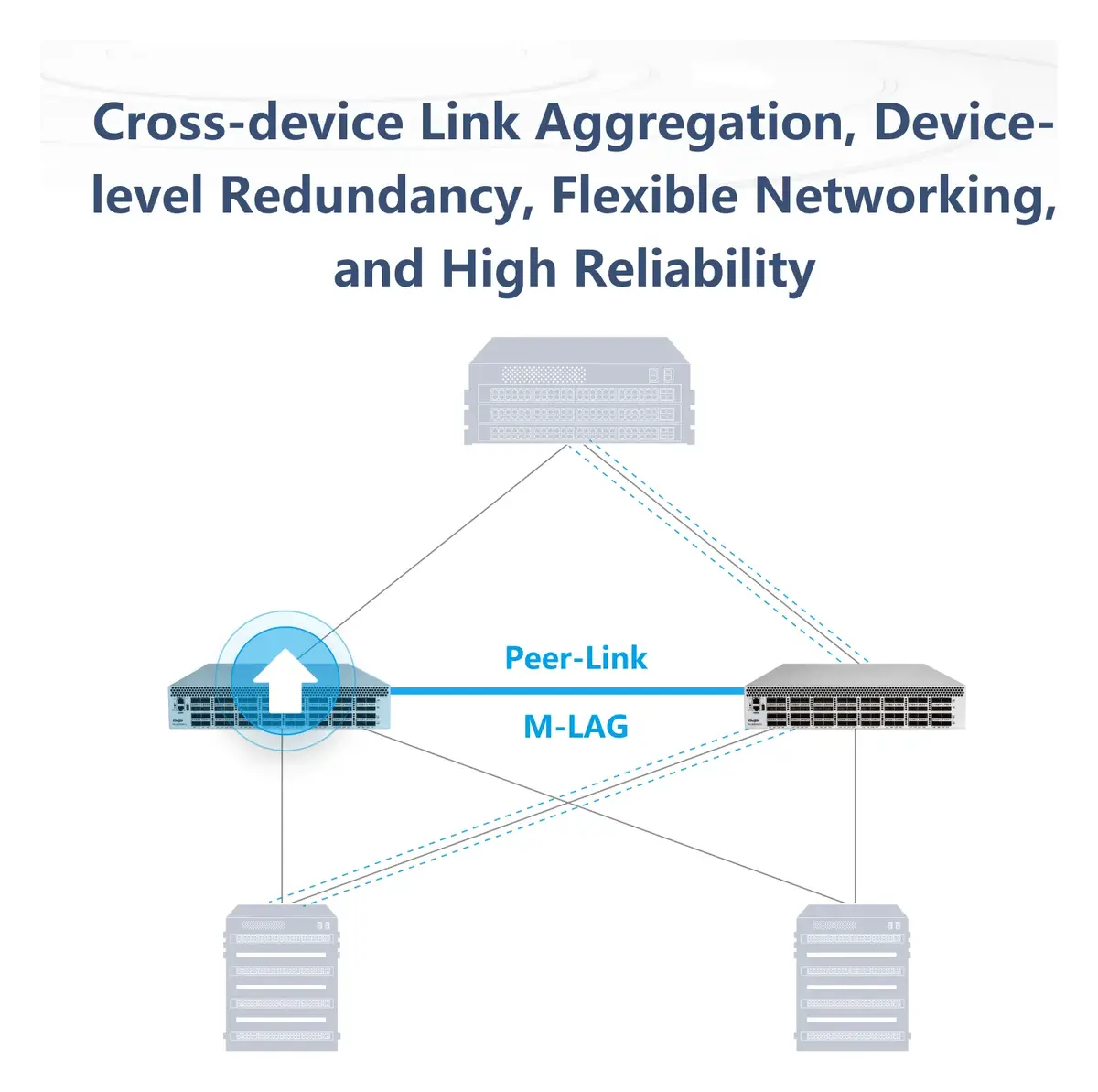

Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability

De-stacking

M-LAG

VSU

De-stacking technology logically aggregates multiple switches through LACP to allow servers on the same network segment or on different network segments to communicate. This eliminates the need to synchronize data between switches, without affecting service transmission.

M-LAG technology implements load sharing between links and improves link reliability. The independent control plane supports independent device upgrade, realizing service upgrade within seconds and consistent user experience.

VSU technology can virtualize multiple physical devices into one logical device, simplifying network configuration and architecture, eliminating loops, and improving reliability.

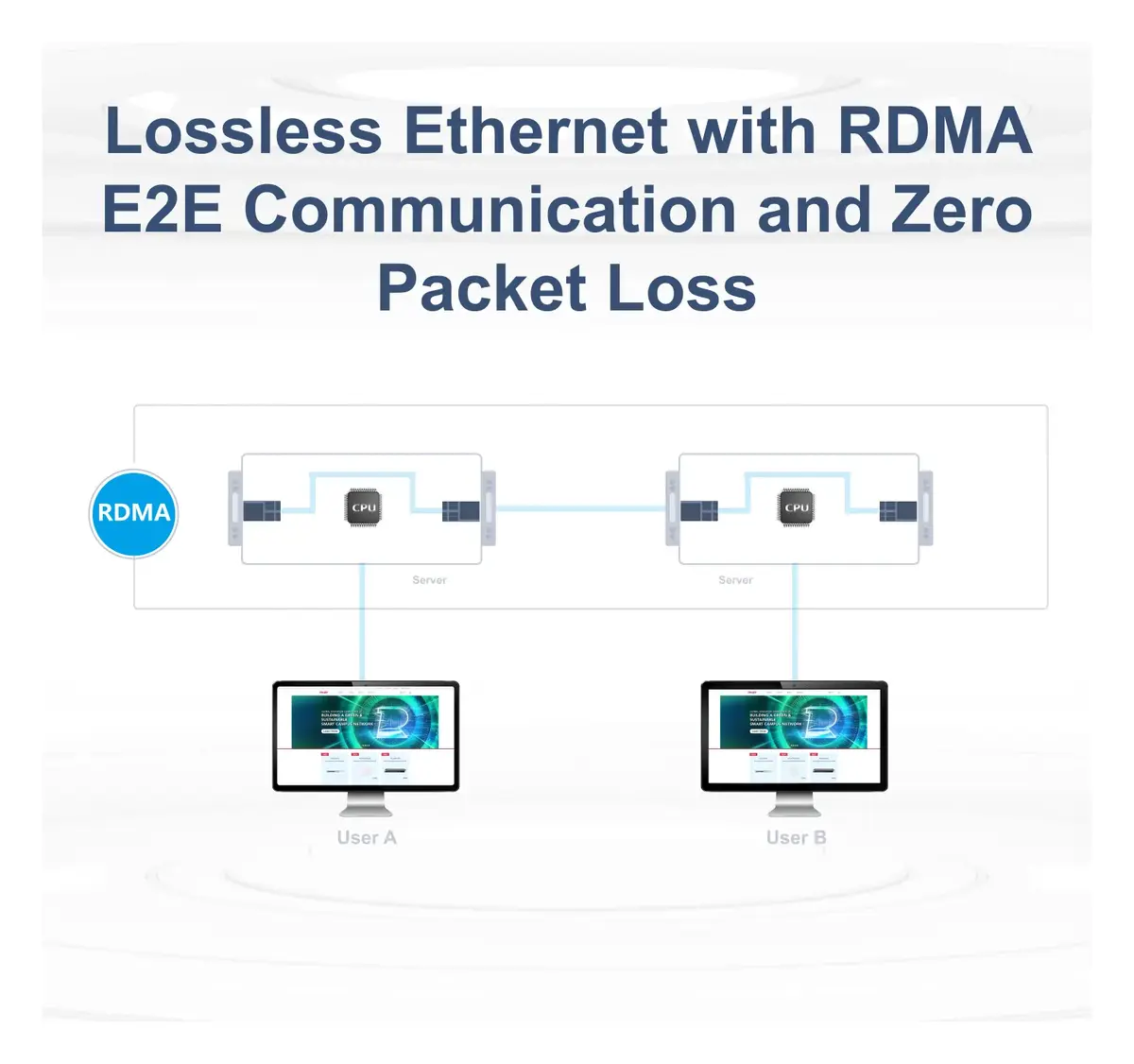

PFC- and ECN-based Lossless Ethernet with High Throughput and Low Latency in RDMA Scenarios

With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden and effectively solves the network latency problem. PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

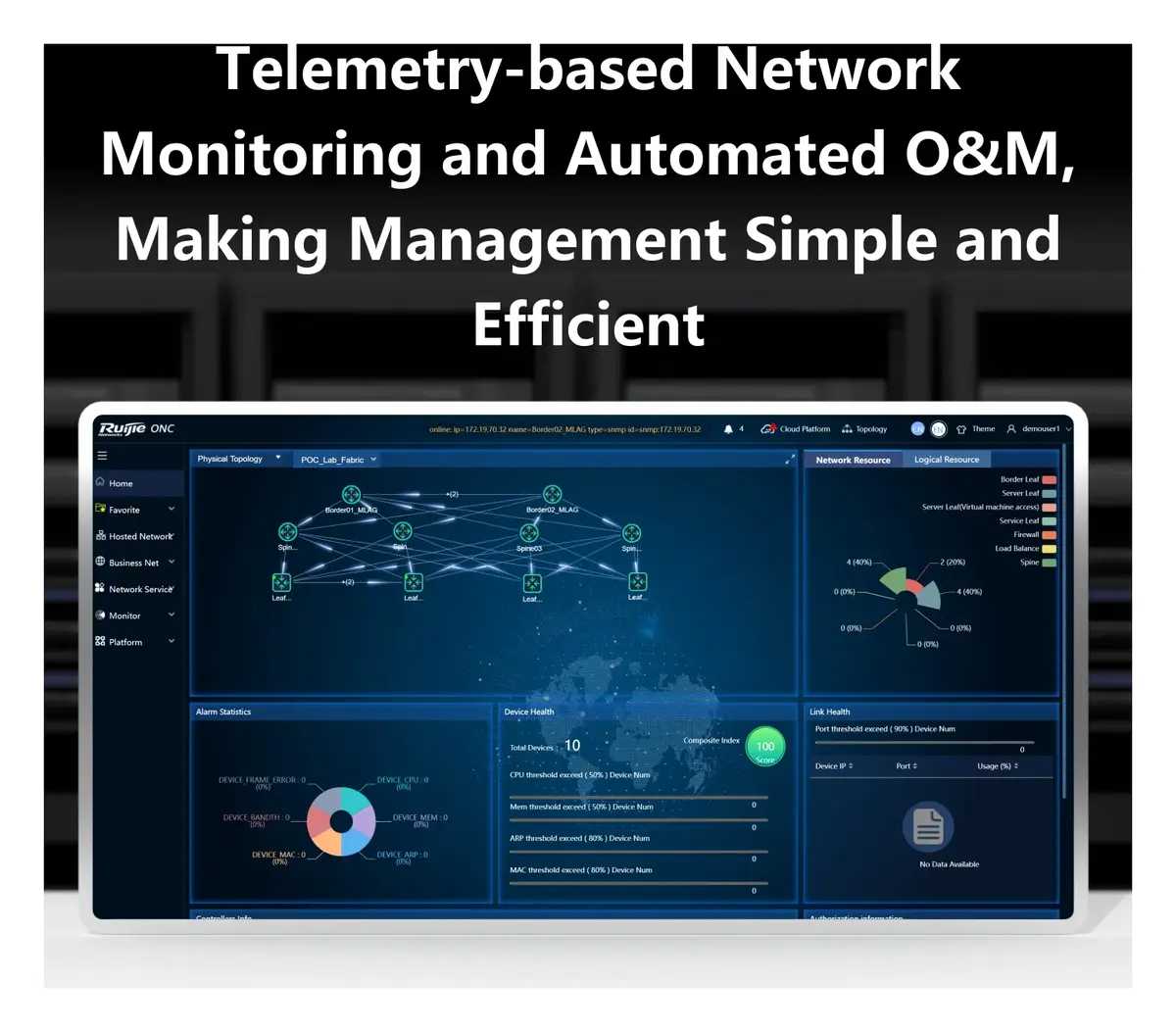

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient

The switch enabled with telemetry provides clear data status and hierarchy. The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-S6520-64CQ

Sık sorulanlar

RG-S6520-64CQ hakkında kısa yanıtlar.

RG-S6520-64CQ fiyatı ne kadar?

RG-S6520-64CQ için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
