RUIJIE · RG-S7620-20SFG2CQ Ruijie RG-S7620-20SFG2CQ 20 Port Gigabit 2×100G QSFP28 Omurga Switch

Ruijie RG-S7620-20SFG2CQ 20 Port Gigabit 2×100G QSFP28 Omurga Switch

ModelRG-S7620-20SFG2CQ

Ruijie RG-S7620-20SFG2CQ, 20 portlu gigabit bir yönetilebilir switch'tir. 60 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 20 port

Twenty SFG ports (equivalent to 160 SFP channels) and two 100GE uplink ports, backward compatible with 40GE, and allowing flexible configuration
Integrated traditional fixed switch and combiner functions and simplified management and deployment
VSU, delivering flexible networking capabilities and high performance
Multi-level hardware protection, ensuring continuous device operation and stable network connectivity
Combination with the UNC, offering simplified and efficient O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S7620-20SFG2CQ özellikleri ve kullanım alanları.

Designed for all-optical scenarios, this series adopts CWDM technology and integrates a combiner, reducing core port usage and simplifying deployment.

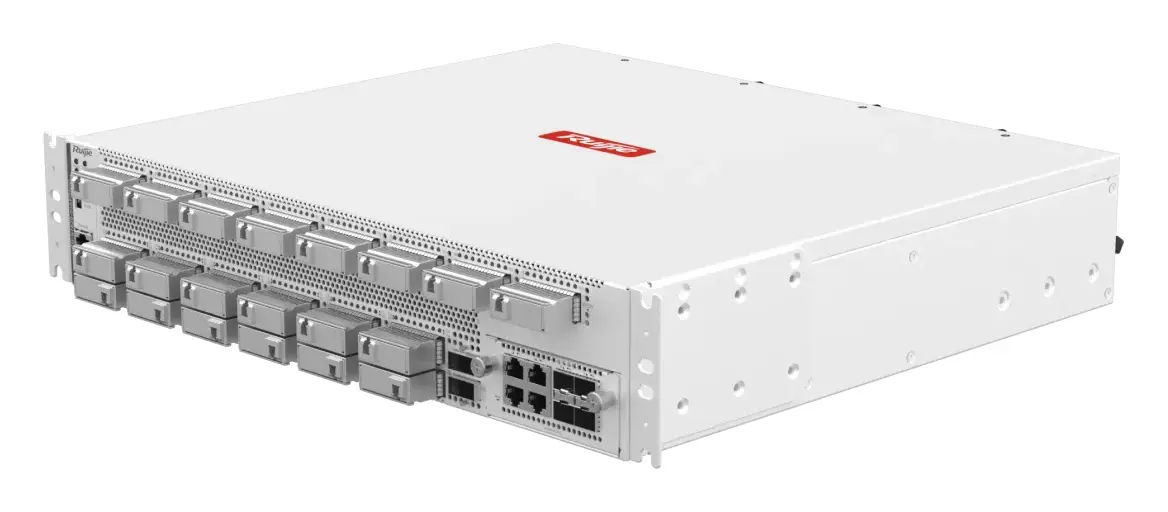

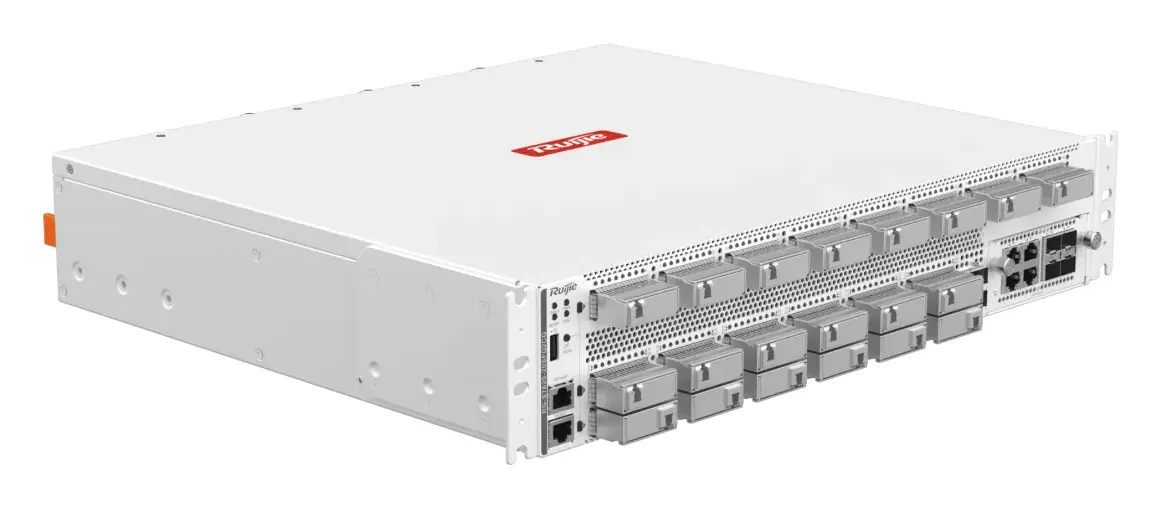

RG-S7620-20SFG2CQ Ultra High-Density CWDM Fixed Core Switch

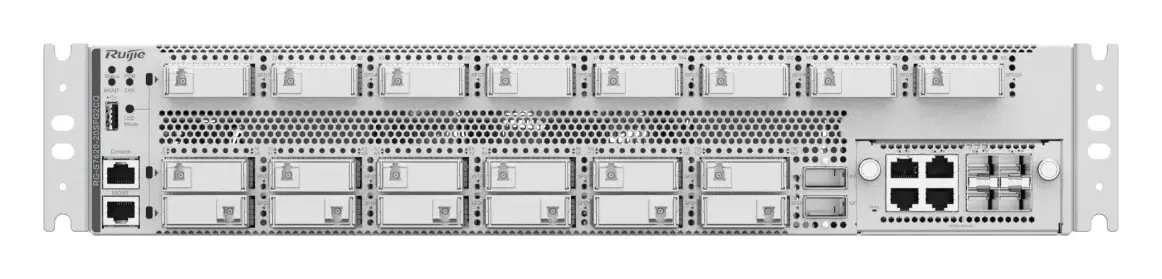

Twenty SFG hyper-converged ports are provided with each supporting up to eight SFP channels. This supports connections for up to 160 devices simultaneously. High-density connections can be established in this 2 U switch, and two 100GE QSFP28 uplinks and one expansion slot for connecting devices such as servers and regular switches are available to support diversified configurations.

Integrated Traditional Fixed Switch and Combiner Functions and Simplified Management and Deployment

CWDM technology integrated on Ethernet interfaces enables transparent transmission from the core side to the access side, reducing core-side port usage and simplifying the cabling process

VSU, Delivering Flexible Networking Capabilities and High Performance

VSU technology virtualizes multiple physical switches into one logical unit to realize unified management, simplifying O&M. Fast link failover within milliseconds ensures nonstop transmission of critical services.

Multi-level Hardware Protection, Ensuring Continuous Device Operation and Stable Network Connectivity

Hot-swappable Redundant Power

Hot-swappable Redundant Fan

Supply 1+1 power supply redundancy, allowing for second-level failover and providing extra protection for network links

2+1 fan redundancy, supporting intelligent speed adjustment for cooling

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri
Sabit Servis Portları	20 x SFG ports (160 x 1GE logical channels); 2 x 40GE/100GE QSFP28 ports; (supporting 4 x 10GE/4 x 25GE)
Module service port	M7600-4GT4VS:; 4 x 10/100/1000BASE-T ports; 4 x 1GE/10GE/25GE SFP28 ports; M7600-2CQ:; 2 x 40GE/100GE QSFP28 ports
Modül Yuvası	2 x power module slots; 3 x fan module slots; 1 x expansion module slot
Genişleme Modülü	M7600-2CQ; M7600-4GT4VS
Güç Modülü	RG-PA550I II-F
Fan Modülü	S7620-FAN I-F
Sabit Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB	1 x USB 2.0 port

Sistem Özellikleri
Packet forwarding rate ^*1^	833 Mpps
System switching capacity ^*2^	1.12 Tbps
İşlemci (CPU)	Quad-core CPU, each core with the clock speed of 2.0 GHz
BootROM	16 MB
Flash Bellek	8 GB
Bellek	4 GB DDR4
Switch Tampon Belleği	36 MB

Güç Kaynağı ve Tüketim
Güç Kaynağı	2 x pluggable power modules
Güç Girişi	RG-PA550I II-F (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 3.5 A to 7.2 A; Maximum input current: 7.2 A
Maks. Çıkış Gücü	RG-PA550I II-F: 550 W
Module power consumption	450 W

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	442 mm x 388 mm x 88 mm (17.40 in. x 15.28 in. x 3.46 in.)
Kutu Boyutları (G x D x Y)	590 mm x 543 mm x 259 mm (23.23 in. x 21.38 in. x 10.20 in.)
Kabin Yüksekliği	2 RU
Cihaz Ağırlığı	11.02 kg (24.29 lbs, with 3 fan modules)
Kutulu Ağırlık	14.4 kg (31.75 lbs)

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: --40°C to +70°C (--40°F to +158°F); Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.)
MTBF	360,474 hours (about 41 years)
Fan	3 x pluggable fan modules (pre-installed)
Isı Dağılımı	Front-to-back airflow
Gürültü Seviyesi	27°C (80.6°F): 56 dB; 45°C (113°F): 72 dB
Güç Modülü Yedekliliği	1+1 redundancy
Fan Yedekliliği	2+1 redundancy, and at least two fan modules required
Module hot swapping	Destekleniyor
Güç Modülü Sıcak Takas	Destekleniyor
Fan Modülü Sıcak Takas	Destekleniyor
Cable hot swapping	Destekleniyor
Güç Kaynağı İzleme	Monitoring of the power supply model and status; Power supply failure alarming
Fan İzleme	Fan speed adjustment: 256 levels (Only automatic adjustment is supported.); Fan failure alarm
Sıcaklık İzleme	Temperature alarm and over-temperature protection
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Power port: 6 kV

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1: 2018; EN 62368-1: 2014+A11:2017
EMC Standardı	EN 55032:2015+A1:2020; EN 61000-3-2013+A1:2019+A2:2021; EN IEC 61000-3-2:2019+A1:2021; EN 55035:2017+A11:2020; EN 300386 V2.2.1
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Yazılım Özellikleri
Maks. VSU Üye Sayısı	4
VSU bandwidth	400 Gbps
Maximum number of SVIs	4,094
Maks. MAC Adres Kaydı	128,000
Maks. ARP Kaydı	96,000
Maximum number of ND entries	80,000
Maks. IPv4 Unicast Rota	350,000 (shared with IPv6 routes)
Maks. IPv6 Unicast Rota	65,000
Maximum number of IPv4 multicast routes	4,000
Maximum number of IPv6 multicast routes	2,000
Maximum number of IGMP groups	4,000
Maximum number of MLD groups	2,000
Maximum number of VRF instances	1,024
Maximum number of ACEs	In: 28,000, Out: 4,000
Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); Maximum number of VLANs that can be created: 4,094; Voice VLAN; Super-VLAN and private VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
IP Servisleri	Static ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping; GRE tunnel
IP Yönlendirme	IPv4/IPv6 static routing; RIP and RIPng; OSPFv2 and OSPFv3; Graceful restart (GR); IPv4 IS-IS; IPv6 IS-IS; BGP4 and BGP4+; IPv4/IPv6 VRF; IPv4/IPv6 PBR
Multicast	IGMPv1/v2/v3; IGMPv1/v2/v3 snooping; IGMP fast leave; PIM-SM; PIM-DM; PIM-SSM for IPv4 and IPv6; MSDP to achieve inter-domain multicast; MLDv1 and MLDv2; MLD snooping; PIM-SMv6; Multicast source IP address check; Multicast source port check; Multicast querier
MPLS	6PE/6VPE model interconnection with the IPv4/IPv6 MPLS backbone network; MPLS MIB (RFC 1273, RFC 4265, and RFC 4382) (MPLS MIB, MPLS L3VPN STD MIB, MPLS LSR STD MIB, and MPLS VPN MIB)
ACL ve QoS	Standard IP ACLs (hardware ACLs based on IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on the source and destination IP addresses and ports, and protocol type); IPv6 ACL; ACL 80; ACL redirection; Port-based rate limiting; Traffic classification based on 802.1p priorities, DSCP priorities, an
Güvenlik	Multiple AAA modes; RADIUS authentication and authorization; TACACS+; IEEE 802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1 and SSHv2; Global IP-MAC binding; Port security; IP source guard; SAVI; ARP spoofing prevention; CPP and NFPP; Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense
Güvenilirlik	REUP; Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; Data Link Detection Protocol (DLDP); IPv4 VRRP v2/v3 and IPv6 VRRP v3; BFD; Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM); Hot swapping of power modules and fan modules
Cihaz Sanallaştırma	VSU
Ağ Yönetimi ve Bakım	RSPAN and ERSPAN; sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios); NTP and SNTP; FTP and S TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups; NETCONF; CWMP; gRPC; OpenFlow Special 1.0/1.3; Flow table analysis defined by all protocols; Transmission of specified p
VXLAN	EVPN VXLAN tunnel establishment; VLAN access to VXLAN; IPv4 over IPv4; Distributed gateway; IPv6 over IPv4; Using an SVI to connect to the VXLAN network; Using a routed interface to connect to the VXLAN network; Proxy ARP (replying with the actual MAC address)); ND proxy (replying with the actual MAC address); ND reply (replying with the actual MAC address); VXLAN EVPN; VXLAN static route; Anycast gateway; VXLAN bridging mode; VXLAN routing mode; Proxy ARP (replying with the gateway MAC address)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-S7620-20SFG2CQ hakkında kısa yanıtlar.

RG-S7620-20SFG2CQ kaç portlu?

RG-S7620-20SFG2CQ 20 porta sahiptir ve 60 adet SFP uplink portu bulunur.

RG-S7620-20SFG2CQ fiyatı ne kadar?

RG-S7620-20SFG2CQ için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
