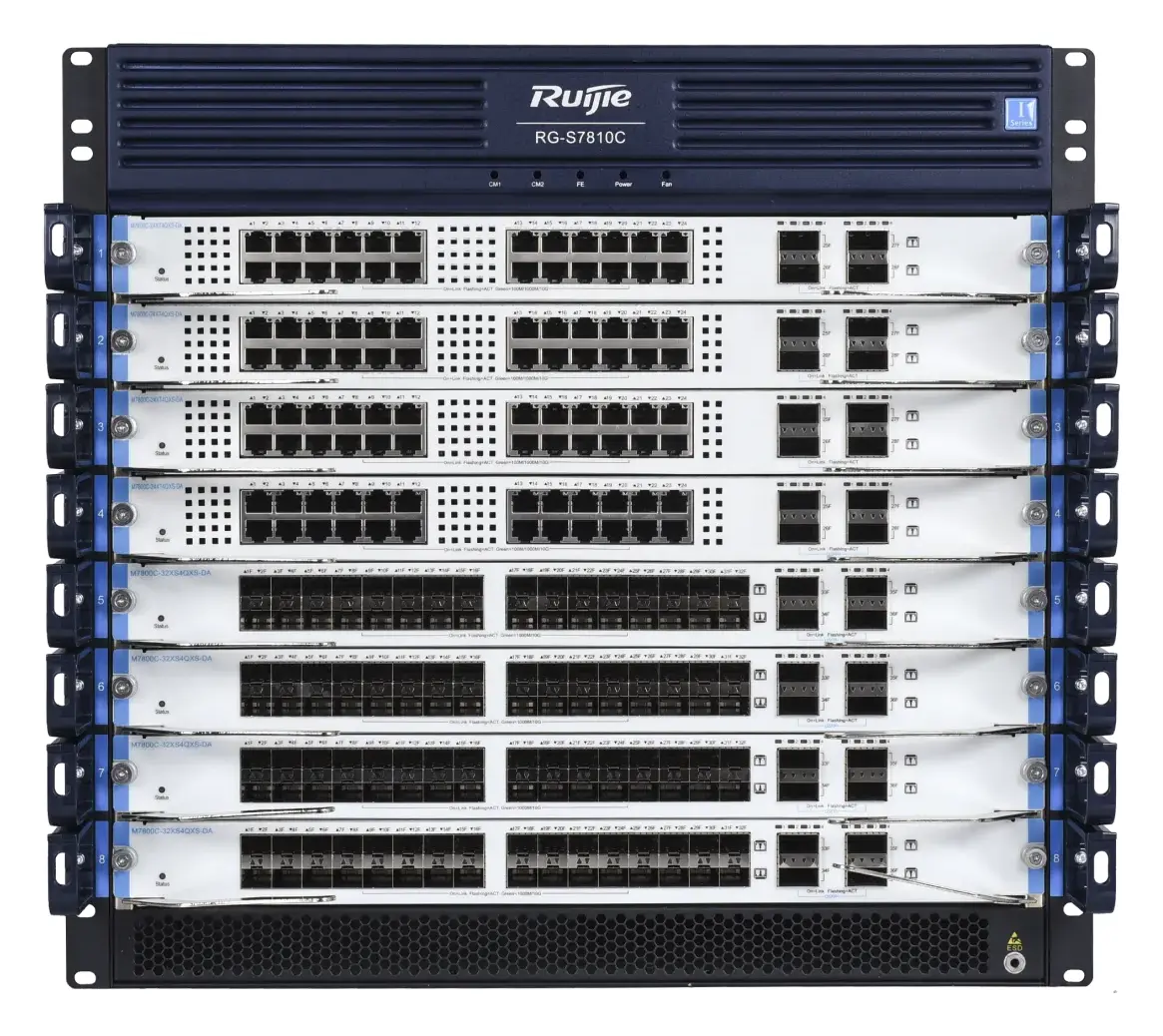

RUIJIE · RG-S7810C Ruijie RG-S7810C 8 Slot Modüler Omurga Switch

Ruijie RG-S7810C 8 Slot Modüler Omurga Switch

Q: RG-S7810C fiyatı ne kadar?

RG-S7810C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRG-S7810C

Ruijie RG-S7810C gigabit bir yönetilebilir switch'tir. 24 adet SFP portu ile fiber uplink bağlantısı kurulabilir.

Port hızı: Gigabit
PoE: PoE yok

Orthogonal Clos architecture, providing a backplane-free design and ensuring non-blocking packet forwarding and high-speed transmission without packet loss
Security defense policies, ensuring network robustness
VSU, delivering flexible networking capabilities and high performance
Hardware-level multi-protection, delivering carrier-grade reliability
Combination with the UNC, offering simplified and efficient O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S7810C özellikleri ve kullanım alanları.

Can be deployed in data centers, metropolis area networks, campus networks, or integrated scenarios of data centers and campus networks.

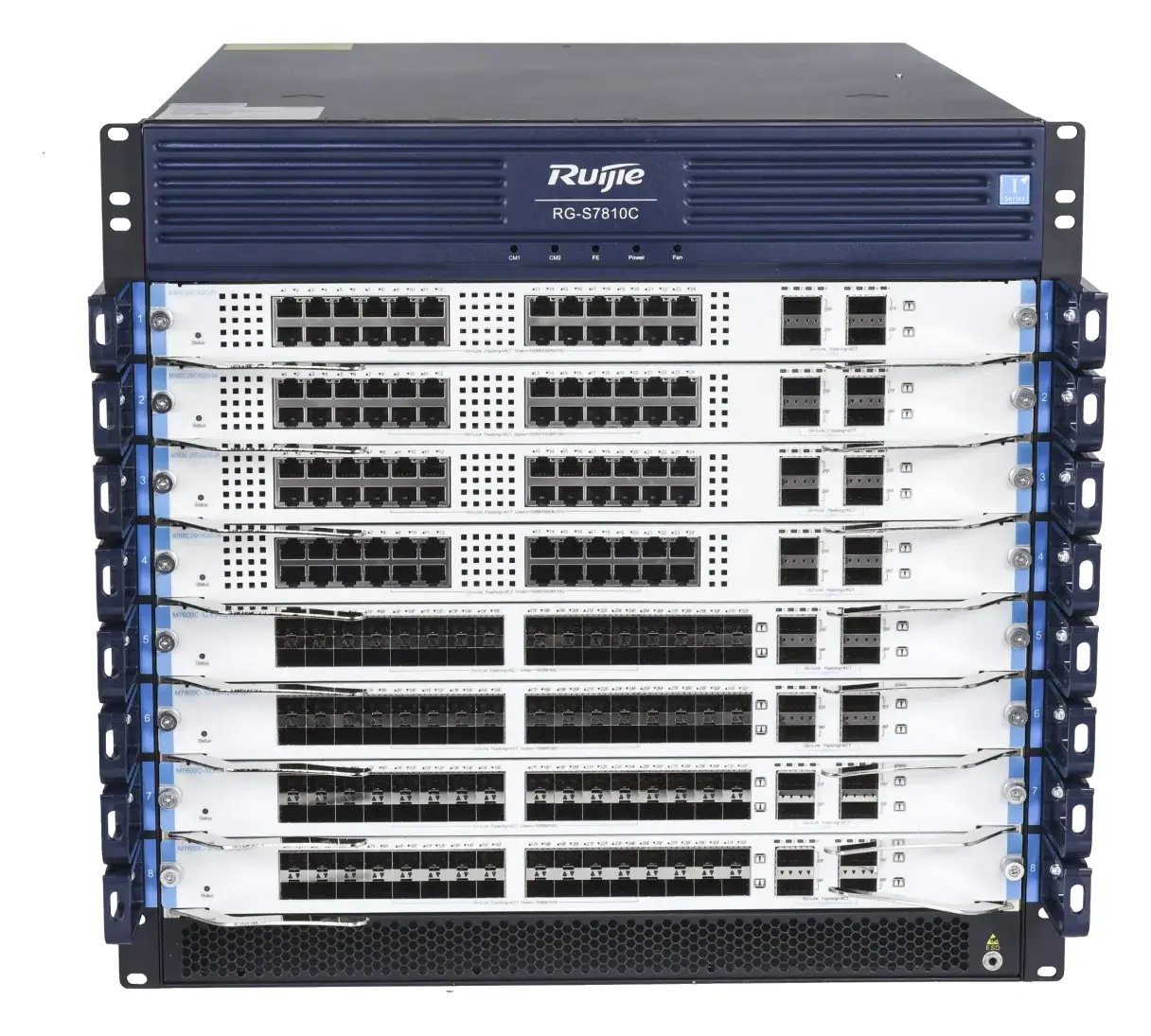

Modular Core Switch RG-S7810C

Compact chassis design with a height of 10 RU improves cabinet space utilization. Eight line card slots support a wide range of cards that provide various port types, including 1GE, 10GE, and 40GE ports, catering to the diverse needs of small, medium, and large-scale campus deployments.

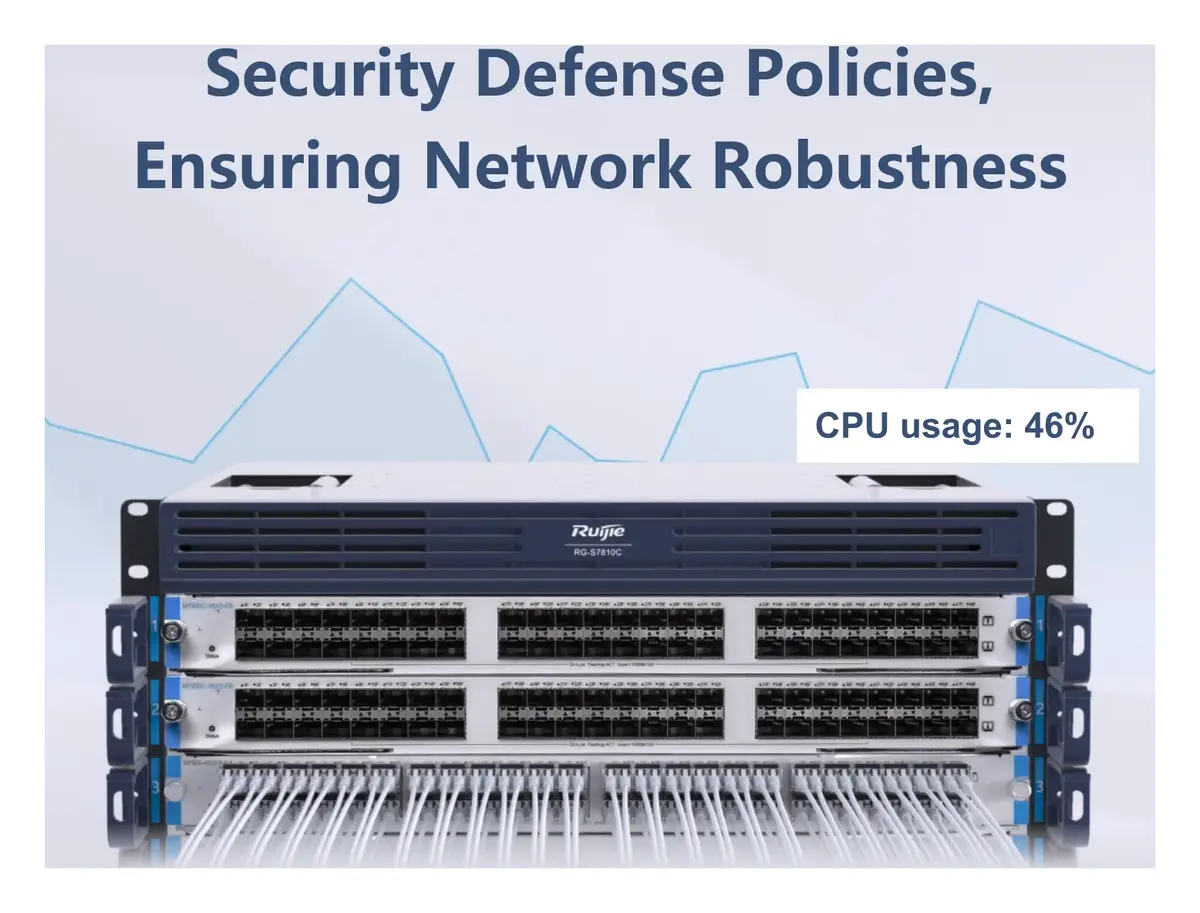

Security Defense Policies, Ensuring Network Robustness

CPP

NFPP

CPU Protection Policy (CPP) controls the types and traffic of packets sent to the CPU, preventing CPU usage exceptions.

Network Foundation Protection Policy (NFPP) enables automatic defense against attacks such as ARP attacks and isolates users launching attacks, safeguarding networks.

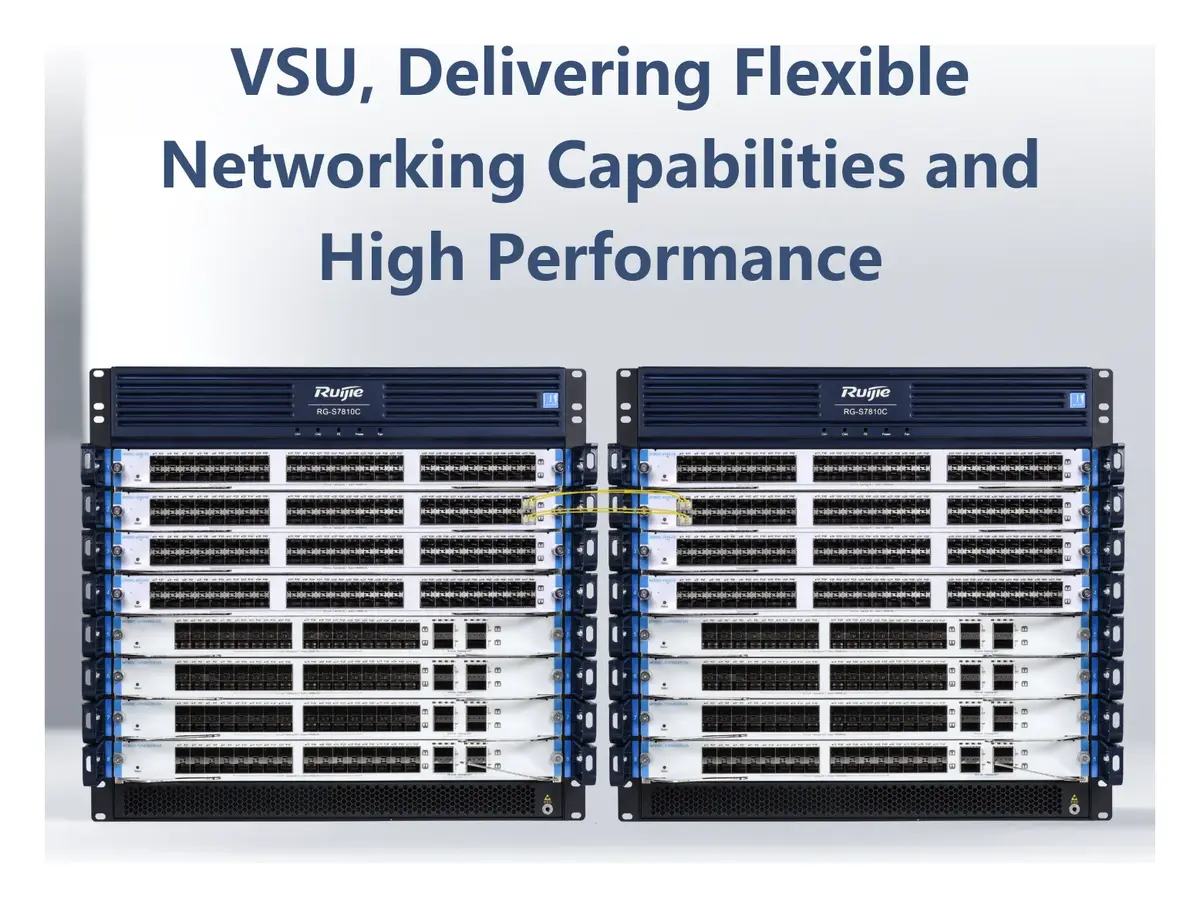

VSU, Delivering Flexible Networking Capabilities and High Performance

VSU technology virtualizes multiple physical switches into one logical unit with a single IP address to realize unified management, simplifying O&M. Fast link failover within 50 to 200 milliseconds ensures nonstop transmission of critical services.

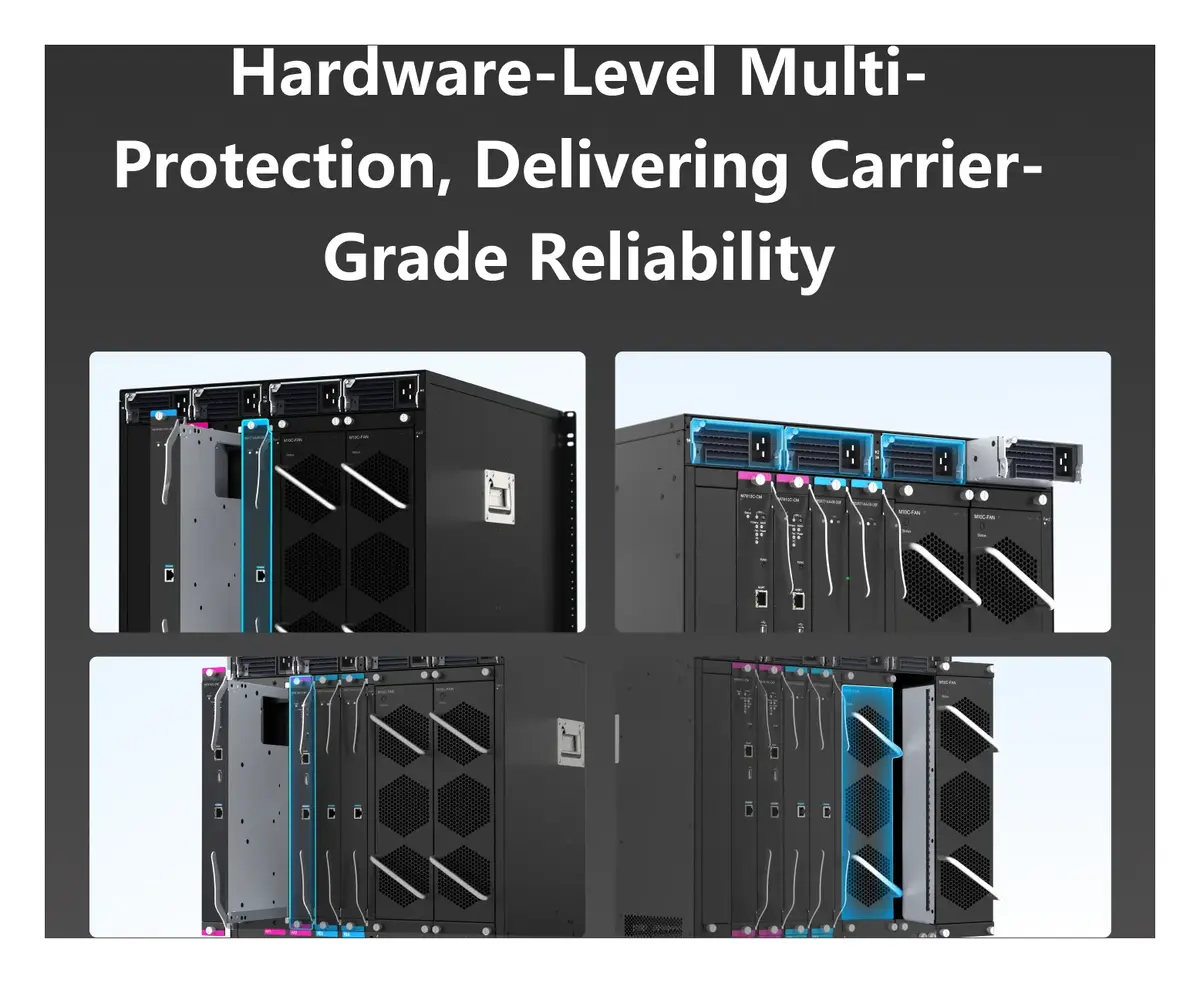

Hardware-Level Multi-Protection, Delivering Carrier-Grade Reliability

1+1 Switch Fabric Module Redundancy

Two switch fabric modules are supported to realize load balancing and redundancy across planes, which ensures uninterrupted service data transmission.

Two flash chips for storing boot software achieve hardware-level boot redundancy, avoiding switch boot failures due to a flash chip fault.

1+1 Supervisor module Redundancy

1+1 hot standby ensures nonstop switch services.

N+M Power Supply Redundancy

Four hot-swappable power supplies realize failover within seconds and service continuity during power replacement, ensuring link reliability.

1+1 Fan Module Redundancy

Two axial flow fans for factory delivery support 256-level speed regulation and precise temperature control, reducing energy consumption and noise.

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Hardware Specifications (with -CM Series Supervisor Module)
Modül Yuvası	2 x supervisor module slots; 8 x line card slots (slot 7 does not support the EB line card); 2 x switch fabric module slots; 4 x power module slots; 2 x fan module slots
Supervisor module	M7810C-CM; M7810C-CM-F
Switch fabric module	M7810C-FE-D I (must be used with M7810C-CM); M7810C-FE-F I (must be used with M7810C-CM-F); M7810C-CM, M7810C-CM-F (switch fabric module integrated with supervisor module)
line card	M7810C-CM supports the following 5 modules:; M7800C-32XS4QXS-DA; M7800C-24GT24SFP4XS-EB; M7800C-24SFP/12GT4XS-EB; M7800C-48GT4XS-EB; M7800C-48SFP4XS-EB; M7810C-CM-F supports the following 4 modules:; M7800C-48GT-FA; M7800C-48SFP-FA; M7800C-48XS-FB; M7800C-8CQ-FB; 1
Güç Modülü	RG-PA600I; RG-PA1600I
Fan Modülü	M10C-FAN (pre-installed 2)
Module management port	M7810C-CM:; 1 x RJ45 console port; 1 x RJ45 MGMT port; M7810C-CM-F:; 1 x RJ45 console port 2; 1 x mini USB console port 2
USB	M7810C-CM: 1 x USB 2.0 port; M7810C-CM-F: 1 x USB 2.0 port; (no capacity limit, 2G/4G/8G/16G/32G capacity tested)

*1 Note: FA/FB series cannot be used with EB series or DA series.
Sistem Paket İletim Hızı	12000 Mpps
Sistem Anahtarlama Kapasitesi	16000 Gbps
İşlemci (CPU)	Supervisor module:; M7810C-CM, M7810C-CM-F: quad-core CPU, each core with the clock speed of 1.5 GHz; Line card; EB card: quad-core CPU, each core with the clock speed of 1.0 GHz; DA/FA/FB card: quad-core CPU, each core with the clock speed of 1.5 GHz; Switch fabric module; M7810C-FE-D I, M7810C-FE-F I: quad-core CPU, each core with the clock speed of 1.5 GHz
Gerçek Zamanlı Saat (RTC)	M7810C-CM/M7810C-CM-F: supported
BootROM	M7810C-CM/M7810C-CM-F: 16 MB; EB card: 8 MB; DA/FA/FB card: 16 MB; M7810C-FE-D I/M7810C-FE-F I: 16 MB
Flash Bellek	M7810C-CM/M7810C-CM-F: 8 GB; EB card: 512 MB; DA/FA/FB card: 8 GB; M7810C-FE-D I/M7810C-FE-F I: 8 GB
Bellek	M7810C-CM/M7810C-CM-F: 4 GB DDR4; EB card: 1 GB DDR3; DA card: 1 GB DDR4; FA/FB card: 2 GB DDR4; M7810C-FE-D I: 1 GB DDR4; M7810C-FE-F I: 2 GB DDR4
Switch Tampon Belleği	EB: 4 MB; FB: 32 MB; FA: 8 MB; DA: 16 MB

*4 means the system's switching capacity.
Güç Kaynağı	4 x pluggable power modules
Güç Girişi	RG-PA600I (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 8 A; RG-PA1600I (AC input):; Rated input voltage: 100 V AC to 240 V AC; 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz; Maximum input current: 16 A
Maks. Çıkış Gücü	RG-PA600I: 600 W; RG-PA1600I:; 100 V AC to 176 V AC: 1200 W; 176 V AC to 240 V AC: 1600 W
Module power consumption	M10C-FAN: < 216 W; M7810C-CM: < 50 W; M7810C-CM-F: < 110 W; M7800C-32XS4QXS-DA: < 210 W; M7800C-24GT24SFP4XS-EB: < 88 W; M7800C-24SFP/12GT4XS-EB: < 85 W; M7800C-48GT4XS-EB: < 70 W; M7800C-48SFP4XS-EB: < 101 W; M7800C-48GT-FA: < 75 W; M7800C-48SFP-FA: < 95 W; M7800C-48XS-FB: < 160 W; M7800C-8CQ-FB: < 130 W

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	442.5 mm x 560.0 mm x 442.0 mm (17.42 in. x 22.05 in. x 17.40 in.)
Kutu Boyutları (G x D x Y)	845.0 mm x 685.0 mm x 770.0 mm (33.27 in. x 26.97 in. x 30.31 in.)
Kabin Yüksekliği	10 RU
Cihaz Ağırlığı	43.60 kg (96.01 lbs, empty chassis with 2 fan modules)
Kutulu Ağırlık	68.30 kg (150.58 lbs)

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF	342,000 hours (about 39 years)
Fan	2 x pluggable fan modules (pre-installed)
Isı Dağılımı	Supervisor module: front-to-rear airflow; Line card: side-to-rear airflow; FE card: front-to-rear airflow
Gürültü Seviyesi	27°C (80.6°F): 70 dB; Max Noise: 77 dB
Supervisor module redundancy	1+1 redundancy (same model)
Güç Modülü Yedekliliği	N+M redundancy (same model)
Fan Yedekliliği	1+1 redundancy
Module hot swapping	Destekleniyor
Güç Modülü Sıcak Takas	Destekleniyor
Fan Modülü Sıcak Takas	Destekleniyor
Cable hot swapping	All ports on line cards support hot swapping of cables.; The switch-mode power supply supports hot swapping of power cords.
Güç Kaynağı İzleme	Monitoring of the model, temperature, power, and voltage of the power supply module; Power supply failure alarming; Control of line card power-on based on the power supply status
Fan İzleme	Fan speed adjustment: 256 levels; Fan failure alarming
Sıcaklık İzleme	Over-temperature alarming
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 4 kV; Power port: 6 kV

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Genel
Sabit Servis Portları	2 x PoE out ports
Modül Yuvası	2 x power module slots
Güç Modülü	RG-PA1600I-PL
Güç Kaynağı	2 x pluggable power modules
Güç Girişi	RG-PA1600I-PL (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC; 47 Hz to 63 Hz; Maximum input current: 16 A
Maks. Çıkış Gücü	RG-PA1600I-PL; 100 V AC to 176 V AC: 1200 W; 176 V AC to 240 V AC: 1600 W
PoE Çıkış Gücü	Each PoE out port provides up to 1,440 W of power
Cihaz Boyutları (G x D x Y)	400.0 mm x 420.0 mm x 44.7 mm (15.75 in. x 16.54 in. x 1.76 in.)
Cihaz Ağırlığı	5.0 kg (11.02 lbs)
Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
MTBF	4,289,000 hours (about 489 years)
Güç Modülü Yedekliliği	1+1 redundancy (same model)

Performans ve Kapasite
Maks. VSU Üye Sayısı	2
VSU bandwidth	S7805C: 2,400 Gbps; S7808C: 3,200 Gbps; S7810C: 3,200 Gbps
Maximum number of SVIs	4,094
Maks. MAC Adres Kaydı	EB card: 64,000; DA card: 96,000 (default) and 288,000 (max.); FA card: 80,000; FB card: 96,000
Maks. ARP Kaydı	EB card: 10,000; DA card: underlay: 75,000; overlay: 0; FA card: underlay: 30,000; overlay: 0; FB card: underlay: 50,000; overlay: 0
Maximum number of ND entries	EB card: 10,000; DA card: 45,000; FA card: 16,000; FB card: 32,000
Maks. IPv4 Unicast Rota	EB card: 12,000 (shared with IPv6 routes); DA card: 12,000 (shared with IPv6 routes); FA card: 12,000 (shared with IPv6 routes); FB card: 134,000 (shared with IPv6 routes)
Maks. IPv6 Unicast Rota	EB card: 6,000 (shared with IPv4 routes); DA card: 6,000 (shared with IPv4 routes); FA card: 6,000 (shared with IPv4 routes); FB card: 50,000 (shared with IPv4 routes)
Maximum number of IPv4 multicast routes	EB card: 8,000; DA card: 16,000; FA card: 8,000; FB card: 16,000
Maximum number of IPv6 multicast routes	EB card: 4,000; DA card: 8,000; FA card: 4,000; FB card: 8,000
Maximum number of IGMP groups	4,000
Maximum number of MLD groups	4,000
Maximum number of VRF instances	EB card: 1,000; DA card: 1,000; FA card: 2,000; FB card: 2,000
Maximum number of ACEs	EB card; In: 3,500 Out: 1,000; DA card; In: 8,000 Out: 1,000; FA card; In: 5,000 Out: 1,000; FB card; In: 4,500 Out: 2,000

Fonksiyonlar
Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); 802.3az EEE; Maximum number of VLANs that can be created: 4,094; Voice VLAN; Super-VLAN and private VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
IP Servisleri	Static and dynamic ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DNS; DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping; Manual tunnel, automatic tunnel, and ISATAP tunnel for IPv6; GRE tunnel
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2 and OSPFv3; GR; IPv4/IPv6 IS-IS; BGP4 and BGP4+; EVPN; IPv4/IPv6 VRF; Policy-based routing (PBR); IPv4 and IPv6 ECMP
Multicast	IGMP v1/v2/v3; IGMP snooping v1/v2/v3; IGMP proxy; IGMP fast leave; PIM-DM, PIM-SM, and PIM-SSM; PIM-SSM for IPv4 and IPv6; MSDP to achieve inter-domain multicast; MLDv1 and MLDv2; Multicast static routing; MLD v1/v2 snooping; PIM-SMv6; Multicast source IP address check; Multicast source port check
MPLS	MPLS IPv6; MPLS L3VPN; MPLS 6VPE; MPLS MIB (RFC 1273, RFC 4265, and RFC 4382)
ACL ve QoS	Standard IP ACLs (hardware ACLs based on IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range); ACL80 and IPv6 ACL; Applying ACLs globally (hardware ACLs based on flex
Güvenlik	AAA; RADIUS authorization and accounting; TACACS+; Portal authentication, RADIUS, and TACACS+ login authentication; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1 and SSHv2; Global IP-MAC binding; ICMP; Port security; IP source guard; DAI; SAVI; ARP spoofing prevention; CPU Protect Policy (CPP) and NFPP; Various attack defense functions, incl
Güvenilirlik	Rapid Ethernet Uplink Protection (REUP); Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; Data Link Detection Protocol (DLDP); IPv4 VRRP v2/v3 and IPv6 VRRP; VRRP for the super-VLAN; BFD; RG-S7805C, RG-S7808C , RG-S7810C: 1+1 redundancy for supervisor modules; RG-S7805C: 1+1 redundancy for power supply; RG-S7808C , RG-S7810C: N+M redundancy for power supply; RG-S7805C: fan redundancy is not supported; RG-S7808C
Cihaz Sanallaştırma	VSU
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFlow; NTP; SNTP; FTP, TFTP, and Xmodem; SNMP v1/v2c/v3; RMON (1, 2, 3, 9); NETCONF; CWMP; gRPC; OpenFlow Special 1.3; Flow table analysis defined by all protocols; Transmission of specified packets to the controller; Configuring the controller's IP address and port; Notifying port status changes to the controller; Web-based NMS; Console/Telnet/SSH2.0 CLI configuration; Fault alarms and auto-recovery; System operation logging
VXLAN	Layer 2 and Layer 3 VXLAN gateways

Software Specifications (with -X Series Supervisor Module)
Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); 802.3az EEE; Maximum number of VLANs that can be created: 4,094; Voice VLAN; GVRP; IP subnet-based VLAN; MAC VLAN; Port-based VLAN; Private VLAN; protocol-based VLAN; Super-VLAN; Basic QinQ and selective QinQ; STP (IEEE 802.1.d); RSTP (IEEE 802.1w); MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
Cihaz Sanallaştırma	VSU
SDN	OpenFlow 1.3; NETCONF
IP Servisleri	Static and dynamic ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DNS; DHCPv6 client; DHCPv6 relay; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping; FTP Server; FTP Client; NTP server; NTP Client; SNTP Client; TFTP Client; TFTP Server
IP Yönlendirme	Static routing; BGP4; BGP4+; IS-ISv4; IS-ISv6; OSPFv2; OSPFv3; RIP; RIPng; GR; Routing Policy; ECMP; IPv4/IPv6 VRF; Policy-based routing (PBR)
Multicast	IGMP v1/v2/v3; IGMP snooping v1/v2; IGMP proxy; IGMP fast leave; PIM-DM; PIM-SM; PIM-SSM for IPv4 and IPv6; MSDP to achieve inter-domain multicast; MLDv1 and MLDv2; Multicast static routing; MLD v1/v2 snooping; PIM-SMv6; Multicast source IP address check; Multicast source port check
MPLS	MPLS L3VPN; MPLS 6VPE; MPLS IPv6; MPLS forwarding; LDP; LSP
VXLAN	VXLAN Layer 2 bridge; VXLAN Layer 3 gateway; EVPN VXLAN
ACL ve QoS	Standard IP ACL; extended IP ACL; extended MAC ACL; Layer 2 and Layer 3 port ACL; VLAN ACL; Expert-level ACL; ACL 80; IPv6 ACL; Applying ACLs globally; ACL COUNTER; ACL LOGGING; ACL REMARK; 802.1P; SP; WRR; SP+WFR; other queue scheduling mechanisms; RED/WRED; Rate limiting based on the inbound or outbound interface; MPLS QOS
Güvenilirlik	RG-S7805C, RG-S7808C , RG-S7810C-X: 1+1 redundancy for supervisor modules; RG-S7805C: 1+1 redundancy for power supply; RG-S7808C , RG-S7810C-X: N+M redundancy for power supply; RG-S7805C: fan redundancy is not supported; RG-S7808C , RG-S7810C-X: 1+1 fan redundancy; Hot swapping of all components; Hot patching function for online patch upgrade; GR; BFD; VRRP; VRRP+; Faulty optical port isolation; Dual physical chips for boot systems
Güvenlik	NFPP; CPP; DAI; port security; IP source guard; 802.1X authentication; MAC address-based authentication; Portal authentication; RADIUS; TACACS+ login authentication; uRPF; SSHv2; IPv6 SAVI; Login authentication and password security; providing encrypted security channels for user login; Unknown multicast packets are not sent to the CPU, and unknown unicast packets can be suppressed.
Ağ Yönetimi ve Bakım	Console/AUX Modem/Telnet/SSH2.0 CLI configuration; File upload and download management using FTP, TFTP, and Xmodem; SNMP V1/V2c/V3; RMON; CWMP; GRPC; Fault alarm and auto-recovery; System operation logging; sFlow; SPAN; RSPAN; ERSPAN; VLAN mirroring; Web-based NMS
Energy-Saving Design	IEEE 802.3az Energy Efficient Ethernet

Temel Özellikler
Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Sistem Paket İletim Hızı	12000 Mpps
Sistem Anahtarlama Kapasitesi	16000 Gbps

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-S7810C hakkında kısa yanıtlar.

RG-S7810C fiyatı ne kadar?

RG-S7810C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
