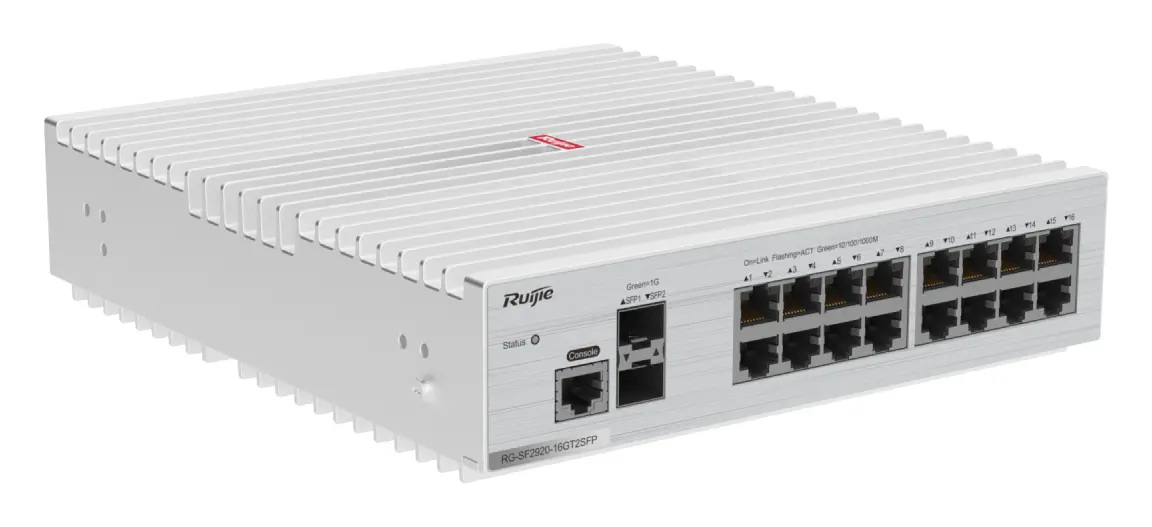

RUIJIE · RG-SF2920-16GT2SFP Ruijie RG-SF2920-16GT2SFP 16 Port Gigabit 2×SFP Yönetilebilir Switch

Ruijie RG-SF2920-16GT2SFP 16 Port Gigabit 2×SFP Yönetilebilir Switch

Q: RG-SF2920-16GT2SFP kaç portlu?

RG-SF2920-16GT2SFP 16 porta sahiptir ve 2 adet SFP uplink portu bulunur.

Q: RG-SF2920-16GT2SFP fiyatı ne kadar?

RG-SF2920-16GT2SFP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRG-SF2920-16GT2SFP

Ruijie RG-SF2920-16GT2SFP, 16 portlu gigabit bir yönetilebilir switch'tir. 2 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 16 port

Various port combinations, rate increase, surge protection greater than 8 kV, 16 x 10/100/1000BASE-T ports , and 2 x 1GE SFP ports for uplink
Small size, flexible and fast installation, efficient heat dissipation, and low noise
Reliability enhancement, metal enclosure, metal Ethernet ports, independent optical transceiver design, and more stable data forwarding
Easy and effective network-wide management, ensuring high security and reliability for networks

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-SF2920-16GT2SFP özellikleri ve kullanım alanları.

Various port combinations, rate increase, installation in a concealed telecommunication box, recommended for indoor use, aesthetically pleasing design, and security

All-Optical Ethernet Switch RG-SF2920-16GT2SFP

The Ethernet architecture and novel Fiber-to-the-Room (FTTR) deployment delivers 1G fiber-to-the-room access. This switch provides 16 x 10/100/1000BASE-T ports, 2 x 1GE SFP uplink ports, rich interfaces, supporting full service expansion.

Ports

Dimensions

Small Size, Space Saving, Aesthetically Pleasing Design, and No Security Concern

Flexible Installation

Heat Dissipation Design

Quietness

This compact switch comes with various mounting brackets to suit different environments. It can be flexible installed under a workbench, on a wall, in a customized cabinet or in a concealed ELV box.

The new shark fin design and die-casting enclosure increase the dissipation area by 37%. This switch can be fit into an ELV box safely and neatly.

Fanless design, noise < 20 dB, barely perceptible to the human ear.

Enhanced Reliability, Independent Optical Transceiver Design, and More Stable Data Forwarding

In the traditional POL optical solution, ONUs use an on-board optical transceiver design. However, there is a trade-off between the signal quality and welding reliability, resulting in a high failure rate. The Simplified Optical Ethernet solution adopts point-to-point transmission and provides a more reliable independent optical transceiver design. The high-quality signal transmission is free from external interference and data forwarding is more stable.

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri
Sabit Servis Portları	16 x 10/100/1000BASE-T ports; 2 x 1GE SFP ports
Sabit Yönetim Portu	1 x RJ45 console port

Sistem Özellikleri
Sistem Paket İletim Hızı	26.8 Mpps
Sistem Anahtarlama Kapasitesi	36 Gbps
İşlemci (CPU)	Single-core CPU, with the clock speed of 1 GHz
Flash Bellek	256 MB
Bellek	512 MB DDR3
Switch Tampon Belleği	1.5 MB
MAC Adres Sayısı	Number of global MAC addresses: 16,000; Number of static MAC addresses: 1,000
ARP Tablosu Boyutu	1,000
Number of IPv4 unicast routes	500
Number of IPv6 unicast routes	500
Number of ACEs	Ingress: 1,500; Egress: 500

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	210 mm x 235 mm x 55 mm (8.27 in. x 9.25 in. x 2.17 in.)
Kutu Boyutları (G x D x Y)	529 mm x 336 mm x 334 mm (20.83 in. x 13.23 in. x 13.15 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	1.98 kg (4.37 lbs)
Kutulu Ağırlık	2.75 kg (6.06 lbs)

Güç Kaynağı ve Tüketim
Güç Kaynağı	1 x fixed power module
Güç Girişi	AC input; Rated input voltage: 200 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 0.6 A
Maks. Çıkış Gücü	Fixed power supply: 25 W
Maks. Güç Tüketimi	25 W
Energy saving	Energy Efficient Ethernet (EEE)

Ortam ve Güvenilirlik
Ortam ve Güvenilirlik	RG-SF2920 Series
Sıcaklık	Operating temperature:; ELV box: 0 to 40℃ (–32°F to +104°F); Workbench/Wall: 0 to 40℃ (–32°F to +104°F); Rack: 0 to 45℃ (–32°F to +113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF	300,000 hours (about 34 years)
Fan	Fanless
Isı Dağılımı	Fanless design, natural heat dissipation
Cable hot swapping	Supported by all ports
Sıcaklık İzleme	Temperature monitoring, over-temperature alarming
ESD Koruması	Air discharge: 15 kV; Contact discharge: 8 kV
Aşırı Gerilim Koruması	Service port: 8 kV; Power port: common mode 6 kV, differential mode 6 kV

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

RG-SF2920
Ethernet Anahtarlama	Jumbo frame length: 9,216 bytes; IEEE 802.3az EEE; Maximum number of VLANs that can be created: 4,094; Voice VLAN; Private VLAN; MAC VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and flexible QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032) with switching time ≤ 50 ms; LLDP/LLDP-MED
IP Servisleri	DHCP server, DHCP client, and DHCP snooping; DNS; DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; Neighbor Discovery (ND)
IP Yönlendirme	Static routing; Static blackhole routing; RIP v1/v2 and RIPng; OSPFv2 and OSPFv3; GR
Multicast	IGMPv1/v2/v3 snooping; IGMP fast leave
ACL ve QoS	Standard IP ACLs (IP-based hardware ACLs); Extended IP ACLs; Extended MAC ACLs; Expert-level ACLs; ACL80 and IPv6 ACLs; ACLs on Layer 2 and Layer 3 interfaces; Applying ACLs globally (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range); ACL redirection; Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR,
Güvenlik	RADIUS and TACACS+; RADIUS authentication and authorization; IEEE 802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1.5 and SSHv2.0; Global IP-MAC binding; ICMP (discarding ICMP packets of which the rate exceeds the threshold on an interface); Port security; BPDU guard; Filtering of invalid MAC addresses; Broadcast storm suppression; Hierarchical mana
Güvenilirlik	REUP; Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; Load balancing; LACP dynamic aggregation; The LACP priority, negotiation mode, and maximum number of ports that can be aggregated can be configured.; Cross-VSU aggregate interface; DLDP; IPv4 VRRP v2/v3, IPv6 VRRPv3; GR for OSPF
Ağ Yönetimi ve Bakım	SPAN, RSPAN and ERSPAN; Flow- and VLAN-based SPAN; 1:1 mirroring, N:1 mirroring, and 1:N mirroring; Cross-device traffic mirroring; sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios); NTP and SNTP; FTP and TFTP; SNMP v1/v2c/v3; RMON (1, 2, 3, 9); CLI (Telnet/console), Syslog/debugging, and web; Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, a
PoE	RG-SF2920-16GT2SFP-P, RG-SF2920-8GT2MG2XS-P, and RG-SF2920-16GT2MG2XS-P:; RJ45 ports in compliance with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W); Automatic and energy-efficient power supply management modes; Warm start to implement uninterrupted power supply; Port priority

Temel Özellikler
Sistem Paket İletim Hızı	26.8 Mpps
Sistem Anahtarlama Kapasitesi	36 Gbps
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F)
Warranty period	3 years

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-SF2920-16GT2SFP hakkında kısa yanıtlar.

RG-SF2920-16GT2SFP kaç portlu?

RG-SF2920-16GT2SFP 16 porta sahiptir ve 2 adet SFP uplink portu bulunur.

RG-SF2920-16GT2SFP fiyatı ne kadar?

RG-SF2920-16GT2SFP için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
