Yönetilebilir Switch RG-CS61

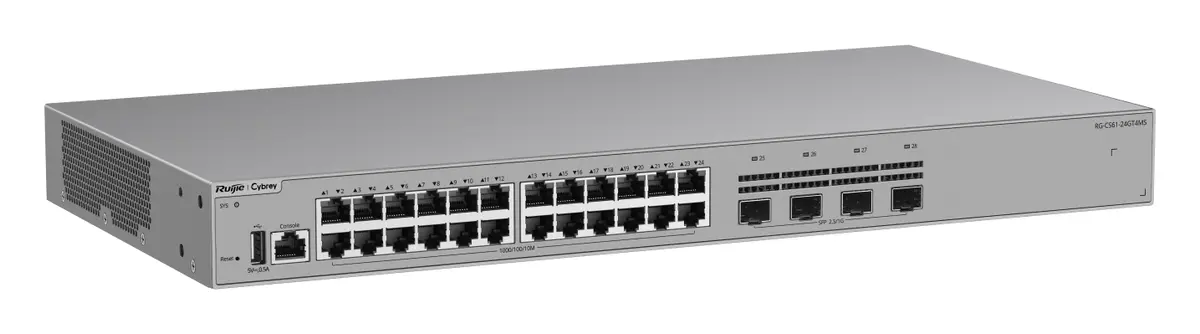

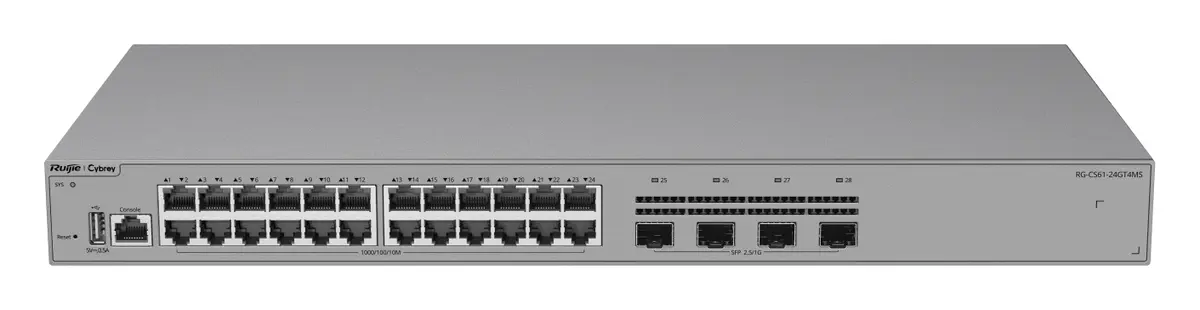

Ruijie RG-CS61-24GT4MS 24 Port Gigabit 4×2.5G SFP L3 Yönetilebilir Switch

ModelRG-CS61-24GT4MS

Ruijie RG-CS61-24GT4MS, 24 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 24 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

2.5G uplinks
10 kV port surge protection
Supports operating temperatures up to 50°C
Dual flash, dual boot, and dual bin
Circuit isolation protection based on optical ports
Supports up to 8 devices in a VSU
Layer 3 service features

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 94 satır

Sabit Servis Portları	24 x 10/100/1000BASE-T ports; 4 x 1GE/2.5GE SFP ports
Konsol Portu	1
USB	1
Anahtarlama Kapasitesi	68 Gbps (Gbit/s)
İletim Hızı	50.59 Mpps
Packet buffer size	12 Mbit
İşlemci (CPU)	Dual-core ARM A55 CPU frequency up to 1.0 GHz
SDRAM	2 GB
Flash Bellek	512 MB
BootROM	16 MB
Gerçek Zamanlı Saat (RTC)	Evet
Cihaz Boyutları (G x D x Y)	442 mm x 222.8 mm x 43.6 mm (17.4 in. x 8.77 in. x 1.72 in.)
Kabin Yüksekliği	1 RU
Packaging dimensions (W x D x H)	540 mm x 340 mm x 153 mm (21.26 in. x 13.39 in. x 6.02 in.)
Cihaz Ağırlığı	2.60 kg (5.73 lbs)
Packaging weight	3.60 kg (7.94 lbs)
Besleme Modu	1 x fixed power supply
Maks. Güç Tüketimi	110 V: 22.407 W; 220 V: 22.163 W
Güç Girişi	AC input; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 0.6 A
PoE	-
PoE-out Port Sayısı	-
PoE Bütçesi	-
Port Başına PoE Bütçesi	-
PoE power cable pairs	-
Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)
Depolama Nemi	5% RH to 95% RH (non-condensing)
Çalışma Rakımı	0 m to 5000 m (0 ft. to 16,404.20 ft.)
Soğutma	Natural cooling
Fan	Fanless design
Gürültü	-
Fan speed adjustment	-
Hot swapping of cables	Evet
USB hot swapping	Evet
Aşırı Gerilim Koruması	Service port: ±10 kV for common mode; Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD prevention	Contact discharge: 6 kV; Air discharge: 8 kV
Temperature monitoring and protection	Temperature monitoring, temperature alarm, and over-temperature protection
Fan İzleme	-
MTBF	> 400,000 hours
Energy efficiency	Evet
Güvenlik Standartları	IEC 62368-1 EN 62368-1
EMC Standartları	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11
Garanti	5 years
VLAN	IEEE 802.1Q; Port-based VLAN; MAC-based VLAN; Voice VLAN; IP/Subnet-based VLAN; Protocol-based VLAN; Private VLAN; Super VLAN; GVRP
Spanning tree	IEEE802.1d STP; IEEE802.1w RSTP; Standard 802.1s MSTP
LLDP	LLDP; LLDP-MED
Basic QinQ	Basic QinQ; Transparent transmission of double-tagged packets
ARP	ARP; anyIP
ND	Neighbor discovery
VRF	IPv4 and IPv6 VRF
Static routing	IPv4 static routing; IPv6 static routing
OSPF	OSPFv2 basics; OSPFv3 basics
RIP	RIP; RIPv2
IGMP snooping	IGMP snooping v1/v2; IGMP snooping v3
IGMP	IGMPv1/v2/v3; IGMP proxy
MLD snooping	MLD snooping; MLD snooping v2
MLD	MLDv1/v2
PIM-SMv4	PIM-SMv4; PIM-SSMv4
ACL	IP standard ACL; IP extended ACL; MAC extended ACL; IPv6 ACL; Expert ACL; Time-based ACL; ACL-based redirection; ACL80
QoS	Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; SP; WRR; SP+WRR; DRR; SP+DRR; WFQ; SP+WFQ; Congestion avoidance: tail drop; Traffic shaping (ingress/egress)
802.1X	Port-based authentication; MAC-based authentication
VSU Sanallaştırma	Device virtualization
VRRP	IPv4 VRRPv2; IPv4 VRRPv3; IPv6 VRRP
VRRP+	IPv4 VRRP+; IPv6 VRRP+
BFD	BFD detection
Aggregate interface	LACP basics
Mirroring	SPAN; RSPAN
SNMP	SNMPv1/v2c/v3; RMON (1, 2, 3, 9)
SSH	SSHv2; SSHv1
PoE	-
DHCP	DHCPv4 client; DHCPv4 server; DHCPv4 relay; DHCPv4 snooping; DHCPv6 client; DHCPv6 relay; DHCPv6 snooping
USB	USB 2.0
Maximum number of created VLANs	4094
Jumbo frame length / Port MTU	9216
Layer 2 traffic convergence time	≤ 200 ms
Maks. ARP Kaydı	4000
IPv4 routing table size	6000
IPv6 routing table size	2000
Maximum number of IPv4 multicast routing table entries	1000; Number of multicast groups x Number of outbound interfaces ≤ 1000
Maximum number of IPv6 multicast routing table entries	900
Maximum number of inbound ACE entries	1750
Maximum number of outbound ACE entries	800 (The capacity can reach 800 when only Layer 2 match fields, excluding inner tags, are used. If other match fields are added, the capacity may decrease to 350.)
Maximum number of QoS hardware queues	8 (shared by unicast and multicast traffic)
Maks. VSU Üye Sayısı	8
Main unit	1
Power cord	1
Rack-mount bracket	2
Screw	6 x M4 x 8 mm screws
Rubber pad	4
Grounding wire	1
Power cord retention clip	1
User Manual	1
Warranty Card	1

RIPng 1 satır

PBR	IPv4 PBR; IPv6 PBR

PIM-DMv4 1 satır

PIM-SMv6	PIM-SMv6; PIM-SSMv6

AAA 1 satır

Web-based authentication	HTTP-based authentication; HTTPS-based authentication

SAVI 1 satır

Global IP-MAC binding	Configuring global IP-MAC binding entries

TACACS+ 1 satır

CPP	Hardware CPP

sFlow 1 satır

gRPC	gRPC framework

ND snooping 5 satır

DNS	DNS client; DNSv6 client
NTP	NTP client; NTP server
SNTP	SNTP client; SNTP
FTP	FTP client; FTP server
TFTP	TFTP client; TFTP server

Genel bakış

Ruijie RG-CS61-24GT4MS kullanım alanları ve özellikleri.

Offices, hotels, warehouses, hospitals, and schools.

RG-CS61-24GT4MS Layer 3 Access Switches with 2.5G Uplinks

Access Switches with 2.5G Uplinks

Equipped with 2.5G uplinks, access switches provide higher bandwidth than traditional 1G uplinks while keeping cost under control.

8-unit stacking for flexible expansion helps maintain continuous service during device failures.

Dual-boot & Dual-bin

Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.

Area-based Port Power Supply

When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.

Layer 3 Capabilities

Access switches with Layer 3 capabilities, including OSPF and 6,000 route entries, help contain the impact of network failures and enable faster recovery than traditional Layer 2 access switches.

10 kV Surge Protection & 50°C Operation

Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

M4 x 8 mm screws

Power cord retention clip

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Cybrey Cloud, Make Your Business Easy

MAC Address Management

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS61-24GT4MS Compliance DocumentPDF · RG-CS61-24GT4MS

Sık sorulanlar

RG-CS61-24GT4MS hakkında kısa yanıtlar.

RG-CS61-24GT4MS kaç portlu?

RG-CS61-24GT4MS 24 porta sahiptir.

RG-CS61-24GT4MS fiyatı ne kadar?

RG-CS61-24GT4MS için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
